Home > Products > Upholstery/Garments/Texile > Hangzhou IECHO LCP Leather material automatic cutting machine

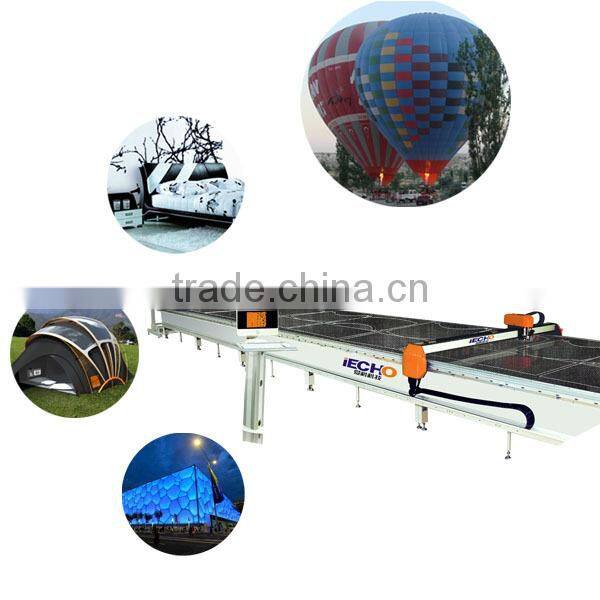

Hangzhou IECHO LCP Leather material automatic cutting machine
- 20 Set / Sets per Month
- Shanghai/ Ningbo
- T/T
- high efficiency waste cloth cutter fiber cutting machine rag cutter
- HOT!!Rags cutting machine/old cloth cutting machinery for sale (Skype:taizy2037)
- fiberglass chopping machine/Cloth mill machine /textile recycling machine
- New Type Automatic fibre textile cutting machine rag cutter machinery
- Ultrasonic fabric cutting machine
- Handheld Ultrasonic Fabric Textile Cutting Machine
Product Details
Condition: | New | Application: | Cloth cutting | Automatic Grade: | Automatic |
Production Capacity: | 1.5M/S | Place of Origin: | Zhejiang, China | Brand Name: | iEcho |
Model Number: | BK series | Voltage: | 220V±10% 380V±10% | Power(W): | 7.5KW |
Dimension(L*W*H): | Custmized | Certification: | CE ISO9001 | Warranty: | 1 year. |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Leather automatic digital cutter
1.System Components
BK cutting system includes electrical control box, cutting main body, pump, air compressor and other accessory parts.
According to customer's requirements, we will configure the following one tool or several tools: tangential knife, oscillating knife, driven rotary knife, V-cut, creasing wheel, punching knife and CNC router.
2.Technical Parameters
Cutting Effective Area | 2.5m×1.6m;1.7m×1.3m |
Max. External Dimension | 3.32m×2.46m;2.52m×2.16m |
Max. Cutting Speed | 1.8m/s |
Cutting Accuracy | 0.1mm |
Max. Cutting Thickness | 50mm(According to customer's materials) |
Data Formats | DXF, HPGL |
Memory | 8M |
Working Voltage | AC power 380V±10%, 220V±10%,50HZ |
Fuse Specification | 10A |
Cutting System Power | 1.5KW |
Drive Motor | Servo Motor |
Pump Vacuum | -25KPa |
Pump Power | 9.5KW;7.5KW |
Environment | Temperature -0°C-40°C,Humidity20%-80%RH |
Noise Level | 60db |
3.Functions and structures.
a.Suction device.
b.Motor depth control.
c.Imported spare parts.
d.Security system.
e.Control panel.
4.Usage.
SIGN & ADVERTISING INDUSTRY
BK cutting system supplies the total solution to sign & advertising industry,especially suited to registration cutting of white cardboard,sticker,acrylic,PVC,corrugated board and honey comb board, the system has improved the process flow of sign & advertising companies,accelerated production efficiency and enhanced product quality.
PACKING INDUSTRY
Common carton sample cutting machine only meets the former sample making process, while iEHCO BK carton cutting system meets small production requirement, which can cut all kinds of packaging materials easily, such as corrugated board, white cardboard, grey cardboard and PVC, maximizes the possibility of rapid completion of orders for the printing and packaging factories.
AUTOMOBILE UPHOLSTERY
BK cutting system has been applied to cutting automobile upholstery successfully, such as automobile mat, car seat, cover, sun block and car curtain.
COMPOSITES
iECHO BK cutting system replaces the traditional composites manufacturing mode, such as drawing lines and cutting yarn, especially fo the complicated allotypic patterns, it can advance at least 20 times efficiency, gurantee controllability of carbon fiber, glass fiber , aramid fiber, UHMW polyethyene etc, and reduce the labor cost greatly.
....
