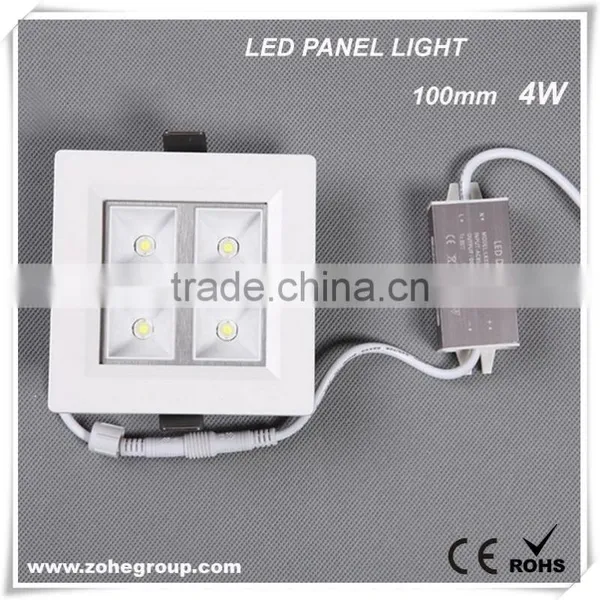

J28 SQUARE ARRAY 4 LIGHTS 10CM 4W LED PANEL LIGHT
- 30000 Piece / Pieces per Month
- shanghai/ningbo/guangzhou
- T/T Credit Card
You May Like
-
J28 SQUARE ARRAY 25 LIGHTS 21.7CM 25W LED PANEL LIGHT
-
Good Price Round LED Panel Light J18 4W Made In China
-
New 9W High Brightness LED Panel Light With CE&RoHS led lighting
-
Suqare Led Panel Light 16W
-
Square Series 4W/9W/16W/25W LED Panel Light aluminum composite panel
-
Small SMD 2835 square led panel light
Product Details
LED Light Source | SMD 3535 | Warranty(Years) | 2 | |
Input Voltage(V) | AC85-265V | Lamp Power(W) | 4 | |
Lamp Luminous Flux(lm) | 360 | Lamp Luminous Efficiency(lm/w) | 90 | |
Color Temperature(CCT) | Other, 2700-6500K | Working Temperature(℃) | -20, 55 | |
Working Lifetime(Hour) | 10000 | Lamp Body Material | Aluminum | |
IP Rating | IP33 | Certification | CE | |
Place of Origin | Zhejiang, China | Brand Name | ZHOUHE | |
Model Number | ZH-Z1004-1 |
Product Description
LED PANEL LIGHT
*Led Panel Light Specification*
Item No: | ZH-Z1004-1 |
Item Name: | J28 SQUARE ARRAY 4 LIGHTS 10CM 4W LED PANEL LIGHT |
Lamp Power: | 4W |
Dimensions: | 100mm*100mm |
Cutout Size: | 90mm*90mm |
Material: | Aluminum |
Lamp Luminous Flux: | 85-95 lm/pc |
Input Voltage: | AC85-265V |
Output Voltage: | DC5-14V |
Frequency Range: | 50HZ-60HZ |
LED Type: | HIGH POWER LEDS 1W |
LED QTY: | 4pcs |
Color Temperature: | 2700-6500K |
Lamp Luminous Efficiency: | 90 lm/w |
Output Current | 300mA±5% |
Warranty: | 2 years |
Certification: | CE & RoHs |
TC: | 85°C |
TA: | 40°C |
MODEL NO.: | LK078CA(2-4)*1W |
*Packing Information*
Single Packing | Box Size (CM*CM*CM) | Pcs/Ctn | Ctn Size (CM*CM*CM) | N.W. (PC/KG) |
1pc/color box | 12.5*11.5*4.5 | 50 | 57*22*34 | 0.21 |
*Features*
1. Saving up to 90% energy compared to traditional incandescent bulbs.
2. 50 times longer life than incandescent bulbs,
3. Superb heat radiator and international renown brand LED source combination assure quality.
4. Constant lighting protects your eyes.
5. No interference with TV, Radio or other wireless devices.
6. Instant lighting
*Attention*
1. The product should be installed by trained electricians.
2. Product and flammable materials to ensure at least 0.2m distance, to ensure that the installed zenith There are 2 centimeters high gap, lamps are installed in the ceiling which cannot be.
3. Non professional personnel shall not disassemble, repair, I have the right to dismantle, repair Products for replacement or warranty service.
*LED Panel Light Application*
1. Conference/meeting rooms
2. Factory & office
3. Commercial purposes
4. Residential & institution buildings
5. Schools, colleges& universities
6. Supermarket lighting
*Pictur Show*
*Product series*
*About Us*
Yiwu Zhouhe Import & Export Co., Ltd. is one of the largest export company in Yiwu with over 10 years of experience in export supply.Producing all kinds of LED Light ,Electric Mosquito Swatter, LED Flashlight, Solar Light etc.We can do OEM the material, the size, the quality, etc. according to your requirements. We not only supply the good quality, but also supply you best service for you.
*Trade Term*
1. Payment: T/T (Western Union or Paypal are welcomed)
2. Production lead time for 100~500pcs: 5-7days, 500~1000pcs: 7-15days
3. Sample can be delivered in 3days
4. Shipping freight are quoted under your requests
5. Shipping port: Ningbo/Shanghai, Mainland China
6. Discounts are offered based on order quantities
7. MOQ: 100pc welcome sample order
*Our Service*
1.Your inquiry related to our products or price will be replied within 24 hours.
2.All your inquiries will be well explained by our experienced staff.
3.OEM & ODM,also provide customized service
4.Distributorship is available for your unique design and some our current models.
5.We will keep secret for customer sale area,design ideas and all other private information
Dear sir/madam:
Thank you so much for reading aboved information.We are also available to offer different size and power LED PANEL LIGHT and other LED LIGHT.
If you want to know more about other LED LIGHT, please go to our website: or inquiry us now!
