High Quanlity Fireproof Stove, Firebrick
Negotiable
MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Ossin Stone
Model Number:
FBP-02
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quanlity Heat Insulation Stove/Fireplace Vermiculite Brick Panel, FirebrickNegotiableMOQ: 500 Pieces -
High Quanlity Fireproof Stove/Fireplace Vermiculite Brick Panel, FirebrickNegotiableMOQ: 500 Pieces
-
COBBLED BRICK SLIPS MULTI COLOURSUS$ 0.1 - 0.5MOQ: 5000 Pieces
-
Brick SlipsUS$ 0.1 - 0.5MOQ: 1000 Pieces
-
Brick SlipsUS$ 0.1 - 0.5MOQ: 1000 Pieces
Place of Origin
Hebei, China
Brand Name
Ossin Stone
Model Number
FBP-02

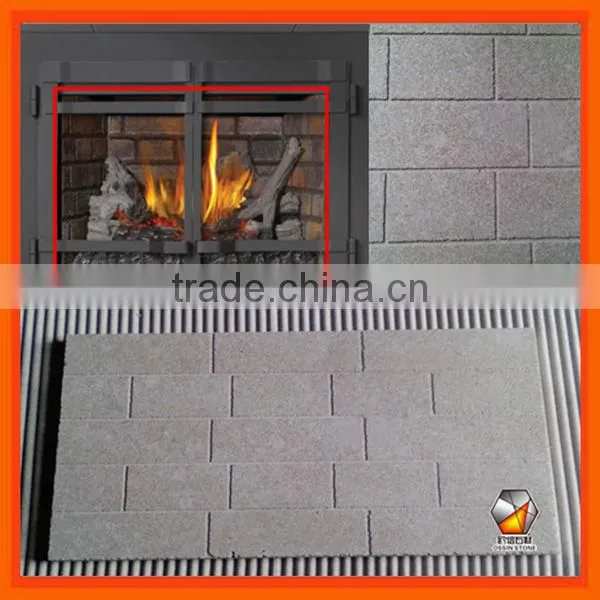

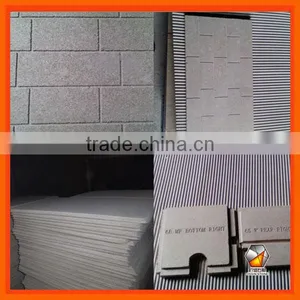

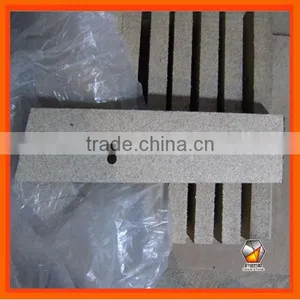

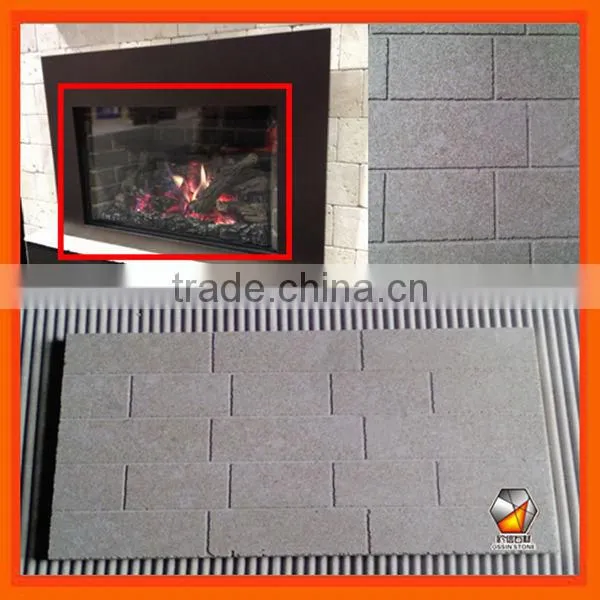

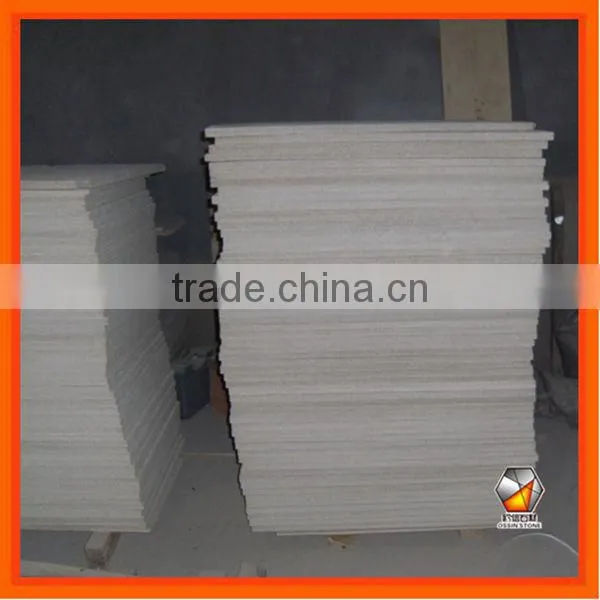

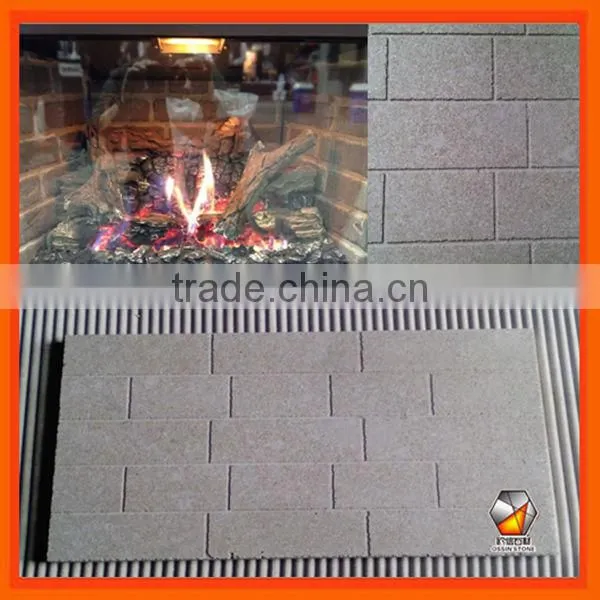

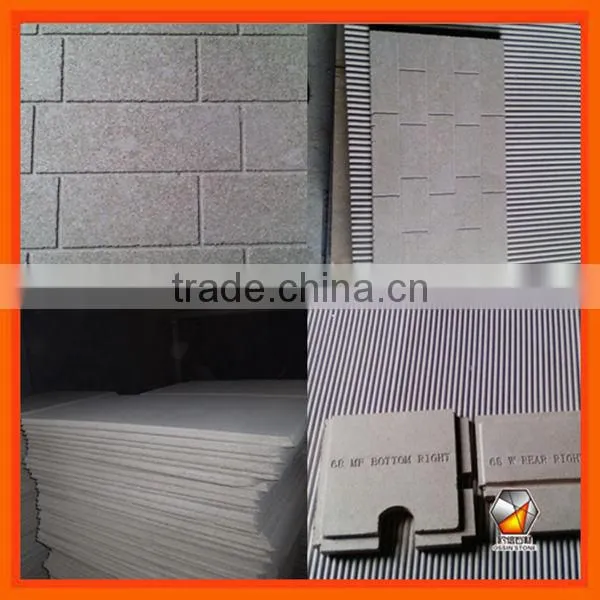

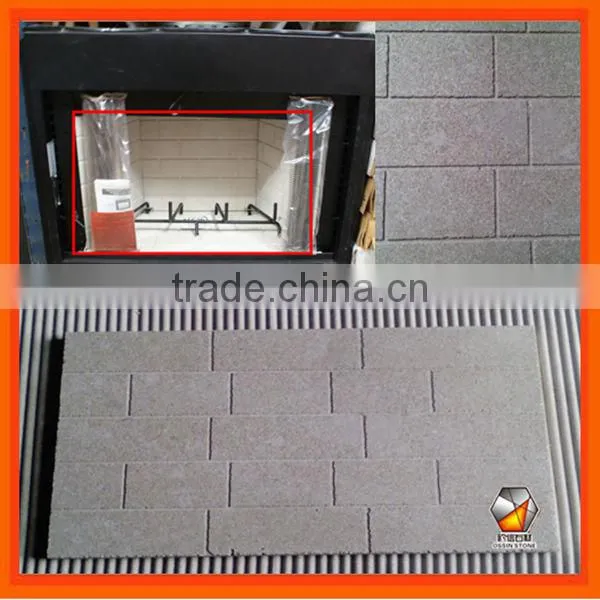

Durable Decorative Fireproof Stove/Fireplace Vermiculite Brick Panel
A Vermiculite panel is a good choice as a fireplace panel because they not only hold heat in, but they also reflect the heat so that the fireplace is even more powerful. The material vermiculite is fast becoming very popular to use in fireplaces because it can be made in a mold to fit almost any size, pattern or shape of the interior of a fireplace. They are also considered to be an affordable solution as a replacement fireplace panel and will help to keep the fireplace running optimally for years to come.
Characteristics:
- A1 Grade non-combustible fire rating.
- Heat insulation and preservation.
- Sound insulation.
- Moisture adjustment.
- Environment friendly, non-toxic and zero radioactivity, non-asbestos.
- Easy to cut and shape with woodworking tools.
Specification | |||
| Maximum service temperature |
Celsius degree (Fahrenheit degree) |
1100 (2012) |
|
| Bulk Density,dry | KG/M3 | 600-1100(available range) | |
| Cold crushing strength | Mpa | 2.0-7.2 | |
| Modulus of rupture | Mpa | 1.31-5.19 | |
| Linear reheat shinkage | |||
| 12h # 900 degree celsius | % | <1.0 | |
| Mean temp. | @200 | W/(mxK) | 0.15-0.18 |
| @400 | W/(mxK) | 0.17-0.20 | |
| @600 | W/(mxK) | 0.19-0.22 | |
| @800 | W/(mxK) | 0.20-0.23 | |
| Standard size and thickness | Thickness | 20,30,35,40mm | |
| Length and width | 220x110mm,330x220mm,2100x900mm & 1000x610mm etc. | ||
| Other sizes are available upon request | |||
| Chemical Analysis | SiO2: 53.39% | ||
| Al2O3: 11.22% | |||
| Fe2O3: 3.41% | |||
| TiO2: 0.73% | |||
| CaO:1.53% | |||
| MgO: 13.98% | |||
| K2O:4.05% | |||
|
Na2O: 6.90% | |||
