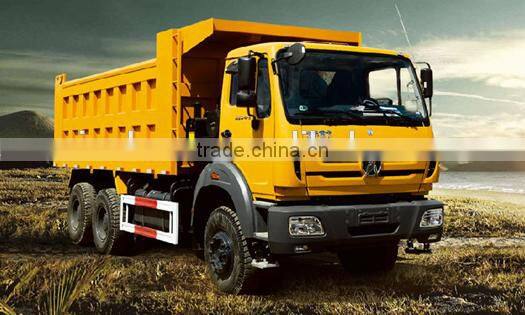

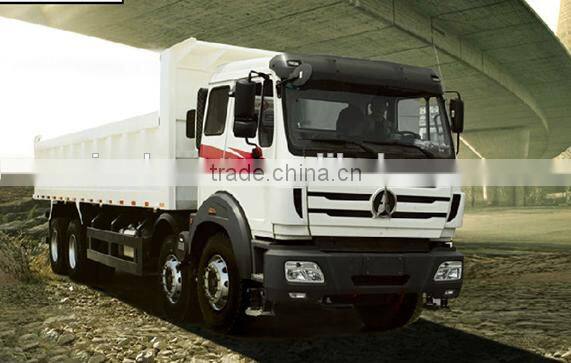

Help CenterReliable Engine BEIBEN 40Ton Dump Truck/Sand Dump Truck
Related Products
-
Brand New BEIBEN 4x2 6Wheel Tractor Head/Tractor Trailer TruckUS$ 30,000 - 40,000MOQ: 1 Set -
High Load BEIBEN 4x2 Tractor Truck For Sale/Trailer Head TruckUS$ 30,000 - 40,000MOQ: 1 Set
-
Reliable Engine BEIBEN 4x2 Tractor Truck /Tractor Trailer Truck For SaleUS$ 30,000 - 40,000MOQ: 1 Set
-
Famous Brand BEIBEN 6 Wheel Tractor Head/Trailer Head TruckUS$ 30,000 - 40,000MOQ: 1 Set
-
Best Price BEIBEN 4x2 Tractor Truck/Tractor Head TruckUS$ 30,000 - 40,000MOQ: 1 Set
Overall Dimension (mm×mm×mm) |
8530×2500×3390 |
|||
Wheel base (mm) |
3800+1450 |
|||
Curb weight (kg) |
12200 |
|||
Max Speed:(Km/h) |
≥80 |
|||
Dimension for Upper body: |
5600*2300*1500mm Sand body |
|||
HYVA Lifting system,Bottom 8 mm,side 6 mm,Front Lifting | ||||
|
Engine
|
Model |
WD12.420,water-cooled,four strokes,6 cylinders straight in line,turbocharged, |
||
Fuel type |
Diesel |
|||
Emission |
EUROⅡ |
|||
Displacement(ml) |
11596 |
|||
Fuel tanker capacity (L) |
400 |
|||
Clutch |
Model |
Φ430, Diaphragm Spring,Hydraulic boosting |
||
|
Gearbox |
Model |
12JS200T,mechanism,12 forward gears,2reverse gear, manual operated, with synchronizer |
||
Gear ratio of speed |
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/ 2.10/1.64/1.28/1.00 R1: 14.86 R2: 3.33 |
|||
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
||
Assistant brake |
Engine exhaust brake |
|||
Park brake |
Potential springs pressing on middle and rear wheels |
|||
Steering system |
Model |
ZF8098, whole circulation in ball type, hydraulic boosting |
||
Suspension system |
Rear Suspension |
Non-free standing stabilization spring, stabilization suspension, 13pcs |
||
|
Frame
|
Fish belly shape, variable width, variable sections 317*70*8.5+7mm |
|||
Front axle |
Double-shoe pneumatic brake, non-driving steering axle AL7/1DS-7 |
|||
Middle and Rear axle |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle Middle axle: HD7/016DGS-13/ 5.263 Rear axle: HL7/015DS-13 |
|||
Tire |
12.00R20 radial tire |
|||
Qty of tire |
11 |
|||
Electrical system |
Battery |
2X12V/135Ah |
||
Generator |
28V-35A |
|||
Starter |
5.4Kw/24V |
|||
|
Cab
|
Short cab, Full steel skeleton structure, covered with double layer steel plate;
|
|||
|
Interior trimming: High back/shock absorption seat for driver. Inner A/C, Steering wheel can be adjusted. Manual door locks, manual glass lift | ||||
|
Exterior trimming: NG80B front grid plate, Metal bumper, three steps, sun visor, new mirror system.
| ||||
1.What's your MOQ?
Our minimum Order Quantity is one unit.
2.What's yoru delivery time ?
Usually we can delivery the truck within 40 days according to our production arrangements.
3.Where is your loading Port ?
We can choose Tianjin , Qingdao Port.
4.Which kind of import documents can you supply to us for our import ?
We can provide all kinds of documents for your convenient import,such as commercial invoice,packing list ,contract,B/L.and According to the buyer nation,we can also supply some specific documents for your import,such as:
*CIQ certificate
*CNCA certificate
*GCC certificate
*GOST certificate
*Commercial Invoice Certificate,etc.
1 High quality with competitive service.
2 Good after sale serivice.
3 Long serving Time.
4 High reputation at home and abroad.
5good performance and realibility.
