SAFM-800A Automatic Laminator Machine for Sale
Features:
1. Suitable for glueless film and thermal film.

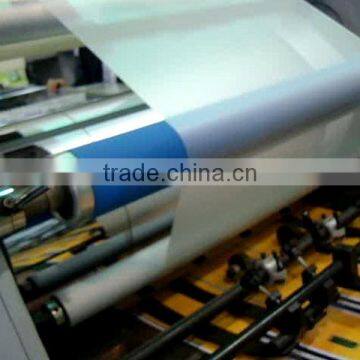

2. Composed of feeding system, laminating system and cutting system and paper
collecting and rewinding system.

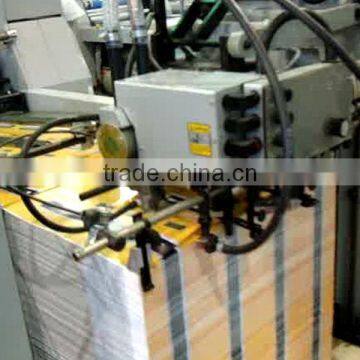

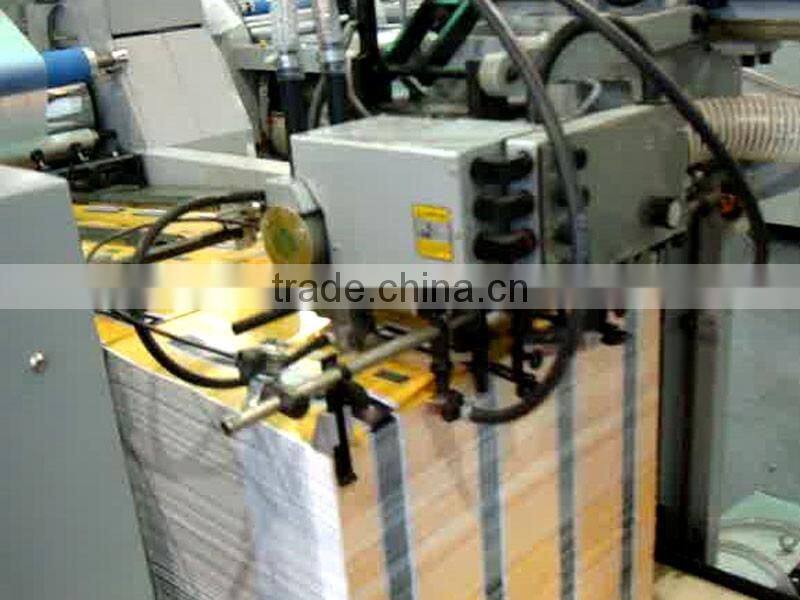

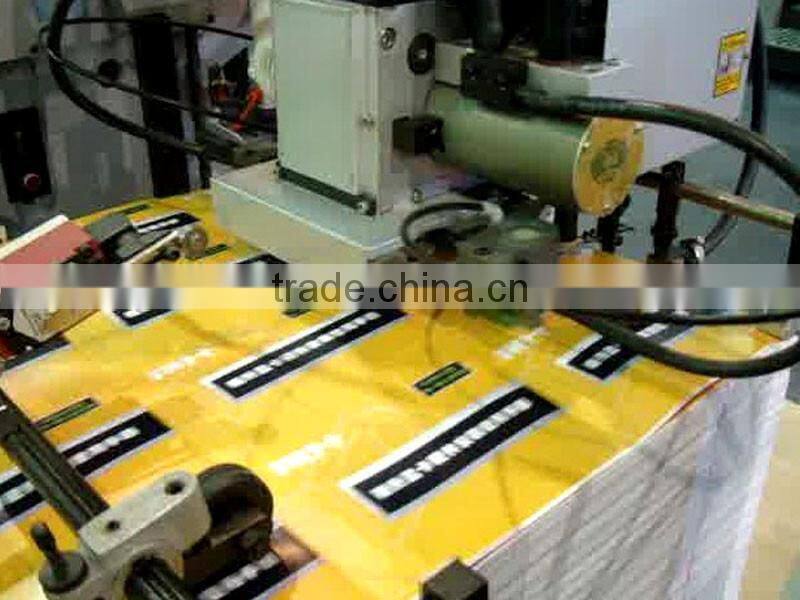

3. Automatic paper feeder with oil-free vacuum pump to ensure the automatic paper
feeding.
4. Photoelectric controlled protector makes an automatic stop of the machine when it
detects paper shortage and paper breaking.

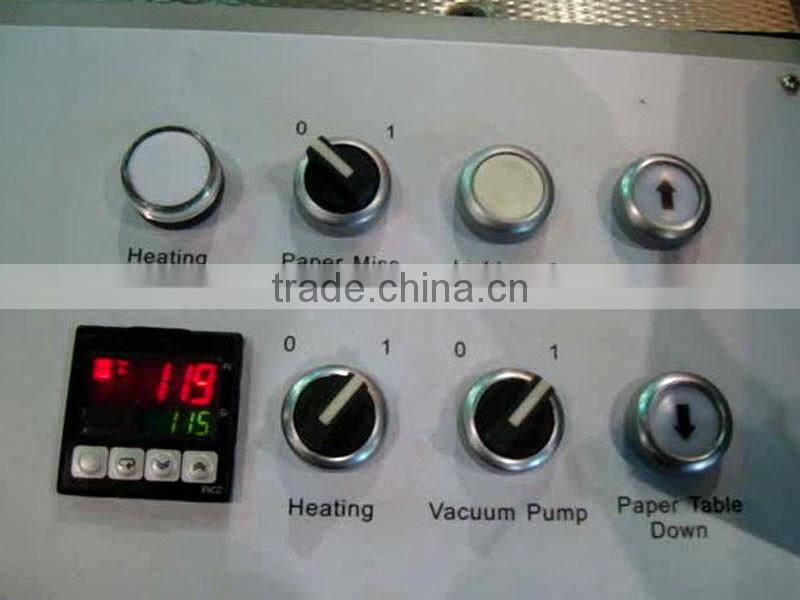

5. The electric and pneumatic device are controlled by PLC.

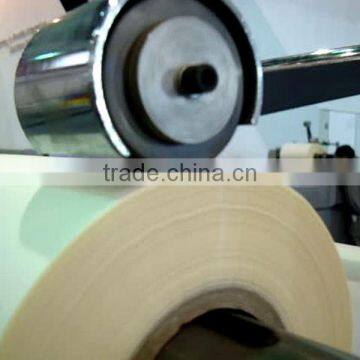

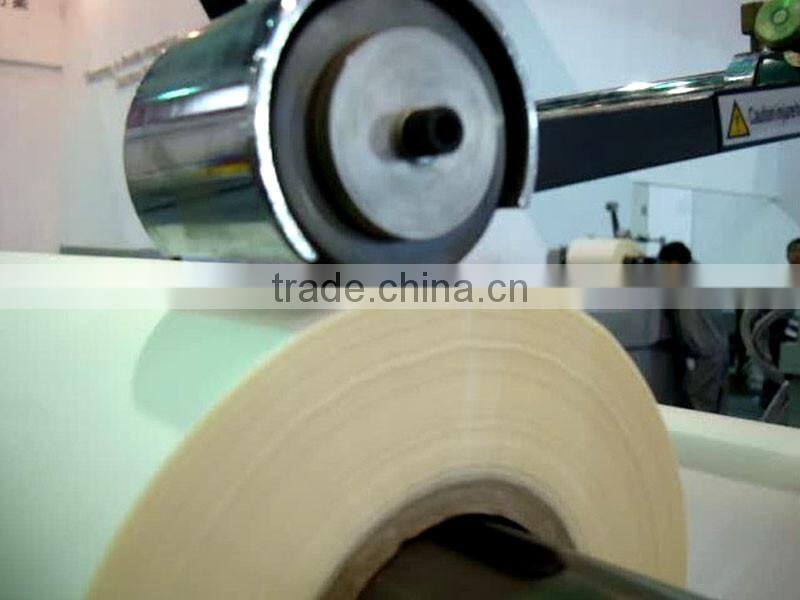

6. High precision chromed heating roller is with built-in oil heating system that ensures
an excellent constant temperature.
7. Air shaft equipped with braking device that is easy to release the film at a proper
tension and speed, and convenient for film loading and unloading, also ensures a
accurate film location.
8. Film cutter is used to wide cut the film to fit the size of paper.
9. Film perforating wheel is used to perforate the film edge to make the automatic
cutting of laminated paper to be much smoother.
10. Anti-curved device ensures a smooth laminated surface.
Technical specifications:
Model |
SAFM-800A |
Max. paper |
780 x 1040mm |
Min. paper |
350 x 300mm |
Laminating speed |
0-45 m/min |
Paper thickness |
125-500g/sqm |
Power |
21kw |
Overall dimensions |
1800kg |
Machine weight |
3900 x 1630 x 1650mm |
Introduction:
KFMG series automatic laminating machines are designed for the thermal film and glue-less film laminating. The machines are with
automatic feeder, laminating, cutting, stacking and temperature controlling system. Electricity system can be controlled by the
programmable controllers with the touch screen. Heating roller is built-in oil system. Also the machines are with advantages of high
automation, easy operation, high speed and high precision. They have high performance but low cost with these character; so it is
the first choice of large and medium-size enterprise.
Features:
1.Pre-stack and feeding system: the paper can be stacked without stopping during laminating.
2.Man machineinterface system: input laminating sizes, set the stacking distance and view the machine working status through the 7.5 inches touch screen.
3.Dividing device: machines divide the finished laminating paper.
4.Auto stacker:the stacker can collect finished laminating paper automatically with pneumatic patting system, whose patting frequency can be set according to your inquiry.
5.Film shaft is air expansion spindle.
Technical specifications:
Model |
KFMG-800 |
KFMG-1100 |
Max. paper size |
800×780 |
1040×780 |
Min. paper size |
340×240 |
340×240 |
Paper thickness |
125-450g/sqm |
125-450g/sqm |
Max. laminating speed |
50m/min |
50m/min |
Total weight |
2500KG |
3000KG |
Overall dimensions |
3420×1500×1720mm |
3420×1780×1720mm |
Power |
21KW |
21KW |
