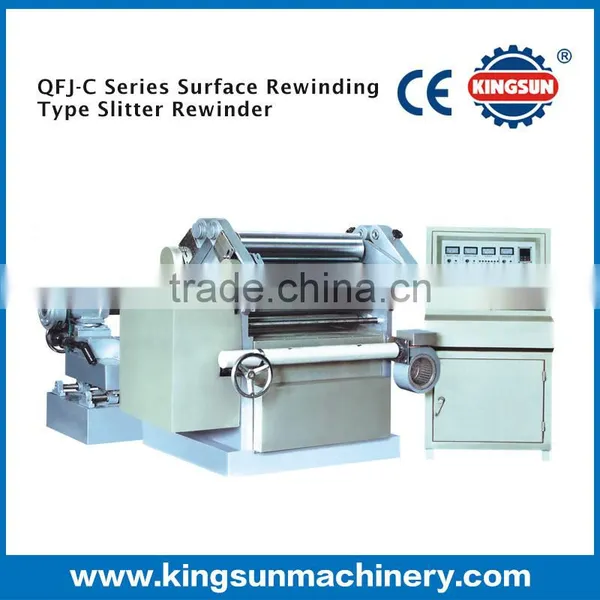

QFJ-C Series Surface Rewinding Type Slitting Machines
This QFJ-C series is surface rewind type slitting machine mainly fit for foil ,paper and film slitting and rewinding, especially it is fit for narrow width slitting materials. The finish roll with good tension and smooth edge side.
Features:

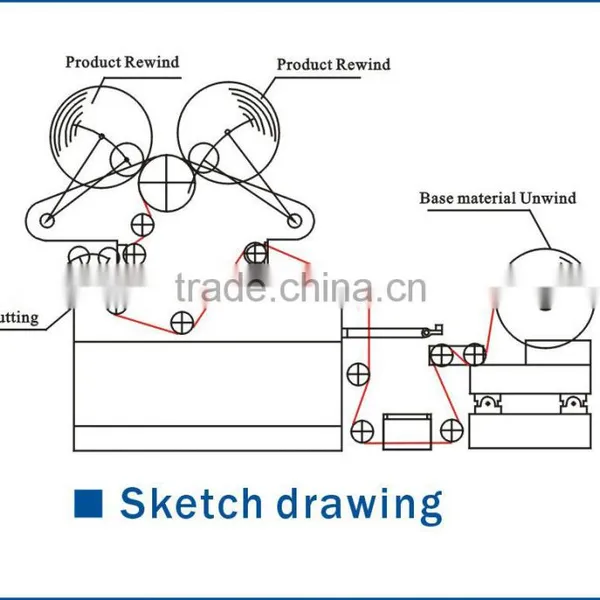

a.This machine adopts center rewinding and surface contact mode to rewinding.
b.With EPC web guide, automatic constant tension controller.
c.Auto meter counting, auto stop system
d.Frequency inverter control
e.Independent control box for easy operation.
Main specification:
Model |
700 |
1100 |
1300 |
Material width |
700mm |
1100mm |
1300mm |
Max unwinding diameter |
Φ600mm |
Φ600mm |
Φ600mm |
Max rewinding diameter |
Φ450mm |
Φ450mm |
Φ450mm |
Working speed |
0-180m/min |
0-180m/min |
0-180m/min |
Total power |
3KW |
4.5KW |
5.5KW |
Machine weight |
1800kg |
2200kg |
2500kg |
Out dimensions |
1800×1700×1200mm |
1800×2100×1200mm |
1800x2300 x 1200mm |
