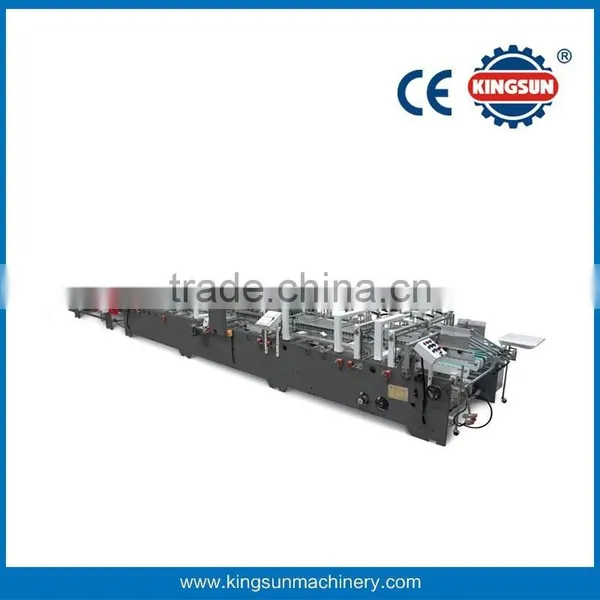

Help CenterChina Professional Supplier KS980 SL Folder Gluer for 4 and 6 Corner Box
Related Products
-
LPM220 Die Cutting Machine for Sticky NotesUS$ 4,600 - 5,000MOQ: 1 Set -
LPM500 Narrow Width Adhesive Label Die Cutting MachineUS$ 4,600 - 5,000MOQ: 1 Set
-
QZYK-CH Series Program Control Paper Cutting MachineNegotiableMOQ: 1 Set
-
QZYK-CD Series Computer Control Paper Cutting Machine (guillotine)NegotiableMOQ: 1 Set
-
Fully Automatic Computer Control Hard Cover Making MachineUS$ 40,000 - 48,000MOQ: 1 Set
This series four and six corner automatic folder gluer machine adopts latest world technology, mainly fits for making carton box and corrugation box. It has functions of pre-folding, crash lock and 4.6 corner function etc, with features of operating reliable, high efficient and easy maintenance, it is kind of ideal equipment for big capacity box production.
Main technical specifications:
| Paper type | white cardboard, card-to-card lining and E flute |
| Paper feeding | Accurate, automatic and continuous feeding |
| Max gluing speed | 250m/minute |
| paper box width | 100-980mm |
| Machine dimension | 13*1.6*1.7m |
| Adhesive | soluble adhesive |
| Total weight | About 7800kgs |
| power required | 13.2kw |
Key components:
Includes 8 sections: Feeder, Side Register ,Pre-folder, Gluer, Folding and Closing, 4,6 corner section, Trombone and Conveyor.
1) Feeder section:
· Seven 30mm paper-feeding belts coordinate with vibration motor;
· 10mm medal plates horizontally adjust and set width, and embossing guide wheel guides paper-delivering belts;
· Aprons are provided at right and left sides to move right and left in response to product patterns;
· Equipped with two delivery cutters to adjust asymmetric length depending on actual needs;
· The power of vibration motor can be adjusted depending on vibration rack;
· Achieves overall coordination to ensure easy, fast, automatic, continuous and accurate paper feeding;
· Equipped with step less transmission to regulate paper-delivering distance.
2) Side Register section:
It can correct the not-straight paperboards after paper feeding, ensure the accurate folding in the next.
3) Pre-folder section:
· Equipped with right/ left pre-folders in the front section to complete 180o pre-folding on small sides, and right/ left pre-folders in the rear section to complete 108o pre-folding for any lines, thus making it easier to spread cartons.
4) Gluer section:
· All gluing drums can be loaded and unloaded; Two upper gluing drums (right and left) and two lower gluing drums (right and left), to be selected depending on actual needs;
· Glue quantity in gluing drums is adjustable, thus ensuring stability and easy maintenance;
· Gluing roller is 4mm thick in standard version and can be customized according to customer requirements;
· Made with copper, gluing drum is firm and durable;
· Bottom gluing is completed by 4 groups of crash-locking mechanism.
· Grinder including suction device Grind the glue flap surface of UV coating box for adhesive.
5) Folding and Closing section:
· Composed of 30mm bottom belts and 50mm elbow belts;
· Right and lefts sides complete 180o second crease and 180o fourth crease;
· Right and left guide wheels allow flexible adjustment of different positions to facilitate folding;
· Lower bearings enable guide wheels to operate properly.
6) Trombone section:
· Upper/lower drive mechanism to adjust length; Equipped with automatic belt tension-adjusting system;
· Adopts continuous and automatic box collecting mechanism to ensure boxes enter the Conveyor section neat and well aligned;
· Equipped with electronic counter/automatic mark kick plate for counting
· Equipped with air compressor system and creasing channel system;
7) 4&6-corner section(only for SL model):
Rear-crash lock of mechanical operation in coordination with paper delivery photoelectric,
thus ensuring every box continuously and accurately crash locked and speedily, stably to make
4&6 corner box.
8) Conveyor section:
· Adopts 600mm-wide, 4mm-thick flexible belts imported from Italy, eliminating the risk of damage to products;
· Entire conveyor section can move forward and backward;
· Balanced pressure and neat convey to ensure flawless product quality;
· Automatically regulates speed via host rotation speed in coordination with photoelectric device;
· Also, speed can be manually regulated; Rubber rollers constitute a functional mechanism.
Brands and Specifications for Key Components:
Main motor from TAIWAN DONGYUAN;
Gear belts from German OPTI and Gates
Bearings from Italian CCVI;
Conveyor belts from Italian SAMPLA;
Feeding belts from Japanese NITTA;
Flat belts fromItalian SAMPLA;
PLC from Korea LS.
The electrical parts fm German ABB.
Warranty:
One year after machine arrival at the destination port.
