KXJ5050 Case Erector and Bottom Sealer, Carton Erecting Machine

KXJ5050 Case Erector and Bottom Sealer, Carton Erecting Machine thumbnail-1
KXJ5050 Case Erector and Bottom Sealer, Carton Erecting Machine photo-1
US$ 8,000 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Commodity, Food
Packaging Type:
Bottles, Cans, Cartons, Other
Contact Supplier Request Quote Chat Now
Wenzhou Kingsun Machinery Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Beverage, Chemical, Commodity, Food
Packaging Type Bottles, Cans, Cartons, Other
Packaging Material Paper, Plastic, Wood
Automatic Grade Automatic
Driven Type Electric
Voltage 220V or 110V
Power 900w
Place of Origin Zhejiang, China
Brand Name Kingsun
Model Number KXJ5050
Dimension(L*W*H) 2000X1900X1450mm
Weight 550KGS
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

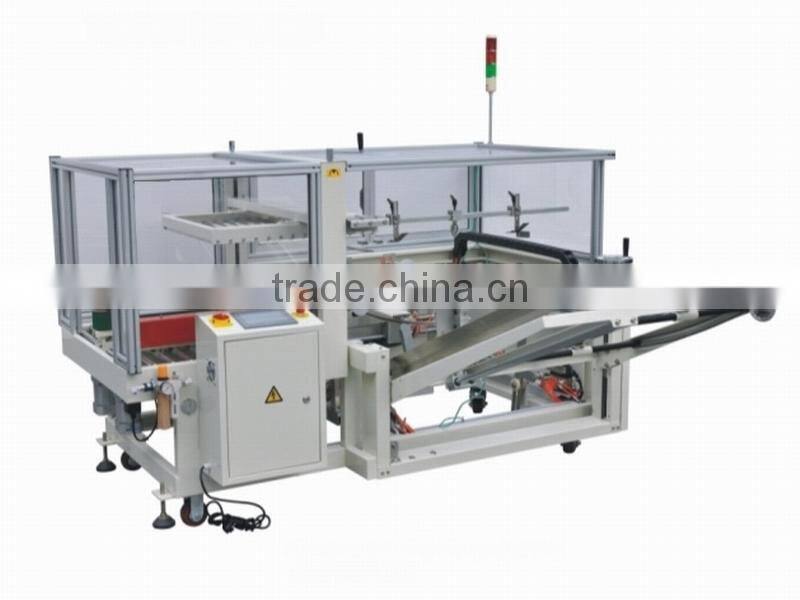

KXJ5050 Case Erector and Bottom Sealer, carton Erecting machine



Product Feature:

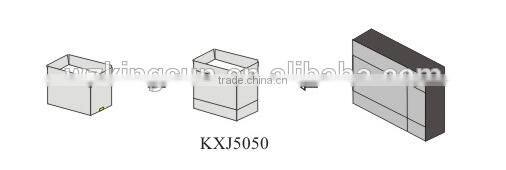

KXJ5050 Case Erector and Bottom Sealer,carton Erecting machine can erect carton and make bottom sealing automatically, and its vertical storage is adopted for storage carton blanks, for which carton blanks can be added at any time without stopping the machine; It's suitable for forming and sealing cartons of the same size. If carton sizes need to be changed, the operator should adjust the machine manually (finishing in 2-3 minutes);It's rationally designed so that the forming, folding and sealing process are accomplished simultaneously; All the parts are precise and durable, without causing any vibration in running .Running steadily with long life; Light in weight, high performance and speed.



Technical Specification



Model

KXJ5050

Carton Size

L200~450mm/W150~400mm/H100~350mm

Table height

Min.H600 Max.H720mm

Speed

1-10 box/min

Dimension (L x W x H)

2000X1900X1450mm

Power supply

220V/380V 50/60HZ

Air source

>500L/min,0.4~0.8Mpa

Tape

W48mm-W60-75mm*L1000

Machine weight

NW-400kg   GW-550kg

 KXJ5050 Case Erector and Bottom Sealer, carton Erecting machineKXJ5050 Case Erector and Bottom Sealer, carton Erecting machine
