T1650FM Automatic Pre-stretch Pallet Film Wrapping Machine (open Turntable)

T1650FM Automatic Pre-stretch Pallet Film Wrapping Machine (open Turntable) thumbnail-1
T1650FM Automatic Pre-stretch Pallet Film Wrapping Machine (open Turntable) thumbnail-2
T1650FM Automatic Pre-stretch Pallet Film Wrapping Machine (open Turntable) thumbnail-3
T1650FM Automatic Pre-stretch Pallet Film Wrapping Machine (open Turntable) photo-1
T1650FM Automatic Pre-stretch Pallet Film Wrapping Machine (open Turntable) photo-2
T1650FM Automatic Pre-stretch Pallet Film Wrapping Machine (open Turntable) photo-3
US$ 3,300 - 4,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Commodity, Food, Other
Packaging Type:
Film, Other, Film, wooden case
Contact Supplier Request Quote Chat Now
Wenzhou Kingsun Machinery Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Commodity, Food, Other
Packaging Type Film, Other, Film, wooden case
Packaging Material Plastic, Wood
Automatic Grade Automatic
Driven Type Electric
Voltage 220v
Power 0.75
Place of Origin Zhejiang, China
Brand Name Kingsun
Model Number T1650FM
Dimension(L*W*H) 2745mmX1650mmX(2270-2870)mm
Weight 700kg
Certification CE
After-sales Service Provided No overseas service provided

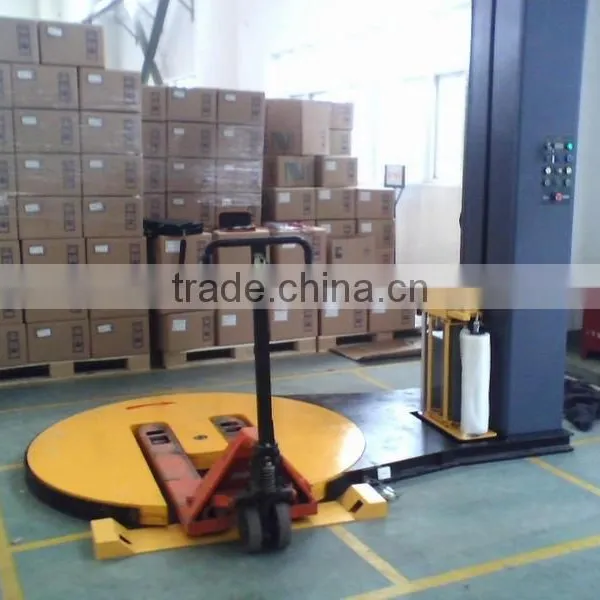

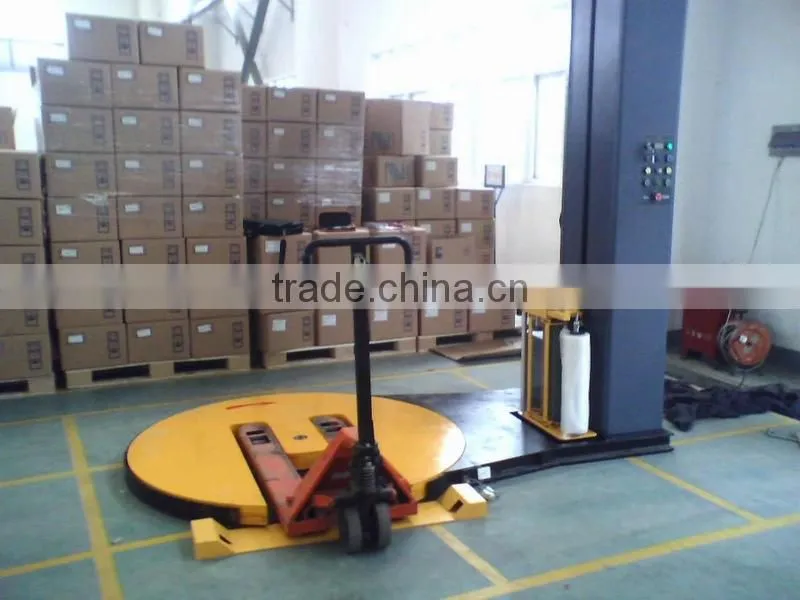

T1650FM Automatic Pre-stretch Pallet Wrapping Machine (open turntable)



Product Feature:

T1650FM Automatic Pre-stretch Pallet Wrapping Machine with an open turntable in order to enable direct loading with manual or electric jacks, so there is no need either for floor modifications or for a ramp. Therefore, that would save much effort and improve efficiency. Top plate is optional and specially designed for holding an unstable product.







Technical Specification



Model

T1650FM

Wrap size(L×W)

(500-1200)mm×(500-1200)mm

Wrap height(max)

L type:1800mm  H type:2400mm  Y type:2800mm

Wrap efficiency

20-40 Pallets/Hour

Turntable speed

0-12rpm Adjustable turntable speed

Turntable diameter

1650mm

Turntable height

98mm

Turntable weight capacity(max)

2000kg

Film carriage

Pre-Stretch film carriage,stretch up to 250% and adjustable speed

Lift system

Double chain structure,lift speed adjustable

Control system

PLC control,wrap layers adjustable,Turntable automatic reset,photo-eyes auto-height sensing

Open turntable size

Custom made

Total weight(max)

700kg

Machine size

2745mm×1650mm×(2270-2870)mm

Power/voltage

Turntable:0.75kw  Film carriage:0.35kw  Lift system: 0.37kw`/AC220V

Top plate(optional)

Motor-driven



T1650FM Automatic Pre-stretch Pallet Film Wrapping Machine (open turntable)T1650FM Automatic Pre-stretch Pallet Film Wrapping Machine (open turntable)
