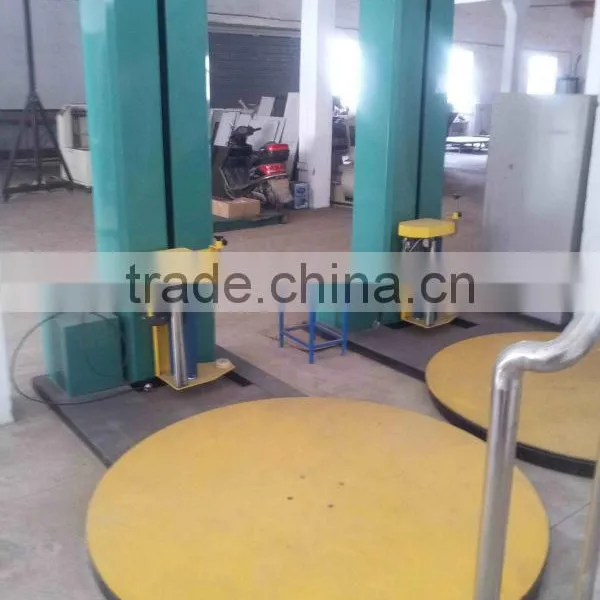

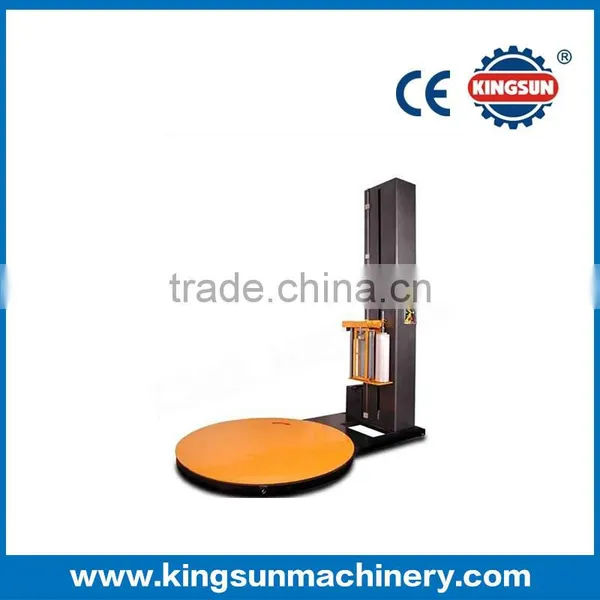

Pallet stretch wrapping machine
Product Feature:
Pallet stretch wrapping machine are used to wrap stretch film around a loaded pallet. Film provides extra support while the products are being transported and storaged to protect them from tip, spill or from being damaged. Additionally , wrapped loads can easily be separated and identified. Stretch pallet wrapper is widely used in chemical industry electronic industry building materials home appliances papermaking foodstuff and drink etc.
Controls
OMRON PLC
Photo-eye pallet height sensor
0-9 separate top, bottom and up-down wrap count selectors
Photoeye sensing delay
Reinforce wrap allow more wrap on same location
Film Tension Control adjustment on the panel
3-12 RPM variable carriage up-down speed
Cycle pause capability
Separate start, reset and emergncy stop buttons
Manual carriage up-down switch
Turntable jog button
Technology Parameters | |
Model |
T1650F |
Wrapping Size(L×W)(mm) |
(500-1200) ×(500-1200) |
Wrapping Height(mm) |
L Type:(800-1800) / H Type:(800-2400) |
Wrapping Efficiency(loads/hour) |
20-40 |
Turntable Speed(rpm/min) |
3 - 12 |
Turntable Diameter(mm) |
Φ: 1650 / H: 85 |
Turntable Loading(max)(kg) |
2000 |
Electrical Requirement |
Single Phase 220V / 50HZ / 20A |
Power(kw) |
Turntable:0.75; Film Carriage:0.4; Steel Tower:0.37 |
Film Carriage |
Pre-Stretch Type |
Machine Weight(kg) |
900 |
Machine Dimension(mm) |
L Type:2545×1650×2280 / H Type: 3500×1800×980 |
