Home > Packaging & Printing > Packing Machinery > Laminating Machine > High Quality WQM 320G Automatic Label Die-cutting Machine

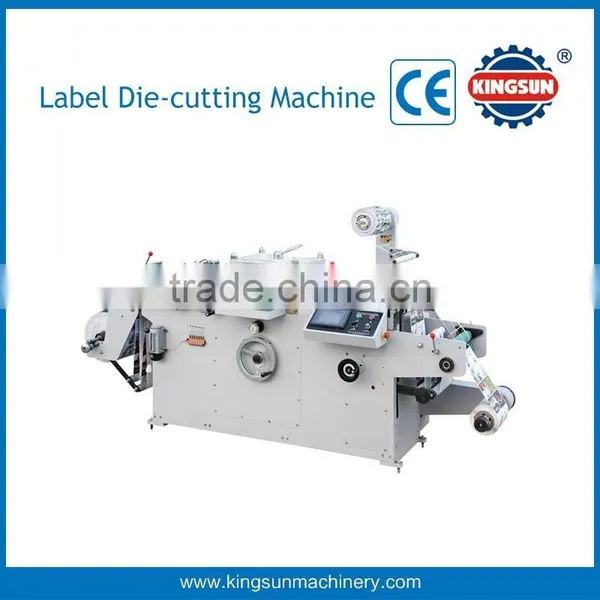

High Quality WQM 320G Automatic Label Die-cutting Machine

High Quality WQM 320G Automatic Label Die-cutting Machine photo-1
US$ 11,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
Used
Year:
2013
Type:
Other, flat die cutting machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition Used
Year 2013
Type Other, flat die cutting machine
Automatic Grade Automatic
Place of Origin Zhejiang, China
Brand Name Kingsun
Model Number WQM-320G
Voltage 220V 1P
Power(W) 3.5kw
Dimension(L*W*H) 2600 X900 X 1400 mm
Weight 1700kg
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Features:



This machine adopts platen high accurate die cutting,label conveyoring and sheeting controlled by touch screen micro-computer,the two sides of printed mark and longitudinal tracked by three photoelectric eye.Die cutting rewind waste edge side paper,sheeting can finish at one time.It is suitable for die cutting paper label,film label and holographic label.etc.This machine and label slitter is necessary auxiliary machine for the flexo printing machine or continuous screen printing machine.

optional parts:laminating device,foil stamping unit,punching unit,optical-fiber tracking photocell for hologram label etc



Main technical specifications:

Model

WQM-320G

WQM-420G

Die cutting speed

20-170m/min

20-170m/min

Max. unwinding diameter

500mm

500mm

Max. width of paper

320mm

420mm

Max. cutting width

300mm

400mm

Max. cutting length

300mm

400mm

Positioning precision

±0.1mm

±0.1mm

Total power

3.5kw

4.5kw

Power supply

220v±10%

380v

Overall dimensions

2.6X0.99X1.4M

2.7X1.05X1.5M

Weight

About 1700kg

About 2300kg
