Professional and Original Z1Z-CF03-80 model 1500W diamond drills for coring drills

Specifications

Specifications:
1) Max. drilling diameter:200mm(brick)/80(concrete)
2) Rated input power:1500W
3)No-load speed:950/2100r/min

Z1Z-CF02-80 Model Diamond Core Drill

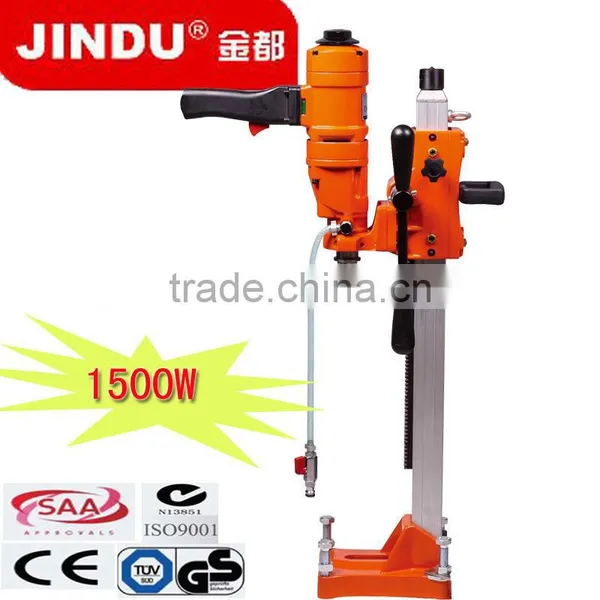

Products Picture



Product Information



Quality Control For Products:

1)Our company produces diamond bits,such as foreign standard Q series,T series,etc.too.All these mining and geological diamond drill bits can meeet every demand from the customers,is suitable for drilling medium hard,hard and very hard formation.

2)Our company poseesses an excellent research & design team, advanced equipments and our workers are well trading and working hard which gives guarantee of stable quality.



Aplications And Advantages:

1)For core drilling in walls ,floors,roofs and road surface,up to 80mm.

2)Suitable for various materials such as reinforced concrete,brick and other construction materials.

3)Low noise,vibration,pwer consumption.

4)Different drilling speed version for appropriate situations.

5)Electria leakage protection.

6)Available for dry bit drilling.



Model:	Z1Z-CF03-80
Bracket Optional:	a)With stand(Aluminium alloy)		b)Without stand
CBM:	a)0.0827m3		b)0.0827m3
Collet size:	a)80mm(concrete)		b)200mm(for brick)
Input power:	1500W
Voltage:	a)110V		b)220V	c)240V
Frequency:	50HZ
No-load speed:	950r/min		2100r/min
G.W./N.W.	19/23.41KGS
Package size:	87.1*37.1*25.6cm
China manufacturer Drill Optional:	a)All Aluminium Alloy stand(Aluminium)
	b)Hand-held tools
	c)with bracket
	d)All mining and geological diamond core bits
	e)diamond core bits(dry type or wet type)
	f)Sintered drill bits or welding drill bits
Structure:	a)Hand-held		b)with stand
MOQ:	20 pcs,it depends on which model  you want.
Payment terms:	a)T/T		b)L/C
China manufacturer Drill Quantity:	a)20GP		40HQ
Loading Q'ty	326pcs		665PC

Product features











Product Procedure





Note:The core bits and reaming shells of various atandard,series and size can also be manufactured according to customer's need













Our Factory Showroom







♥ If you want to know more information about our products welcome to contact us in any time, And welcome to our company! We display more new design in our showroom
