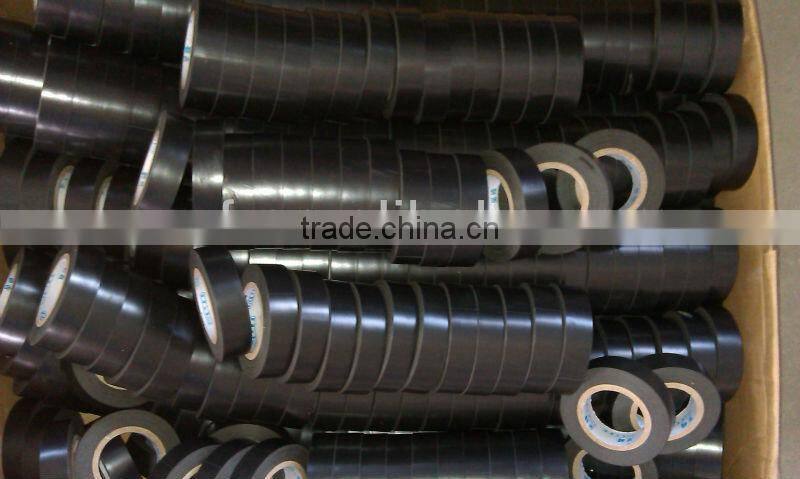

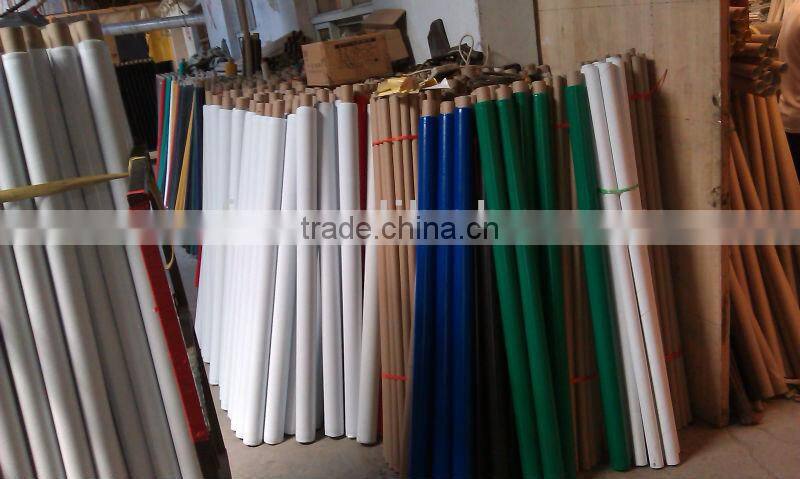

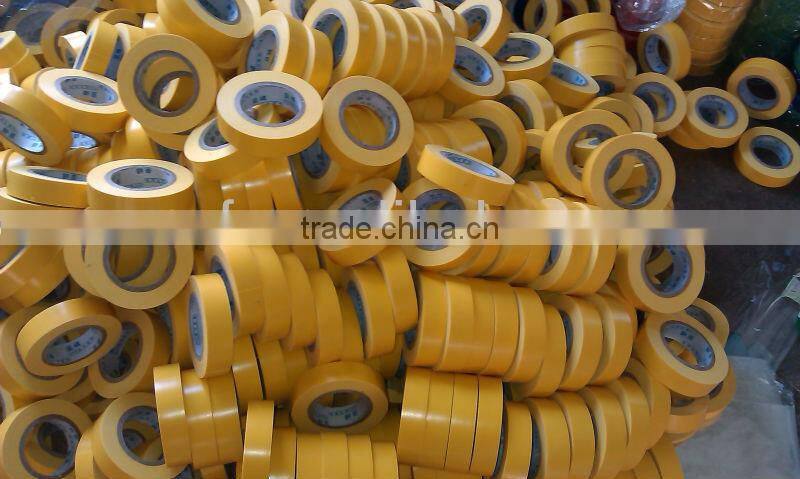

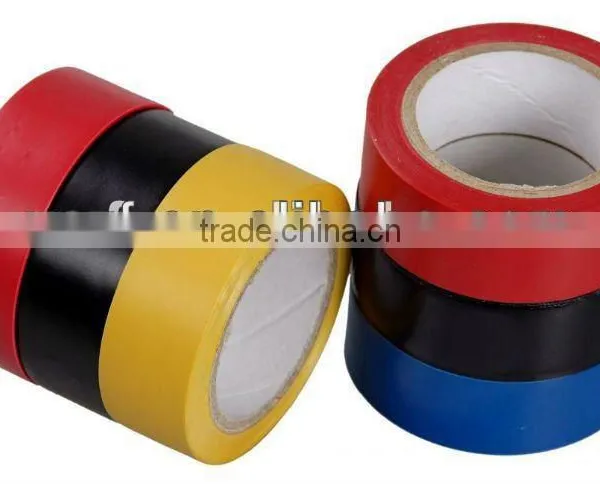

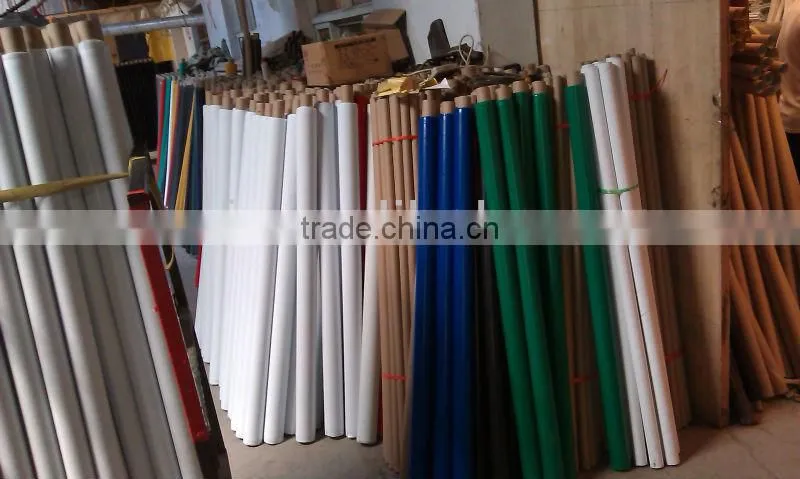

Colored Adhesive PVC Insulation Tape
US$ 0.5 - 0.9
/ Square Meter
1000 Square Meters(Min. Order)
- shanghai
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | zhufeng | |
| Model Number | PVC tape | Type | Insulation Tape | |
| Material | PVC | Application | Low Voltage |
Product Description
PVC electrical insulation tape take PVC film as its backing material, electrical tape has wonderful features,
such as insulation, flame retardancy, cold resistance, voltage resistance, acid and alkali resistance, and solvent resistance.
Features:
1.Excellent insulating quality
2.Good flaming resistance, cold resistance
3.Good wrapping performance
4.Low price with high quality
Usage:
1.Electrical tape is widely used in automobile harness, wrapping of wires, insulation protection.
2.It is the main insulating material of automobile, household electrical equipments, refrigerator, and electronic apparatus.
Data Sheet:
| Item | Code | physical parameter | ||||||||
| Grade | thickness mm | Backing | Adhesive | (Tensile strength )N/cm | temperature resistance (°C) | Breakdown voltage(KV) | Elongation % | 180°peel force N/cm | ||
PVC tape | xsd-pvcA10 | Grade A | 0.1 | PVC | Rubber | 14 | 80 | 4.5 | 160 | 1.5 |
| xsd-pvcA11 | 0.11 | PVC | Rubber | 15 | 80 | 5.5 | 160 | 1.5 | ||
| xsd-pvcA13 | 0.13 | PVC | Rubber | 17 | 80 | 5.5 | 160 | 1.6 | ||
| xsd-pvcA15 | 0.15 | PVC | Rubber | 20 | 80 | 6.5 | 180 | 1.6 | ||
| xsd-pvcA165 | 0.165 | PVC | Rubber | 22 | 80 | 6.5 | 180 | 1.8 | ||
| xsd-pvcA18 | 0.18 | PVC | Rubber | 26 | 80 | 8 | 180 | 1.8 | ||
| xsd-pvcA19 | 0.19 | PVC | Rubber | 28 | 80 | 8 | 200 | 1.8 | ||
| xsd-pvcA20 | 0.20 | PVC | Rubber | 28 | 80 | 9 | 200 | 1.8 | ||
| xsd-pvcc10 | Grade B | 0.1 | PVC | Rubber | 12 | 80 | 4.5 | 120 | 1.5 | |
| xsd-pvcc11 | 0.11 | PVC | Rubber | 13 | 80 | 5.5 | 160 | 1.5 | ||
| xsd-pvcc13 | 0.13 | PVC | Rubber | 15 | 80 | 5.5 | 160 | 1.6 | ||
| xsd-pvcc15 | 0.15 | PVC | Rubber | 18 | 80 | 6.5 | 160 | 1.6 | ||
| xsd-pvcc165 | 0.165 | PVC | Rubber | 20 | 80 | 6.5 | 160 | 1.8 | ||
| xsd-pvcc18 | 0.18 | PVC | Rubber | 24 | 80 | 8 | 160 | 1.8 | ||
| xsd-pvcc19 | 0.19 | PVC | Rubber | 26 | 80 | 8 | 180 | 1.8 | ||
| xsd-pvcc20 | 0.20 | PVC | Rubber | 26 | 80 | 9 | 180 | 1.8 | ||
| xsd-pvcz10 | Flame-resistant | 0.1 | PVC | Rubber | 14 | 80 | 4.5 | 160 | 1.5 | |
| xsd-pvcz11 | 0.11 | PVC | Rubber | 15 | 80 | 5.5 | 160 | 1.5 | ||
| xsd-pvcz13A10 | 0.13 | PVC | Rubber | 17 | 80 | 5.5 | 160 | 1.6 | ||
| xsd-pvcz15 | 0.15 | PVC | Rubber | 20 | 80 | 6.5 | 180 | 1.6 | ||
| xsd-pvcz165 | 0.165 | PVC | Rubber | 22 | 80 | 6.5 | 180 | 1.8 | ||
| xsd-pvcz18 | 0.18 | PVC | Rubber | 26 | 80 | 8 | 200 | 1.8 | ||
| xsd-pvcz19 | 0.19 | PVC | Rubber | 28 | 80 | 8 | 200 | 1.8 | ||
| xsd-pvcz20 | 0.20 | PVC | Rubber | 28 | 80 | 9 | 200 | 1.8 | ||
