Help CenterPVC INSULATION TAPE
Related Products
Specifications
Excellent insulating propertyGood flaming resistance, and wrapping performance
ROHS stardand
Low price and high quality

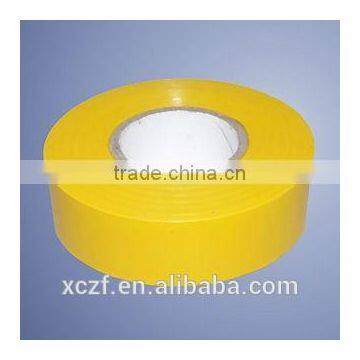

PVC Electrical Tape is made by soft PVC film coated withpressure sensitive adhesive for single sided coating that. It is suitable for continuous use at 80℃ with good flame retardance and softness, not influenced by most chemical substances and humidity.
the electrical tape has wonderful features,
such as insulation, flame retardancy, cold resistance, voltage resistance, acid and alkali resistance, and solvent resistance.
Usage:
1.Electrical tape is widely used in automobile harness, wrapping of wires, insulation protection.
2.It is the main insulating material of automobile, household electrical equipments, refrigerator, and electronic apparatus.
Data Sheet:
| Item | Code | physical parameter | ||||||||
| Grade | thickness mm | Backing | Adhesive | (Tensile strength )N/cm | temperature resistance (°C) | Breakdown voltage(KV) | Elongation % | 180°peel force N/cm | ||
PVC tape | xsd-pvcA10 | Grade A | 0.1 | PVC | Rubber | 14 | 80 | 4.5 | 160 | 1.5 |
| xsd-pvcA11 | 0.11 | PVC | Rubber | 15 | 80 | 5.5 | 160 | 1.5 | ||
| xsd-pvcA13 | 0.13 | PVC | Rubber | 17 | 80 | 5.5 | 160 | 1.6 | ||
| xsd-pvcA15 | 0.15 | PVC | Rubber | 20 | 80 | 6.5 | 180 | 1.6 | ||
| xsd-pvcA165 | 0.165 | PVC | Rubber | 22 | 80 | 6.5 | 180 | 1.8 | ||
| xsd-pvcA18 | 0.18 | PVC | Rubber | 26 | 80 | 8 | 180 | 1.8 | ||
| xsd-pvcA19 | 0.19 | PVC | Rubber | 28 | 80 | 8 | 200 | 1.8 | ||
| xsd-pvcA20 | 0.20 | PVC | Rubber | 28 | 80 | 9 | 200 | 1.8 | ||
| xsd-pvcc10 | Grade B | 0.1 | PVC | Rubber | 12 | 80 | 4.5 | 120 | 1.5 | |
| xsd-pvcc11 | 0.11 | PVC | Rubber | 13 | 80 | 5.5 | 160 | 1.5 | ||
| xsd-pvcc13 | 0.13 | PVC | Rubber | 15 | 80 | 5.5 | 160 | 1.6 | ||
| xsd-pvcc15 | 0.15 | PVC | Rubber | 18 | 80 | 6.5 | 160 | 1.6 | ||
| xsd-pvcc165 | 0.165 | PVC | Rubber | 20 | 80 | 6.5 | 160 | 1.8 | ||
| xsd-pvcc18 | 0.18 | PVC | Rubber | 24 | 80 | 8 | 160 | 1.8 | ||
| xsd-pvcc19 | 0.19 | PVC | Rubber | 26 | 80 | 8 | 180 | 1.8 | ||
| xsd-pvcc20 | 0.20 | PVC | Rubber | 26 | 80 | 9 | 180 | 1.8 | ||
| xsd-pvcz10 | Flame-resistant | 0.1 | PVC | Rubber | 14 | 80 | 4.5 | 160 | 1.5 | |
| xsd-pvcz11 | 0.11 | PVC | Rubber | 15 | 80 | 5.5 | 160 | 1.5 | ||
| xsd-pvcz13A10 | 0.13 | PVC | Rubber | 17 | 80 | 5.5 | 160 | 1.6 | ||
| xsd-pvcz15 | 0.15 | PVC | Rubber | 20 | 80 | 6.5 | 180 | 1.6 | ||
| xsd-pvcz165 | 0.165 | PVC | Rubber | 22 | 80 | 6.5 | 180 | 1.8 | ||
| xsd-pvcz18 | 0.18 | PVC | Rubber | 26 | 80 | 8 | 200 | 1.8 | ||
| xsd-pvcz19 | 0.19 | PVC | Rubber | 28 | 80 | 8 | 200 | 1.8 | ||
| xsd-pvcz20 | 0.20 | PVC | Rubber | 28 | 80 | 9 | 200 | 1.8 | ||
