Specifications
Polyimide filmSGS,MSDS
MOQ:1000 SQM
0.0125mm-0.15mm
Excellent quality,favorable price!

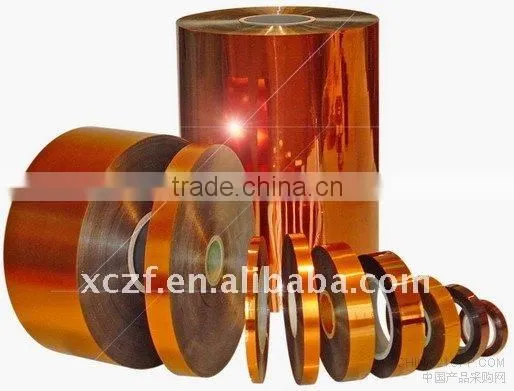

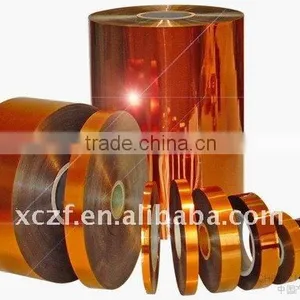

Polyimide Film 6051 has high insulation performance and heat resistance. The polyimide film is produced by Cast Law". It has high temperature resistance, radiation protection and high-quality dielectric properties for H grade electrical machinery, electrical insulation and other uses of electrical insulating materials, which can be sub - cut different widths of dribbling according to customers requirements.
No. | Properties | Unit | Specifications | Test Results |
1 | Appearance | --- | The Polyimide Film should be smooth and flat with neat non-torn edges and without any defects such as wrinkles, tears, gels blisters or bubbles, pinholes and foreign impurities | Pass |
2 | Width
| mm | ±1.6 | 540 |
3 | Thickness
| mm | 0.25 ±0.01 | 0.245 -0.005 |
4 | Number of Splices
| each/1000m |
| 0 |
5 | Density
| g/cm3 | 1420±20 | --- |
6 | Tensile strength Machine direction Cross direction | MPa | ≥135 ≥115 | 138 120 |
7 | Elongation Machine direction Cross direction | % | ≥35 ≥35 | 45 40 |
8 | Shrinkage rate Machine and cross
| % | --- | --- |
9 | Flammability
| --- | --- | --- |
