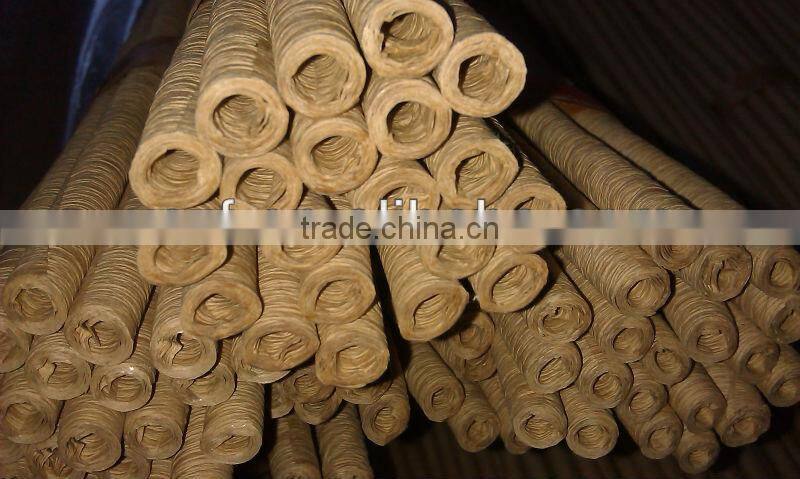

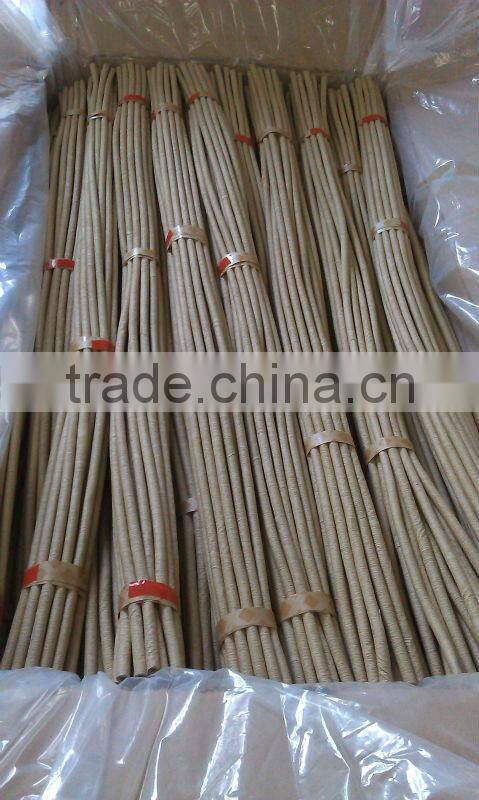

ELECTRICAL CREPE PAPER TUBE

Specifications

made of electrical crinkled insulating paper through special process,is mainly used as insulating package of leads inside oil

Electrical Crepe paper tube made of electrical grade insulation crepe kraft paper,these tubes are used as sleeves for interconnection of terminals, and well used in the oil-type transformers with higher rate of absorption of oil to ensure higher dielectric strength compared to conventional SRBP tubes. They can be bent under extreme conditions without collapsing. Different inner diameter and outer diameter can be offered by customers' requirement. Standard length is 1000mm.





Table of Common specification of Crepe paper bute af following  :

Inner Diameter *Outer diameter

4*6mm

4*8mm

6*9mm

7*8mm

7*9mm

7*10mm

8*10mm

10*12mm

11*12mm

11*13mm

11*14mm

12*16mm

13*14mm

13*16mm

14*16mm

14*17mm

16*19mm

18*21mm

20*25mm

34*38mm

46*50mm

68*72mm



Can also process crepe paper tube of various specifications according to customers' requestments



Storage: store in a dry and clean room,without being pressed,and keep away fire or heat,or in the sun.
