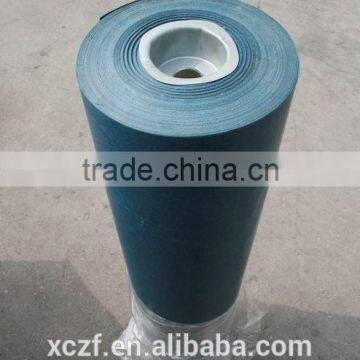

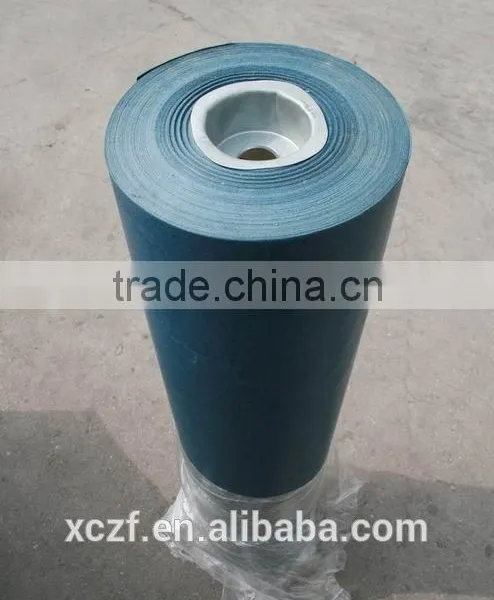

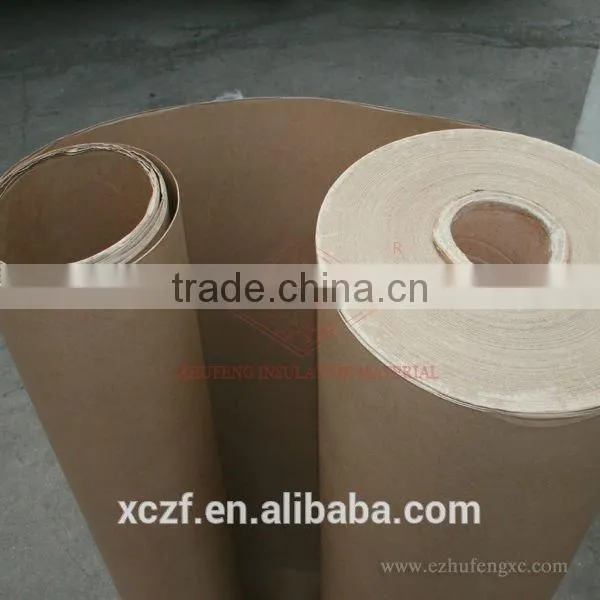

ELECTRIAL INSULATION PRESSBOARD FOR TRANSFORMER

Specifications

transformer insulation pressboard
High chemical purity, excellent elongation, good Mechanical and dielectric Strenght



Electrical insulation pressboard

1 .Description:    The Insulation Transformer Pressboard is manufactured from 100% high quality sulfated insulating wood pulp. without sizing or used fillers. This paper is highly refinded and cleaned to ensure uniform thickness and formation. It is allowed to exist for little Pinholes, Undispersed fiber bundles and Tiny defects if it doesn’t effect to meet the safety requirements in the manufacturing and applications of transformers and cables.



2.Specification:

 1).nominal thicknesses:1.0-8.0mm

 2)..size:1000mmX2000mm   2000mmX4000mm,other size of the purchase contracts.

 3). width :1000mm

 4). Density:1.1-1.25g/cm³

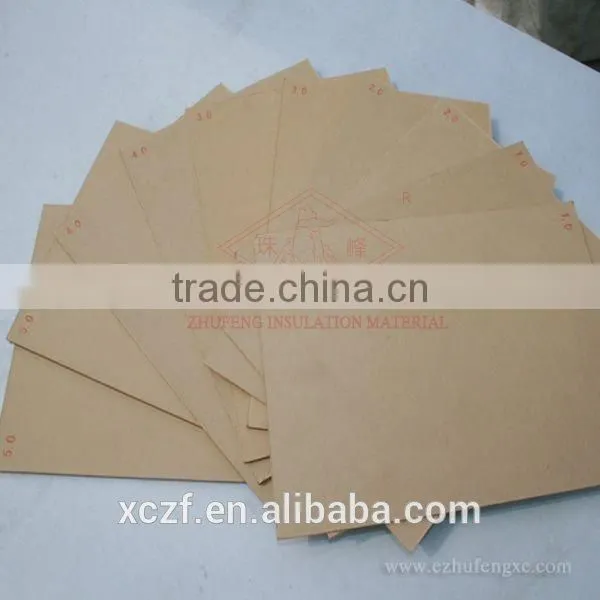

lor:  Natural ,red



4.application: it is suited for making electromagnetic wire of transformers and other electrial insulating equipments

Number	Index		Unit	Standard	Result
1	Thickness		mm	0.93~1.08	1.04
2	Density		g/cm3	1.0~1.25	1.1
3	Moisture		%	≤6.0	4.3
4	Tensile strength	MD	mpa	≥100	106.2
		CD		≥75	81.4
5	Elongation	MD	%	≥3.0	3.5
		CD	%	≥4.0	4.4
6	Electric Strength	In air	kv/mm	≥12	13.5
		in oil	kv/mm	≥40	46
