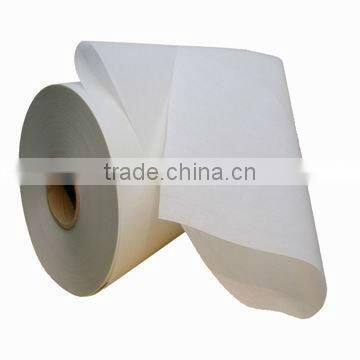

6630 B--DMD DM DMDM electrical insulation paper
- 10000 Kilogram / Kilograms per Month
- any port of china
- T/T
- Wenzhou Yika 7.2KV High Voltage Fuse 63 Amp
- 3240 Epoxy Board, High-quality Insulation Material, Flexible Customization, Widely Applicable 3240 Epoxy Sheet
- Chinese Factory Electrical Insulation Brown 3025 Phenolic Bakelite Resin Cotton Cloth Fabric Laminate Board Sheet Phenolic Board
- 4x8 fiberglass sheets g10 epoxy glass fiber board g10 material
- Factory Price Bakelite Decorative HPL Press plates bakelite sheet
- Black G10 Sheet - High Quality Carbon Fiber G10 FR4 Sheets - Precision-made PCB Materials
Product Details
Place of Origin: | Henan, China | Brand Name: | zhufeng | Model Number: | 0.15-0.35MM |
Type: | Insulation Paper | Material: | Composite Polymer | Application: | High Voltage |
Product Description
Specifications
6630DMD DM DMDM Polyester film /polyester fiber non-woven fabric has passed ISO9001 Certification,high quallity favorable price6630dmd Polyester film /polyester fiber non-woven fabric composite material consists of two layer of ployester fiber Non-woven fabric and a single layer of ployester film in the center .
As slot ,interturn and liner insulation for B grade motor electric appliances .
Class B insulation .130
Avaliability thickness : 0.15 0.20 0.25 0.30 0.35mm
Breadth: 1000m
Items | Unit | Values | ||||
0.18mm | 0.25mm | 0.31mm | 0.36mm | 0.45mm | ||
Thickness | mm | 0.18 | 0.25 | 0.30 | 0.35 | 0.45 |
Thickness tolerance | mm | +/-0.025 | +/-0.03 | +/-0.03 | +/-0.035 | +/-0.045 |
PET Thickness | mm | 0.075 | 0.15 | 0.19 | 0.25 | 0.35 |
Density | g/m2 | 190+/-28 | 300+/-45 | 350+/-52 | 425+/-63 | 560+/-84 |
Breakdown voltage | KV | ≥6 | ≥12 | ≥15 | ≥18 | ≥22 |
Tensile strength, MD | N/10mm | ≥120 | ≥190 | ≥270 | ≥320 | ≥370 |
Ultimate elongation | % | ≥15 | ≥15 | ≥15 | ≥5 | ≥3 |
