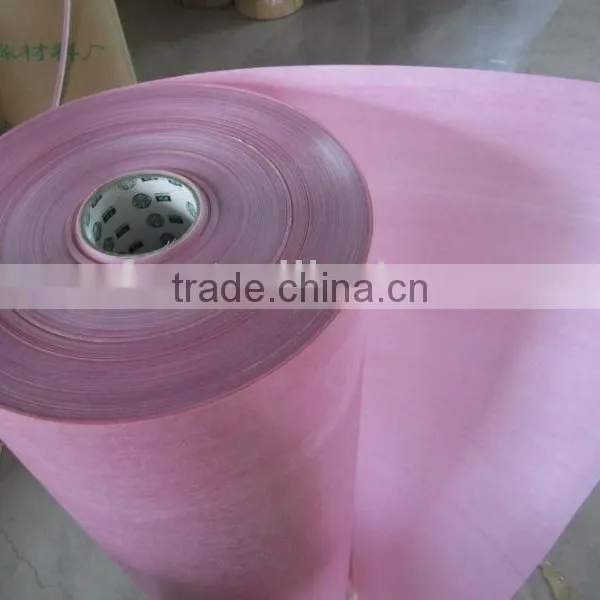

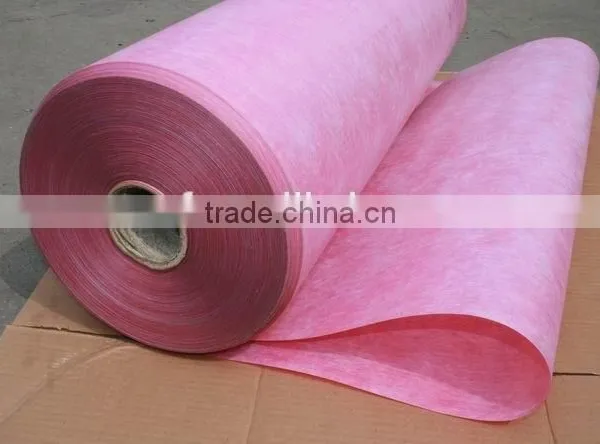

Class F DMD( 6641)

6641 F-DMD Flexible composite Material-insulation paper

Heat-resistance: F class  155°C

6641-F DMD insulation paper consists of two layers of polyester fiber non-woven fabric and one layer of polyester film in the center, the used adhensive is F CLASS ,acid-free and temperature resistant.

 Property:With high dielectric, heat resistance, mechanical strength and impregnated property, as slot ,interurn and liner insualtion in transformers.

The specification available:

Thickness:  0.20mm   0.25mm  0.30mm 0.35mm

Width: 1000m   Color: Pink, watermelon, Blue and White

Form: in rolls.

Pacage: Plastic Bags or Carton     Storage life---1 year
