Home > Products > Electrical insulation paper > 6640 NMN Nomex Paper

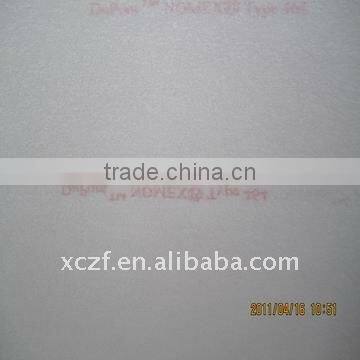

6640 NMN Nomex Paper
- Qingdao Shanghai Ningbo Guangzhou
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | zhufeng | |
| Model Number | 6640 | Type | Insulation Paper | |
| Material | Other, Nomex paper with polyester film | Application | High Temperature | |
| Rated Voltage | 8-12KV |
Product Description

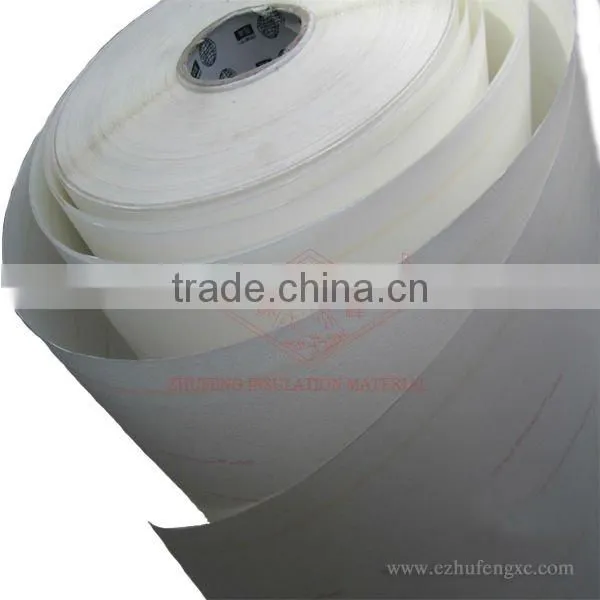

6640 NMN Nomex paper
1.Composition
NMN insulation paper consists of PET film, covered on both sides with Nomex paper .NMN is a combined flexible material of thermal rating class F (155)
2.Property
Excellent heat sistance,dielectric property and mechanical strength,
good cutting and overhead resistance,high stiffness good compatibility with insulation varnish.
3.Purpose
NMN is mainly used as a slot liner, slot closure and phase insulation in the production of low voltage motors. Besides this NMN is used as interlayer insulation in transformers and other electrical machines and appliances .
| NO | Properties | Unit | Values | ||||||||
| 1 | Nominal Thickness | mm | 0.15 | 0.18 | 0.2 | 0.23 | 0.25 | 0.3 | 0.35 | ||
| 2 | Thickness Tolerance | mm | ±0.02 | ±0.03 | ±0.04 | ||||||
| 3 | Nominal Grammage | g/ | 180±25 | 210±30 | 240±30 | 260±35 | 300±40 | 350±50 | 430±50 | ||
| 4 | Tensile Strength | MD | No Bending | N/10 | ≥150 | ≥160 | ≥180 | ≥200 | ≥220 | ≥270 | ≥320 |
| After Bending | mm | ≥80 | ≥110 | ≥130 | ≥150 | ≥180 | ≥200 | ≥260 | |||
| TD | No Bending | ≥90 | ≥110 | ≥130 | ≥150 | ≥180 | ≥200 | ≥250 | |||
| After Bending | ≥70 | ≥90 | ≥110 | ≥130 | ≥150 | ≥170 | ≥200 | ||||
| 5 | Elongation | TD | % | ≥10 | ≥12 | ||||||
| MD | ≥15 | ≥18 | |||||||||
| 6 | Breakdowm Voltage | TD | KV | ≥7 | ≥10 | ≥11 | ≥12 | ≥13 | ≥15 | ≥20 | |
| MD | ≥6 | ≥8 | ≥9 | ≥10 | ≥12 | ≥13 | ≥16 | ||||
| 7 | Bond Strength at 25C | No delamination | |||||||||
| 8 | Bond Strength at 155C | No delamination,no blister,no adhesive flow | |||||||||
| 9 | Temperature | ≥180 | |||||||||
