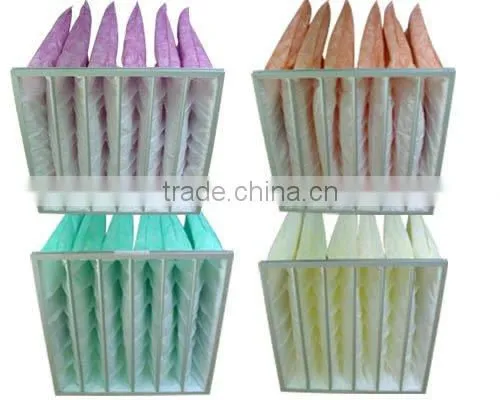

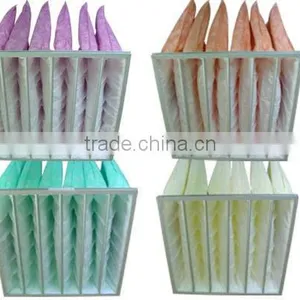

F7 Pocket Filter

Name: F7 Pocket Filter
Brand: AOBO
SKU: 144092538
Availability: InStock

Shandong Aobo Environmental Protection Technology Co., Ltd.

US$ 1 - 3 MOQ: 100 Sets

Key Specifications

Efficiency:

75-85%

Construction:

Other, pocket filter

Filtration Grade:

Medium Filter

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Efficiency 75-85%

Construction Other, pocket filter

Filtration Grade Medium Filter

Medium Material Fiberglass

Porosity 2um

Place of Origin Shandong, China

Brand Name AOBO

Model Number F7

Specifications

pocket filter adopt micro-fine synthetic
larger air volume
competitive price
for HVAC systems.for AHU,ACU etc..

Frame: galvanized steel or extruded aluminum

Filter media: progressively structured synthetic fiber

Gasket: no

EN 779 class: F5-F9

Average arrestance: 95-98%

Maximum air flow rate: 125% of nominal air flow rate

Max. operating temperature: 80^OC

Max. relative humidity: 100% RH

Special sizes: on request

DIN3438-F1 and UL900-class 1

high dusting hold,high efficiency ,low pressure drop, efficiently delete mirco duct((≥3.0~5.0μm)

ultrasonically-welded pocket configuration that guarantees complete pocket inflation and eliminates crowding or leakage.

parameter

.........................................................................................................................

model	Outside Dimensions	Rated air flow	Initial resistance	Efficiency (class)	filter color	pockets
XN-ZXD-13	495×295×600mm 20″×12″×24″	1300m3/h	50Pa F5 55Pa F6 60Pa F7 65Pa F8	40-50% F5 60-70% F6 75-85% F7 85-95% F8 colorimetric	F5 White F6 Green F7 pink F8 light yellow	5
XN-ZXD-22	495×495×600mm 20″×20″×24″	2200m³/h				5
XN-ZXD-16	595×295×600mm 24″×12″×24″	1600m³/h				6
XN-ZXD-27	595×495×600mm 24″×20″×24″	2700m³/h				6
XN-ZXD-32	595×595×600mm 24″×24″×24″	3200m³/h				8
