Home > Industrial Equipment & Components > Filtration Equipment & Parts > Air Filter > F7 Pocket Filterf 7 Air Filter

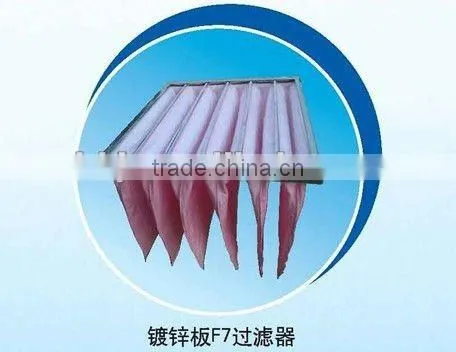

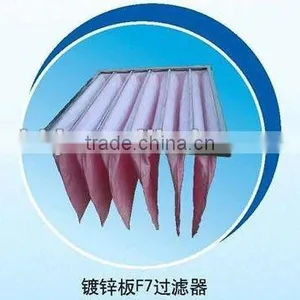

F7 Pocket Filterf 7 Air Filter

Name: F7 Pocket Filterf 7 Air Filter
Brand: AOBO
SKU: 144092502
Availability: InStock

US$ 1 - 3 MOQ: 100 Sets

Key Specifications

Efficiency:

75-85%

Construction:

Other, pocket filter

Filtration Grade:

Medium Filter

Shandong Aobo Environmental Protection Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Efficiency 75-85%

Construction Other, pocket filter

Filtration Grade Medium Filter

Medium Material Fiberglass

Porosity 2um

Place of Origin Shandong, China

Brand Name AOBO

Model Number F7

Specifications

f7 air filter larger air volume
competitive price
for HVAC systems.for AHU,ACU etc..

Frame: galvanized steel or extruded aluminum

Filter media: progressively structured synthetic fiber

Gasket: no

EN 779 class: F5-F9

Average arrestance: 95-98%

Maximum air flow rate: 125% of nominal air flow rate

Max. operating temperature: 80^OC

Max. relative humidity: 100% RH

Special sizes: on request

DIN3438-F1 and UL900-class 1

high dusting hold,high efficiency ,low pressure drop, efficiently delete mirco duct((≥3.0~5.0μm)

ultrasonically-welded pocket configuration that guarantees complete pocket inflation and eliminates crowding or leakage.

parameter

.........................................................................................................................

model	Outside Dimensions	Rated air flow	Initial resistance	Efficiency (class)	filter color	pockets
XN-ZXD-13	495×295×600mm 20″×12″×24″	1300m3/h	50Pa F5 55Pa F6 60Pa F7 65Pa F8	40-50% F5 60-70% F6 75-85% F7 85-95% F8 colorimetric	F5 White F6 Green F7 pink F8 light yellow	5
XN-ZXD-22	495×495×600mm 20″×20″×24″	2200m³/h				5
XN-ZXD-16	595×295×600mm 24″×12″×24″	1600m³/h				6
XN-ZXD-27	595×495×600mm 24″×20″×24″	2700m³/h				6
XN-ZXD-32	595×595×600mm 24″×24″×24″	3200m³/h				8
