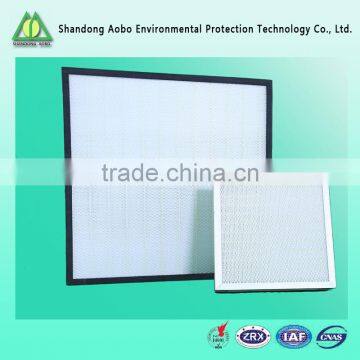

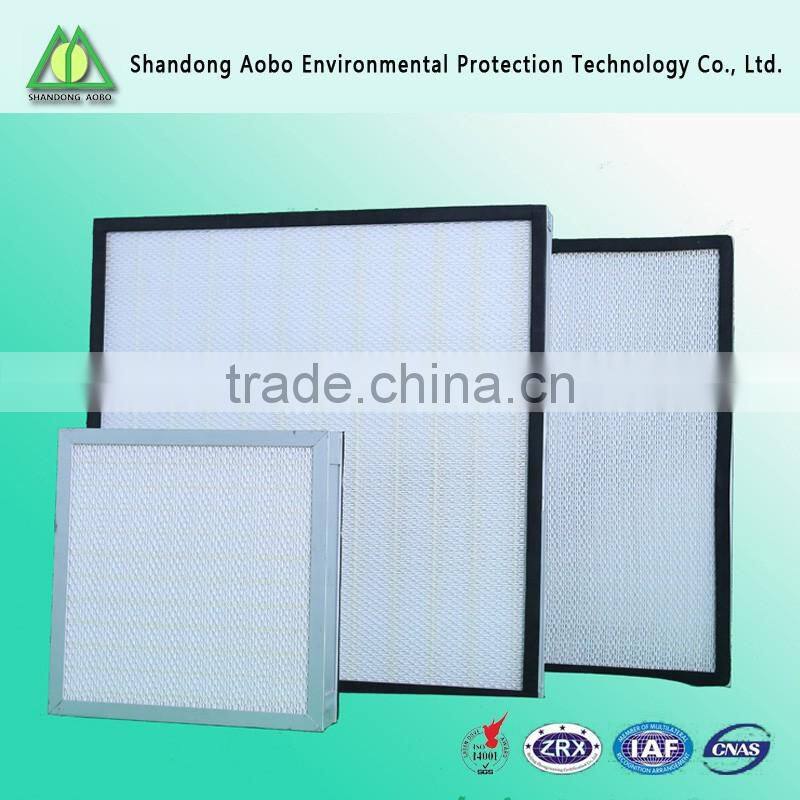

HVAC, H13/14 wood frame Aluminum Separator deep-pleated HEPA filter for cleanroom

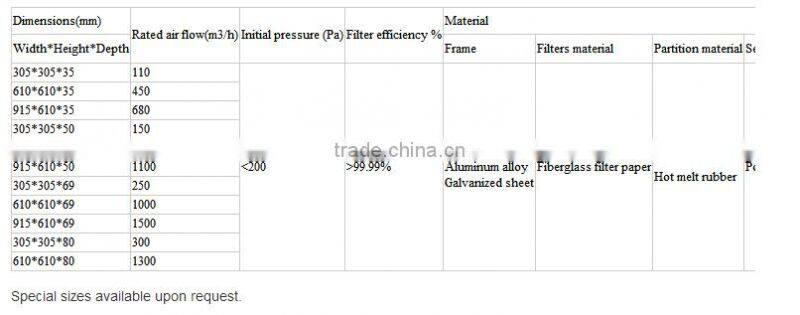

Specification:

·High efficiency(capturing 0.3μm particles)

·Low resistance

·Thin thickness(minimum:25mm)

·Light weight

·Easy to install

·Each filter has scanning test



Application: It is applied to the FFU, cleaning equipment, blow of the cleanroom. And also be widely used in the

electronic, semiconductor, hospital and food industry.

Type: high efficiency foldaway filter

Frame: aluminum or galvanized frame

Separation material: hot melt adhesive

Media: fiber glass filter paper

Final resistance: (suggested) 600Pa

Max. air flow: 125% of the rated air flow

Temp. resistance: 80℃

Humidity:≤80%RH

Description

SHANDONG AOBO COMPANY can provide a wide selection of sizes in cleanroom HEPA and ULPA filters in either aluminum, stainless steel, galvanized sheet frames. Gaskets are supplied either for upstream or downstream clamping. Custom cleanroom filter and prefilter sizes can be created to meet unique cleanroom application requirements.

Features

1. Designed for low resistance and large air flow.

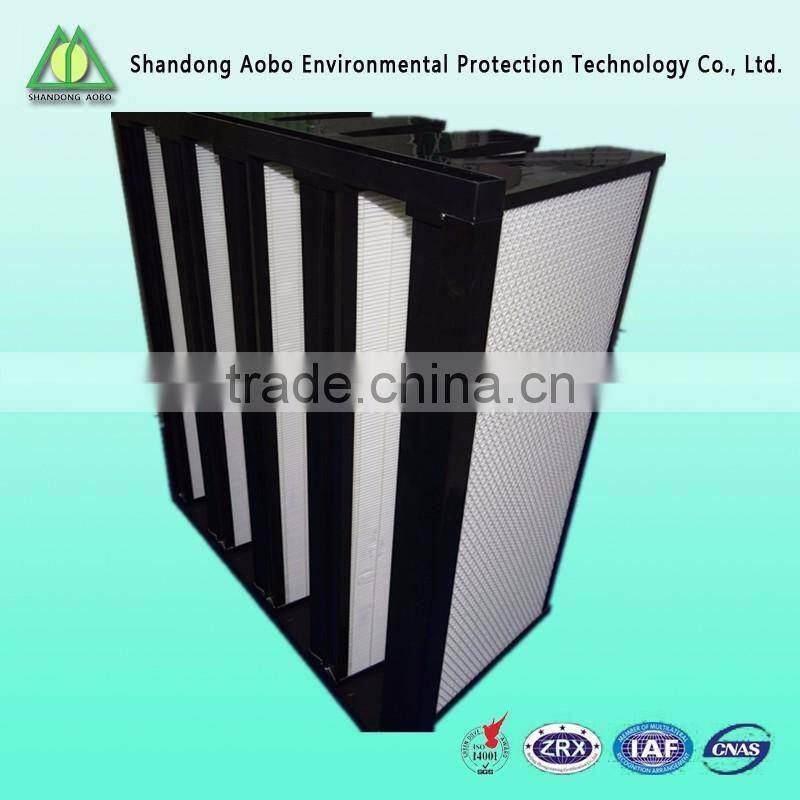

2. Large dust holding capacity with long life span, V-bank mini-pleat air filters.
3. Multi-Efficiency from H10 to H14, customized frames such as: Plastic, Aluminum, Stainless Steel, etc
Optional

Customized size.

elling Units: Single item
Single package size: 60X60X50 cm
Single gross weight: 1.0 KG
Package Type: To be packed in cartons

Shandong Aobo Environmental Protection Technology Co., Ltd. was established in 2007 with a registered capital of 50.08 million yuan, covering 150 acres, the company has advanced production equipment and scientific equipment, the main products are high temperature resistant fiber layer filter materials, filter bags, filters, bags cage and large efficient dust removal equipment, is China Association of filtration and separation unit, China's environmental protection industry backbone enterprises.

The company's existing production and R & D center construction area of 100,000 square meters, equipped with advanced detection equipment more than 30 sets. And with the Shandong Academy of Sciences Institute of New Materials, Donghua University and the National Testing Center of Northeastern University media to establish a science and technology partnership, to become co graduate workstation. The company's technology center in 2011 by the Shandong Provincial Science and Technology Department approved the construction of a "baghouse Shandong Province Engineering Research Center", in 2012 was named the Shandong Province Enterprise Technology Center. The company in 2013 was identified as provincial high-tech enterprises.

Up to now the company completed a total of four national scientific and technological innovation projects ("863", the Torch Program, a national new product plans, Innovation Fund), seven provincial innovation projects, municipal technical innovation projects more than 10, have been granted patents 15 items, including patents 4. Up to now the company involved in the preparation of national, trade and local standards made six, now existing air pollution emissions from Shandong Province is marked by the company involved in the preparation. Establishment of standards in the industry to effectively enhance the high ground, effectively gave birth to the market, to enhance the value of the products.

Rely on scientific and technological progress and constantly improve product quality, business models and constantly updated market share increased year by year, in waste incineration, iron and steel metallurgy related dust, coal-fired power plants continue to expand the scope of services involved in bag sales, manufacturing and service outsourcing equipment operators, BOT multiple channels of cooperation projects, and the success of Huaneng Power, Huadian Power International, China United Cement and other large enterprises.
