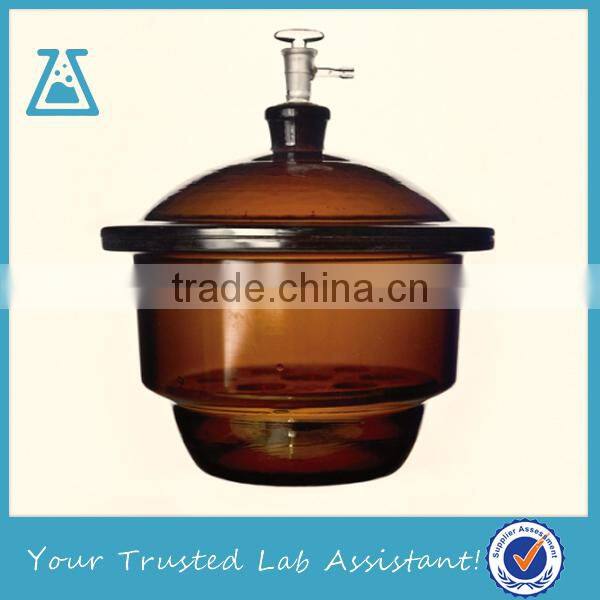

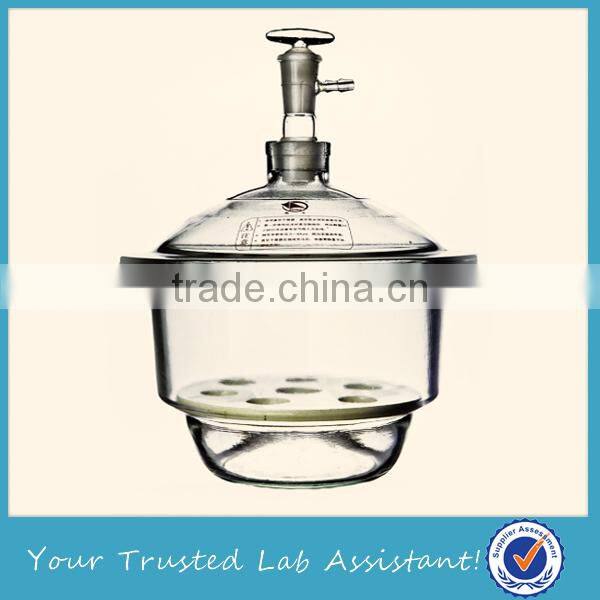

Vacuum desiccator
This desiccator has a rugged 24/29 standard taper stopcock with tooled hose connections that serve as the vacuum inlet. It is designed so that its manipulation is not affected by the vacuum. To introduce vacuum into the desiccator, loosen the stopcock to disengage the PTFE plug from contact with the glass. A half turn from this position closes the desiccator. This design eliminates the need for grease. The tubulation O.D. is approximately 10mm.
This desiccator is designed for general analytical work.
Drying of moist samples and storage of moisture-sensitive substances.
| Code | ID | Depth to plate | Total height | Diameter of porcelain plate | |
| mm | support mm | mm | mm | ||
| ZY1351001 | 100 | 50 | 165 | 92 | |
| ZY1351002 | 150 | 80 | 220 | 135 | |
| ZY1351003 | 180 | 100 | 280 | 150 | |
| ZY1351004 | 210 | 120 | 320 | 185 | |
| ZY1351005 | 240 | 130 | 360 | 210 | |
| ZY1351006 | 300 | 165 | 450 | 275 | |
| ZY1351007 | 350 | ||||
| ZY1351008 | 400 | ||||
1.Design for use under full vacuum;
2.Due to the high wall thickness and the reduced thermal shock resistance under pressure loading , the desiccators must not be heated on one side only or heated using a naked flame;
3.Before evacuation , it is recommended that the glass surface of the desiccators be checked for damage such as scratches ,cracks or nicks. Damaged desiccators must not be used for safety reasons;
4.Never expose desiccators to abrupt pressure changes, do not suddenly ventilate evacuated vessels.
