PBT Tapered Filament for Toothbrush

Specifications

Synthetic Filaments For Brushes/Brooms
Material:PET/PBT/PP/NYLON/PA/PE
Sizes:18mm-1200mm
Hollow,Tapered,Crimped
Any Colors

PBT Tapered Filament FOR TOOTH BRUSH MANUFACTURING

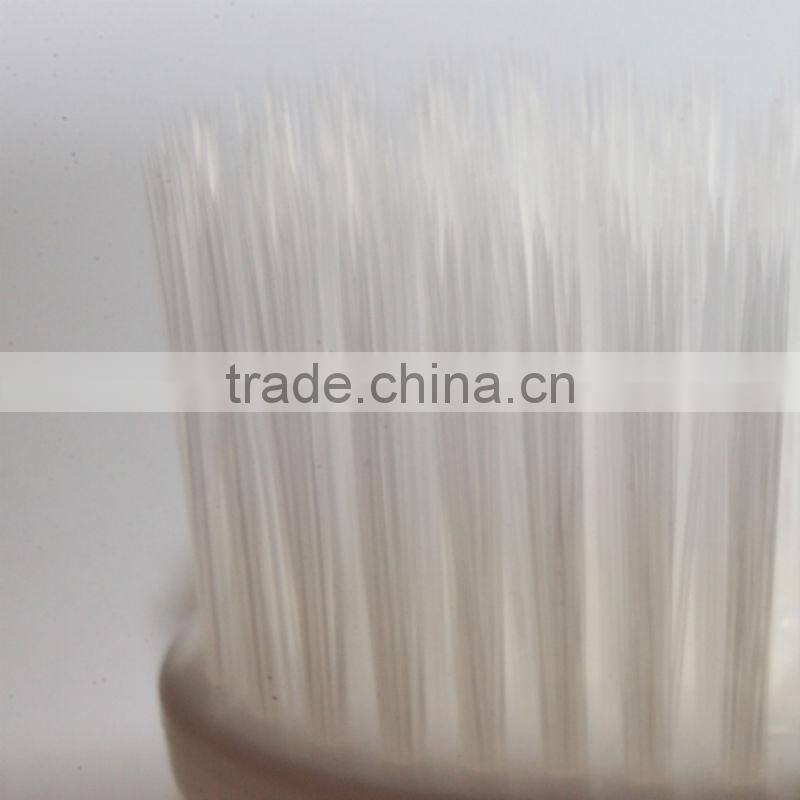

Tapered bristles are made of PBT (polybutyleneterephthalate) filaments chemically treated to produce the unique tapered ends. PBT tapered filament is divided into single tapered PBT filament and double tapered PBT filament. Single tapered PBT filament is used for processing paint brush. And Double tapered PBT filament is used for processing toothbrush and cosmetic brush ,etc.







PBT Single Tapered Filament

Diameter :0.05~0.65mm
Cross-section: Upon customer's request
Cut length: 26mm or above ±1.0mm
Standard Cut Length: Upon customer's request

Bundle Diameter: 54±2mm
Melting Point: 223°C
Package: PE tupe or PVC shrink film





PBT Double Tapered Filament



Diameter: 0.05~0.65mm
Cross-section: Upon customer's request
Cut length: 26mm or above ±1.0mm
Standard Cut Length: Upon customer's request
Bundle Diameter: 54±2mm
Melting Point: 223°C
Package: PE tupe or PVC shrink film







PBT NON-Tapered Filament(Generally PBT Filament)



Generally PBT filament is used for processing toothbrush, paint brush and cosmetic brush, etc.
PBT resin are melt-extruded into filaments, cooled in water, stretched, and annealed in hot-air chambers. These filaments have good dimensional stability, good bend recovery, and brilliant colors.



Diameter:0.05mm or above
Cross-section: Upon customer's request
Cut length: 25mm or above ±1.0mm
Standard Cut Length: 1200mm
Bundle Diameter:50±2mm
Density: 1.30g/cm3
Melting Point: 223°C
Package: White crepe paper,PEtube,PEwrap,Spool
Qualified Tests:RoHS,EEC



Standard Product Descriptions





• Diameter

Diameters are available from 6 mil(0.152mm) to 9 mil(0.228mm) as shown on the left.



• Length

The length ranges of the filament are available from 16mm to 34mm as shown on the left.

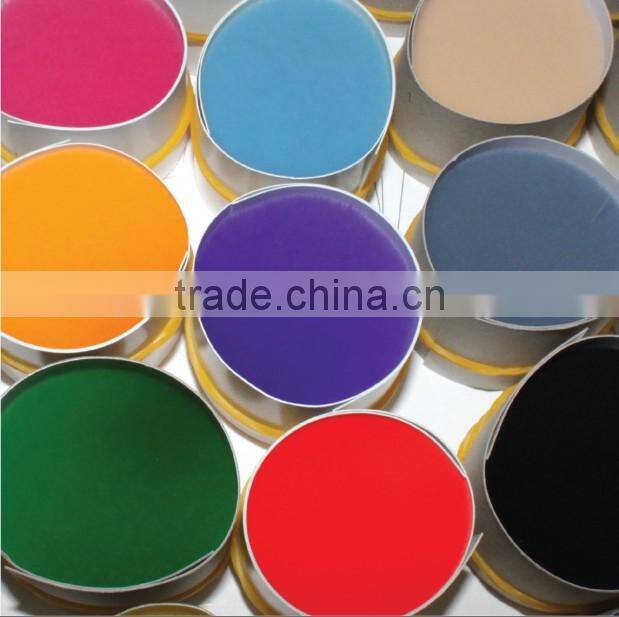

• Colors

Over 30 colors are offered in addition to Natural white. They will be customized by your color preference as well. Please see sample color code for current selection.



• Hanks

Each hank (bundle, diameter of 47-52mm and length of 30mm) is wrapped in specified paper.





• Standard Packages

Standard Packages for hanks are corrugated cartons of about 25kg(One carton is composed of approximately 625 hanks) net weight per item of one diameter, length, color, and crimp.

Net weight is calculated without wrapping paper. The filament materials will be packaged suitable and ready for your manufacturing automation.These options may vary according to customer’s preference.





• Minimum Order

Minimum order quantities for standard products are 300kg for size 6mil to 9mil. These options may vary according to customer’s preference.





Why PBT is right For your company?

DAMI provides professional and specialized high quality PBT toothbrush filaments to toothbrush manufacturing company.



Here are three reasons why our PBT Filaments are rightfor your company.

1. The demand for PBT Filaments has dramatically increased in Japan,South Korea and China since its introduction in 1999.



2. PBT is more cost effective than Nylon filaments without lossdurability and quality.



3. Compared with other competitors, our unique PBT Tapered Filaments, as short as 15mm, can be manufactured for power/Electric toothbrushapplications. We are constantly research and development of shorter length.



Our mission is to provide the high quality toothbrush filament products to our valued customers and to fulfill our customer’s mostchallenging applications.

DAMI will continually deliver valuable productsand services to you.





What is PBT filament?

PBT (PolybutyleneTerephthalate)

PBT filament has excellent performance of toughness,abrasionresistance,low humidity absorption and color fasyness, And its heat-resisting performance, climate-resisting performance, electric performance and bearing electric performance are good. Because of its moisture rate is low, it’s very suitable for processing the brushes which are working in the wet environment.PBT filament can be sterilized at extremely high temperatures, it is suitable for food-industry brushes. Comparing with Nylon 612, it’s more economical, and always being perfectly substituted in toothbrushes or cosmetic brushes.



PBT Monofilament Properties:

• Excellent stiffness in wet or dry conditions

• Excellent bend recovery

• Low absorption in water

• Good abrasion resistance

• Excellent resistance to impact

• Excellent resistance to organic solvents

• Excellent resistance to heat

• Excellent resistance to oxidation

• More durability than Nylon filaments





Properties	PBT	Nylon
Water Absorption,24hr(%)	0.08	3.0
Bend Recovery(%)	94	90
Mold Shrinkage(%)	1.7	1.1
Crimp Rigidity(%)	43.7	22.4
Dimension Stability in wet and dry conditions(%)	0	1.5
Initial modulus(cN/dtex)	2.4	2.1
Dendity(g/cm3)	1.35	1.14
Melting Point(°C)	224	210
