2 Heads Tapered PBT Filament for Toothbrush

Specifications

2 heads tapered PBT filament for toothbrush

PBT Single Tapered Filament

Diameter :0.05~0.65mm
Cross-section: Upon customer's request
Cut length: 26mm or above ±1.0mm
Standard Cut Length: Upon customer's request

Bundle Diameter: 54±2mm
Melting Point: 223°C
Package: PE tupe or PVC shrink film

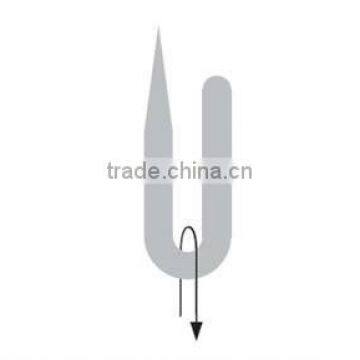

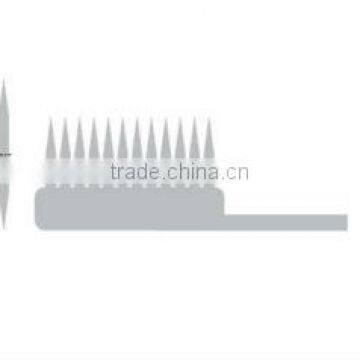

PBT Double( 2 heads) Tapered Filament

Diameter: 0.05~0.65mm
Cross-section: Upon customer's request
Cut length: 26mm or above ±1.0mm
Standard Cut Length: Upon customer's request
Bundle Diameter: 54±2mm
Melting Point: 223°C
Package: PE tupe or PVC shrink film

PBT NON-Tapered Filament(Generally PBT Filament)

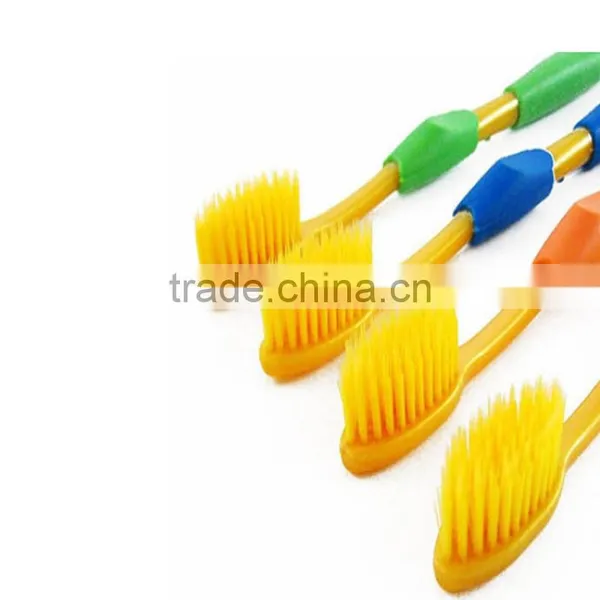

Generally PBT filament is used for processing toothbrush, paint brush and cosmetic brush, etc.
PBT resin are melt-extruded into filaments, cooled in water, stretched, and annealed in hot-air chambers. These filaments have good dimensional stability, good bend recovery, and brilliant colors.

Diameter:0.05mm or above
Cross-section: Upon customer's request
Cut length: 25mm or above ±1.0mm
Standard Cut Length: 1200mm
Bundle Diameter:50±2mm
Density: 1.30g/cm3
Melting Point: 223°C
Package: White crepe paper,PEtube,PEwrap,Spool
Qualified Tests:RoHS,EEC

• Standard Packages

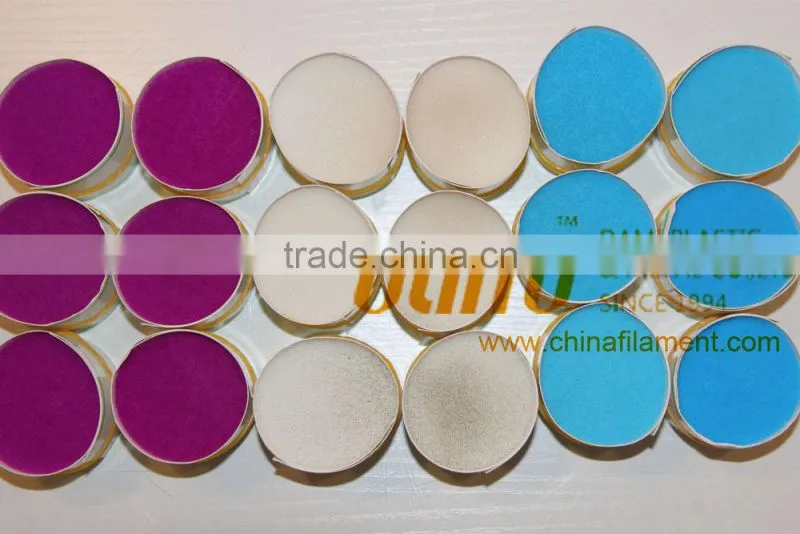

Standard Packages for hanks are corrugated cartons of about 25kg(One carton is composed of approximately 625 hanks) net weight per item of one diameter, length, color, and crimp.

Net weight is calculated without wrapping paper. The filament materials will be packaged suitable and ready for your manufacturing automation.These options may vary according to customer’s preference.
