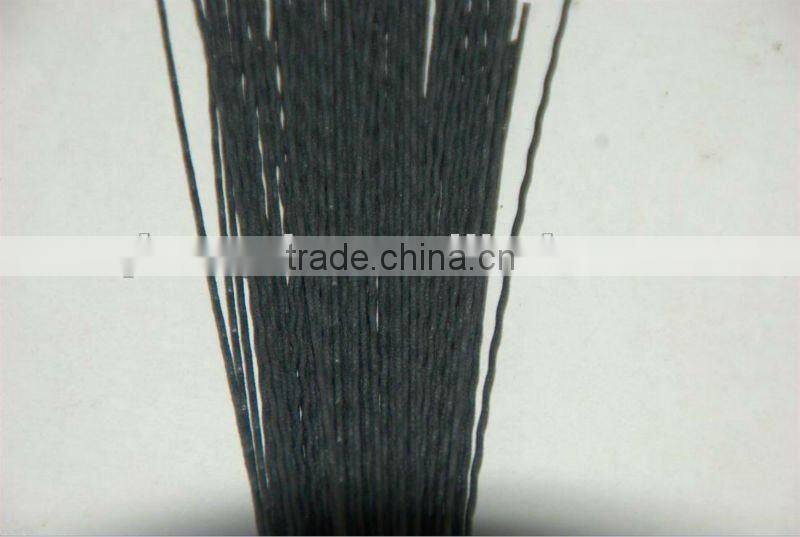

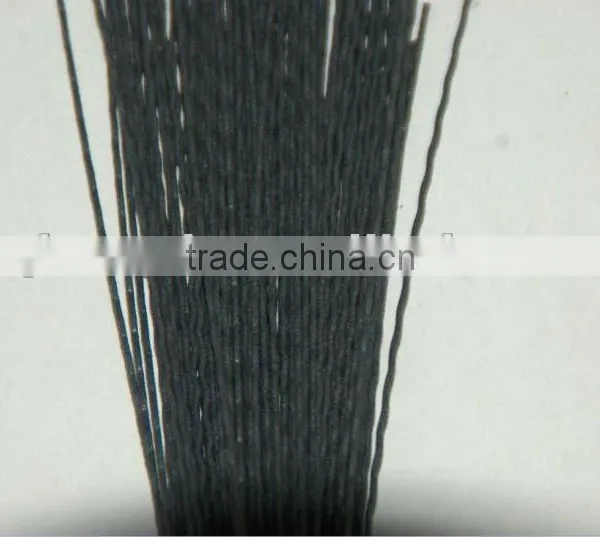

Coated Abrasive Filament



Coated abrasive filament is a newly developed product which is to follow up with spooled abrasive filament and the automatic brushware equipment as well. There will be a layer of coating in its surface, which is to improve the lubrication. This will make it possible to avoid the abrasion of machine in the producing process, and extend the life of equipment.

1.Specification: as general abrasive filament

Abrasive filaments are made of nano-particle modified nylon as carrier and 36~1000 mesh abrasive particles such as silicon carbide, alumina, and diamond grinding dust. The hot melts from the above are extruded to form abrasive filaments that are strong and heat resistant under wet or dry conditions.
Application :Main applications are devices for workplace deburring, grinding, and polishing of the surfaces of steel, stone, and other materials. Also useful for general surface treatment.


2.Feature:
1.Easy to backing-off with spooled specification, improve the productivity.
2.Avoid the abrasion of brushware machine, adapt itself to the automated precision equipment.
3.good water-resistance, good rigidity.


3.Specification:

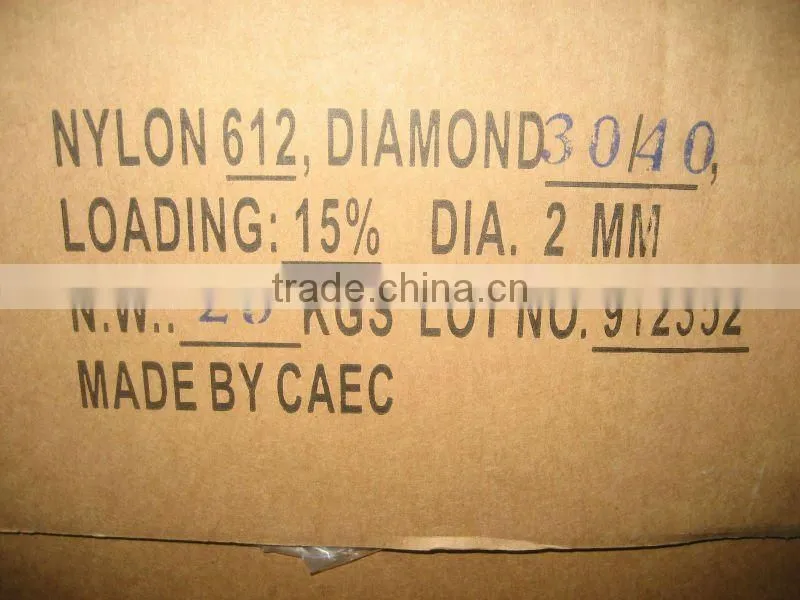

Raw Material	PA6,PA610,PA612
Grit	silicon carbide,aluminum oxide, diamond
Grit Size	36#,46#,60#,80#,120#,180#,240#,320#,500#,600#,800#,1000#
Grit Loading	15%-30%
Diameter	0.3-2.0mm
Color	Natural
Length	1250±10mm
Binding Diameter	45~51mm
Package	25kg/piece,30kg/piece
