Tactical Professional Hunting 1000 Lumens CREE T6 LED Flashlight With Strobe Light Attached With Red Laser Sight

Name: Tactical professional hunting 1000 lumens T6  LED light with quick start constant red laser sight includes with full rechargeable battery and charger set and optional ring mount and scope mount in metal package.

Model:  ES-LS-1KLMR

Product Origin: China

Supply Ability: 1000 pcs/month

Minimum Order: 100 pcs

Delivery Lead Time for MOQ: 20-30 days

TECHNICAL DESCRIPTION

Wavelength for green laser: 625-660nm

Power Output:  10W for LED light and 2-3mw for red laser

Laser Type (mw): CLASS IIIA<5

Battery:  1x26650 rechargeable 4200mAh battery  3.7V 1pc

Continuous Runtime:  2.5 hours (both red laser with led light working on), 120 hours (only red laser), 3 hours (only led light)

Products color: Black with Hard anodize


LED detailed information

LED model: CREE T6 LED

Power: 3W

Diameter: Ø 38 mm

Length: 189 mm

LED brightness: Up to 1000 lumens blinding beam, Bright sidelight

Light color: Cold white

Working Temperature:-40 ~ +55

Light attenuation: Less than 3% after 10k hours

Life time: ≤ 50000 hours

Laser detailed information

Diameter: Ø 5.6 mm

Length: 5 mm

Wavelength: 625-660 nm

Working Temperature: -20 ~ +50

Laser Spot Diameter:  15-25mm @ 50m

Life time: ≤ 5000 hours

Working volt: 3.7V

Weight with Battery:  240g for the torch without battery and tail pad;  345g for torch with both battery and tail pad switch installed on.

Warranty: Extended Warranty of 13 months since shipment.

Construction:  Aluminium alloy 6061-T6 with black hard anodized finish

Finish: Anodic oxidation/ V' r3 black

Operation: Ambidextrous Momentary/Steady on-off Switch; Pressure pad switch

Rail type:  MIL-STD-1913 Picatinny Rail

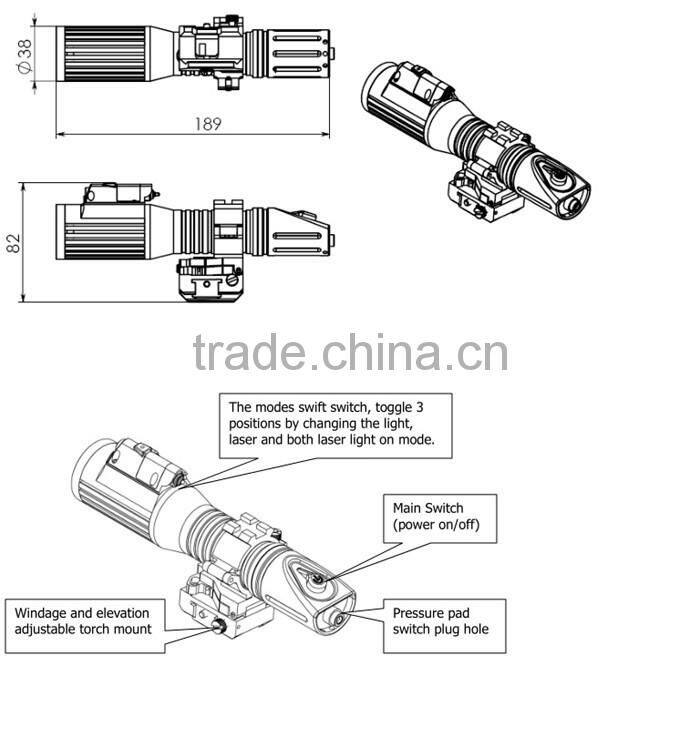

The Product design and dimension with Using guide on the switches images below:

KIT INCLUDES

1x Tactical 1000 lumens LED Flashlight Illuminator Torch with Red Laser
1x Remote Pressure Pad with wire Plug switch
1x Rubber cover on/off push button switch
1x IMR2665 rechargeable Lithium battery with 4200mAh
1x Weaver rail riflescope ring Mount (Φ 25.4mm and Φ 30mm or 34mm )
1x Windage and elevation adjustable laser mount (Φ 25.4mm and Φ 30mm)
1x Front exit lense Rubber cover  or Green Light Filter Lens
3x Allen wrenches
1x Aluminium case with individual inner carton

PACKING

Unit Weight:  240g for the torch without battery and tail pad;  345g for torch with both battery and tail pad switch installed on.

Unit Weight: 1.80 kgs/full set package
GW for individual unit set with package: 2.0kgs
G. W: 16.00 kgs
N. W: 15.00 kgs
CTN: 7 PCS
Aluminium case size:  275*210*97
Outer inner box size: 310*250*110mm
Carton Size: 62cmX52cmX38cm

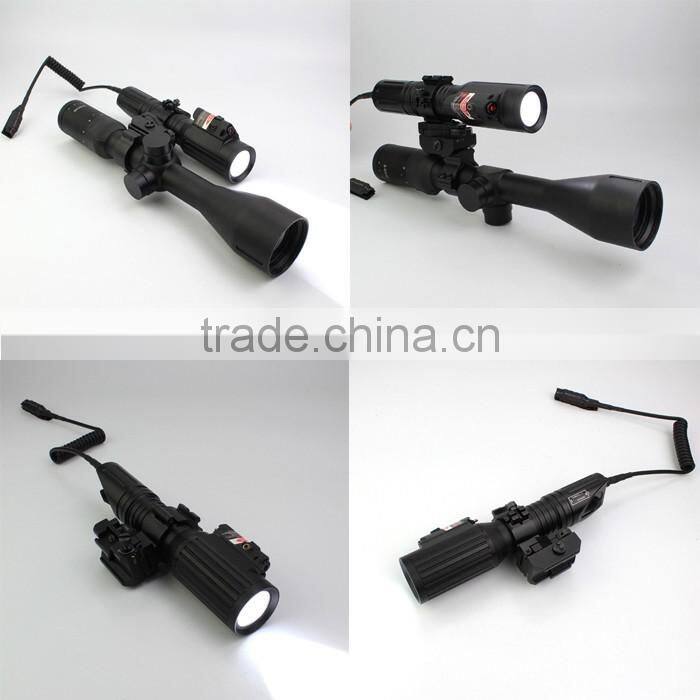

The 1000 lumens Torch/light combo mounting on the riflescope with the adjustable mount perfect view from different angles:

FEATURES

Quick target acquisition

Lightweight

Compact

High Brightness on LED

Flexible Mount System

Safe and adjustable

Dust and Shockproof

Ambidextrous Momentary/Steady on-off Switch

Machined anodized aluminum housing

Adjustable mount flexibility that can accommodate the Glock or Picatinny (1913) accessory rails.

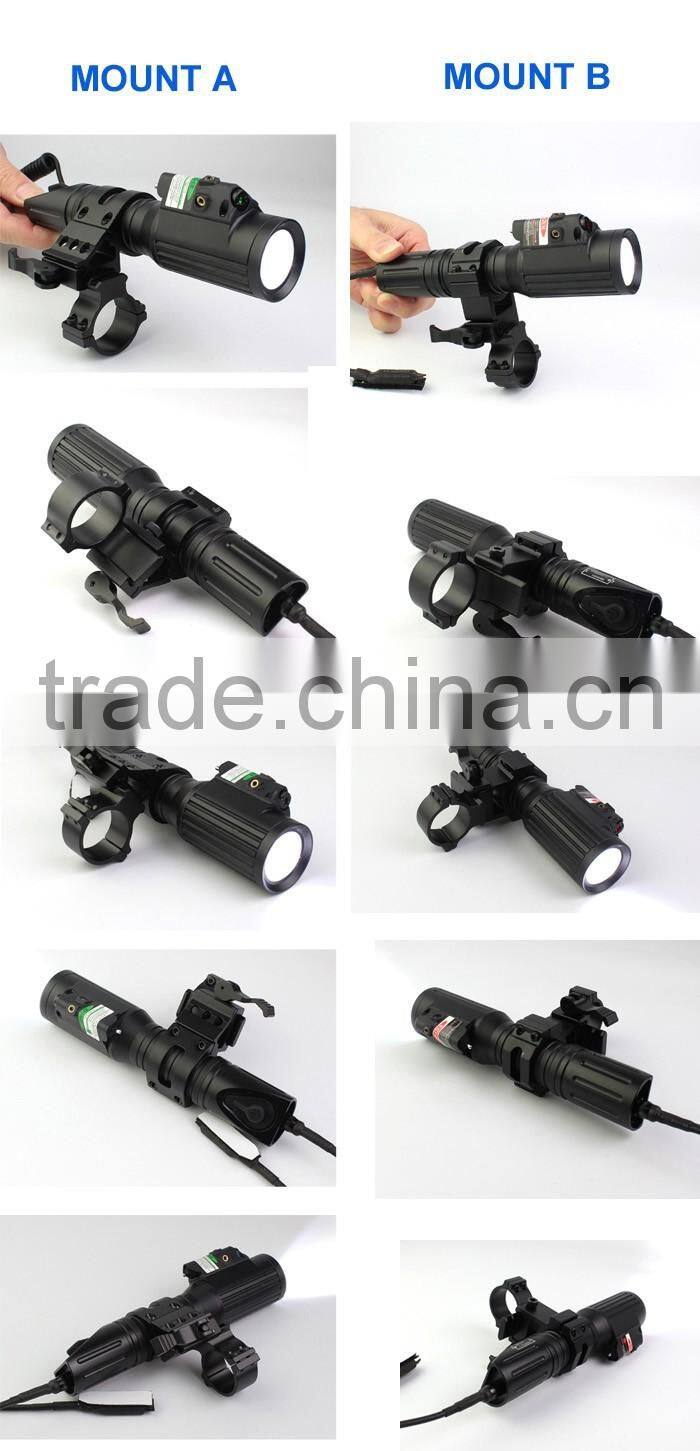

Besides, we also offered 2 kinds of Mount A and Mount B quick release mount to replace the windage and elevation adjustable mount if the adjustable mount is not needed for mounting this torch, see below 2 opional QD mount to replace the adjustable mount:

LASER SIGHT and LED LIGHT ZEROING

For a laser mounted below or to the side of the bore, there is only one distance where the bullet path will coincide with the laser sight line, this point is the zero range.

Laser adjustment and the muzzle velocity of the bullet determine where this point occurs. The user must decide how high above or below the sight line the bullet can be allowed to strike and adjust the sight accordingly. At distances less than the zero range the bullet will be above the sight line. Beyond the zero range the bullet will be the sight line.

If mounted to the side, the bullet will also deviate to the side of the laser line, as well as up and down. In practice, a ES-LS-1KLM  with laser combo on a machine gun can be adjusted to keep the bullet strike within about 2 high and 2 low out to about 100 feet.

The LED also can adjust the windage and elevation with the intalled windage and elevation adjustable mount.

Our Service
Except man-made mistakes, we will exchange the defective with a brand new one within 14 days after you get our product. According to the guild regulations customer shall be responsible for the returning shipping fee.

Warranty: 1 Year free warranty with up to 5 years limited warranty for this model designator.
