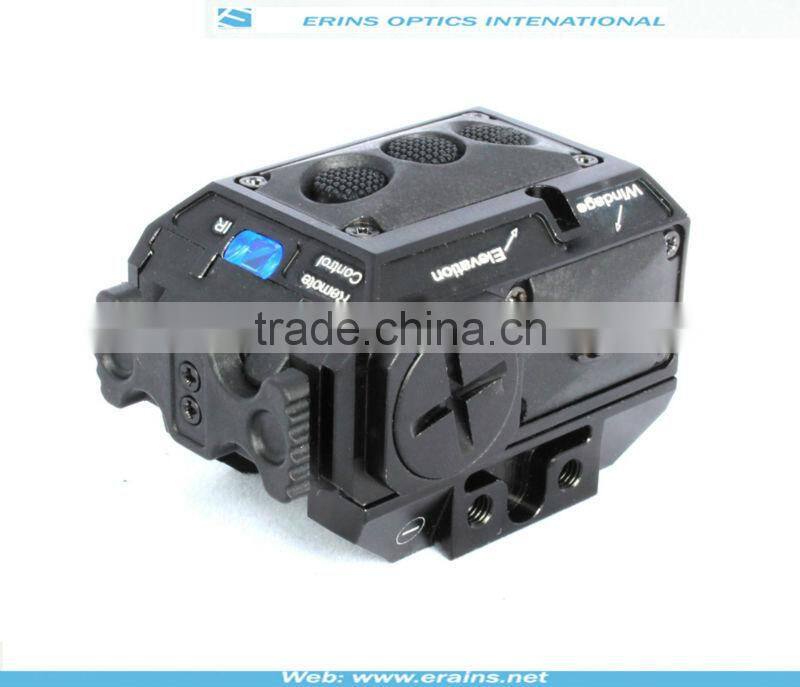

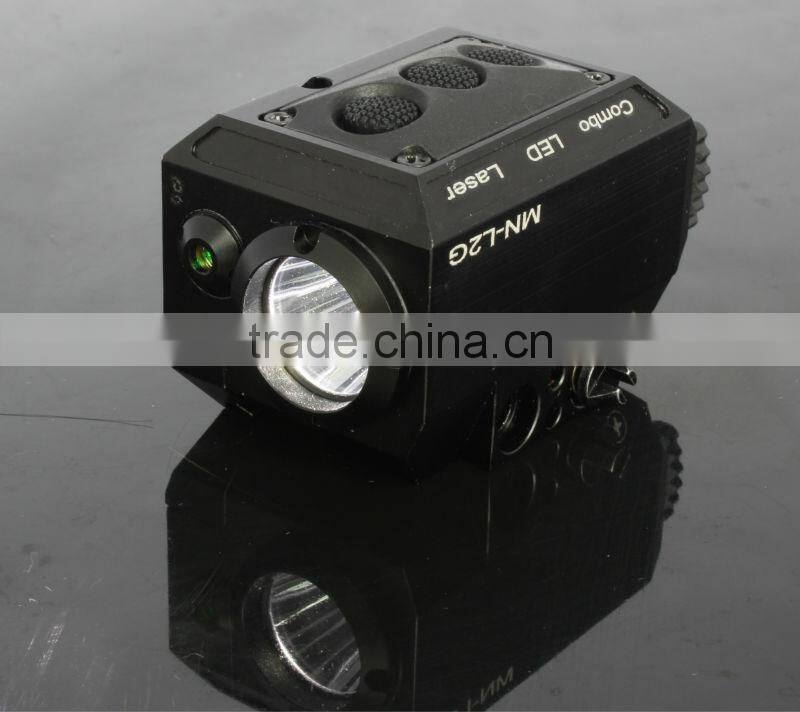

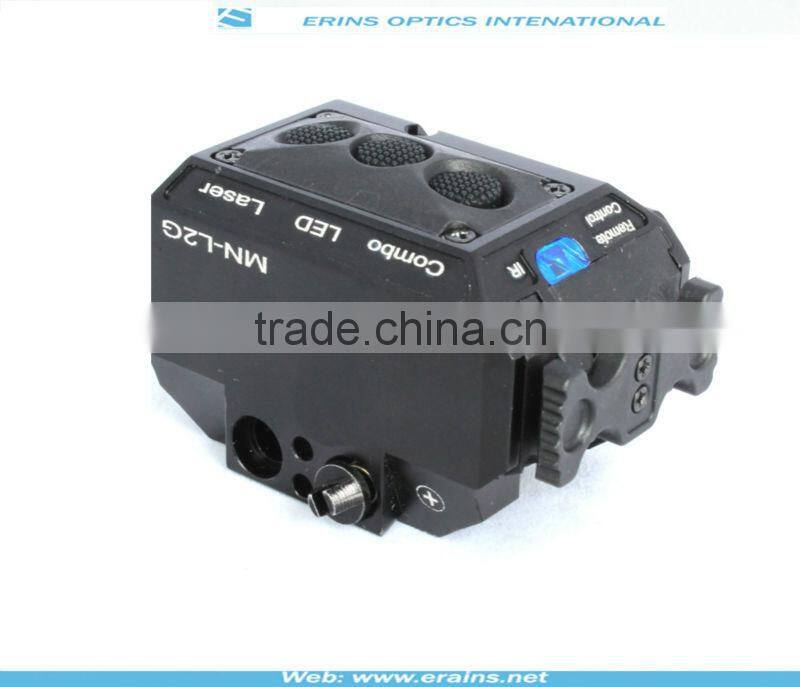

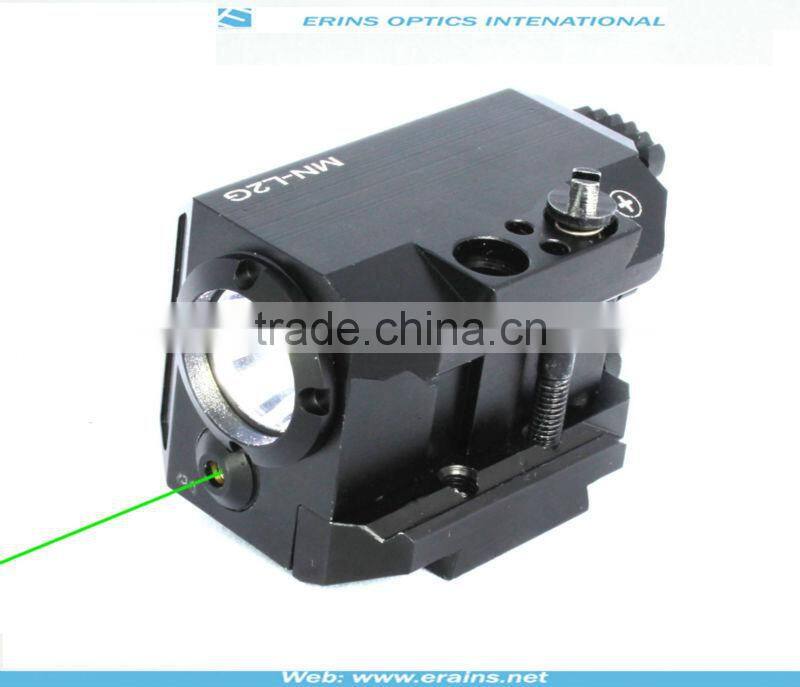

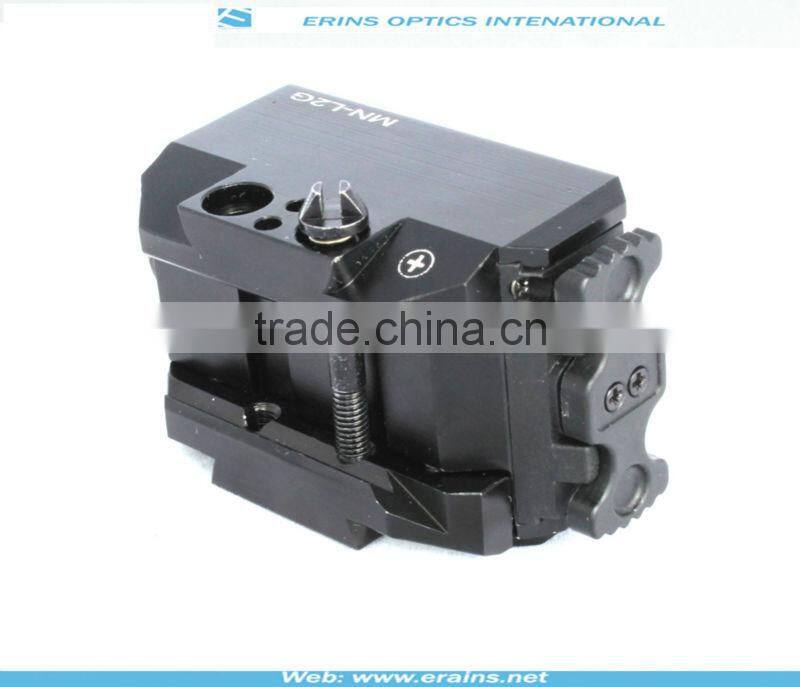

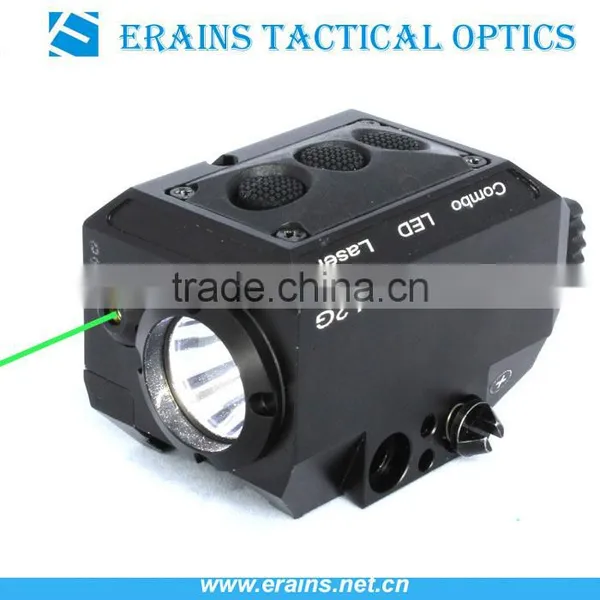

New compact square tactical green laser sight and strobe 200 lumen CREE Q5 LED light combo (FDA certified)

Specifications

Tactical Green laser and strobe led light
1. Green laser with 532nm 5mw quick start
2. 200 lumen CREE Q5 led light

Model: ES-MN-L2G



Name: New Tactical compact square Green laser sight and strobe led light combo



FDA accession number is available for this model.



Product Origin: China

Supply Ability: 1000 pcs/month

Minimum Order: 100 pcs

Delivery Lead Time for MOQ: 20 days







Tactical compact square Green laser sight and strobe led light combo TECHNICAL DESCRIPTION

Wavelength: 532nm

Power Output: 3 W

Laser Type (mw): 5

Battery: 1x CR123 Lithium Batteries

Battery Life: 1.5 hours of runtime for both laser and light on, 9 hrs (only laser), 2 hrs(only light)





LED detailed information

LED model: CREE Q5 LED

Power: 3W

LED brightness: Up to 225 lumens blinding beam

Light color: Cold white

Working Temperature:-40C ~ +85C

Light attenuation: Less than 3% after 10k hours

Life time: ≤ 50000 hours





Laser detailed information

Wavelength: 532 nm

Working Temperature: -10C ~ +50C

Life time: ≤ 5000 hours

Working volt: 3V





Tactical compact square Green laser sight and strobe led light combo  Info:

Weight with Battery: 124g

Housing Dimension:  63(L)*40(W)*40(H)mm

Warranty: Extended Warranty

MaterialAluminium alloy 6061-T6 with black anodized finish

Operation: Ambidextrous Momentary/Steady on-off push 3 button Switches + end push switch with blue light indication.

IR remote control siwtch (optional, be out later)

Rail Mount: Integrated mount











Tactical compact square Green laser sight and strobe led light combo  KIT INCLUDES

Compact dual square green aser and LED Flashlight combo

Calibration tools

1x CR-123A lithium battery

User manual







Tactical compact square Green laser sight and strobe led light combo PACKING

Packing: 1 unit/gift box, 125 units/master carton

Unit package: Gift EVA box or white box

Master Carton: Top cardboard carton







Tactical compact square Green laser sight and strobe led light combo FEATURES

Quick target acquisition

Lightweight

Compact

Safe and adjustable

Dust and Shockproof

Ambidextrous Momentary/Steady on-off Switch

Machined anodized aluminum housing

Fits existing light bearing holsters

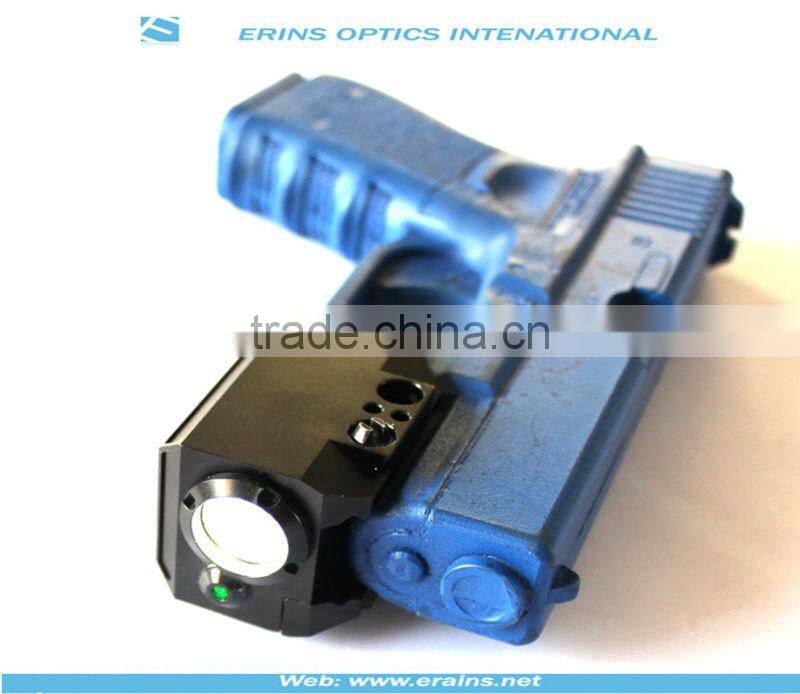

Adjustable mount flexibility that can accommodate the Glock or Picatinny (1913) accessory rails.







LASER SIGHT ZEROING

For a laser mounted below or to the side of the bore, there is only one distance where the bullet path will coincide with the laser sight line, this point is the zero range.

Laser adjustment and the muzzle velocity of the bullet determine where this point occurs. The user must decide how high above or below the sight line the bullet can be allowed to strike and adjust the sight accordingly. At distances less than the zero range the bullet will be above the sight line. Beyond the zero range the bullet will be the sight line.

If mounted to the side, the bullet will also deviate to the side of the laser line, as well as up and down. In practice, a ES-MN-L2 series combo on a handgun can be adjusted to keep the bullet strike within about 2 high and 2 low out to about 100 feet.





Tactical compact square Green laser sight and strobe led light combo  BATTERY SUPPLY

The ES-MN-L2G laser sight+LED light combo uses 1x CR-123 (3V) battery. The CR-123A negative and positive pole has been indicated on the housing.





DANGER: DO NOT use anything other than a CR-123 battery or rechargeable batteries with this product.
