SM Series Paint Triple Roller Milling Machine

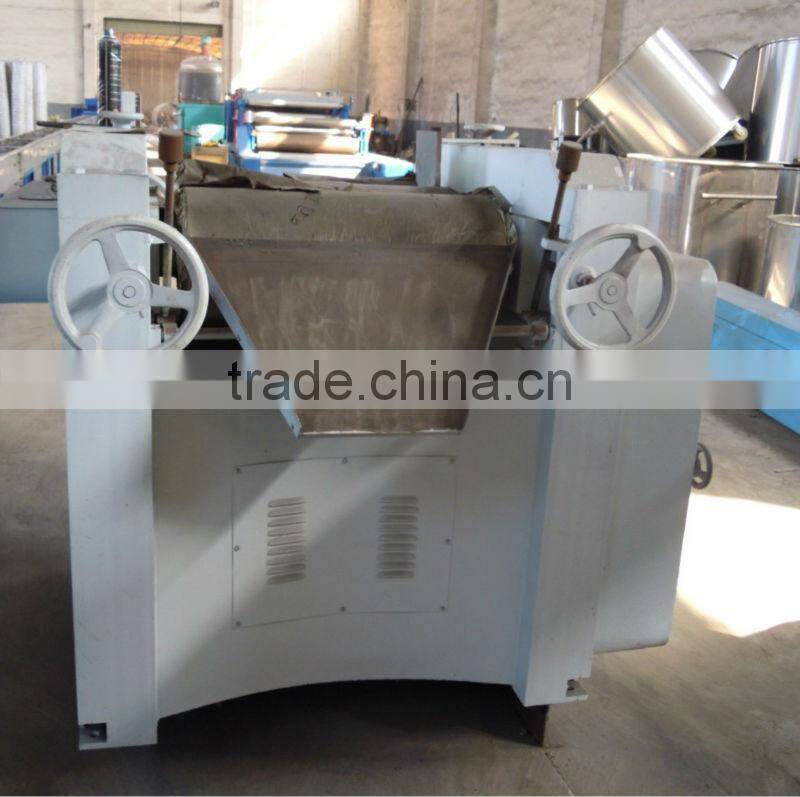

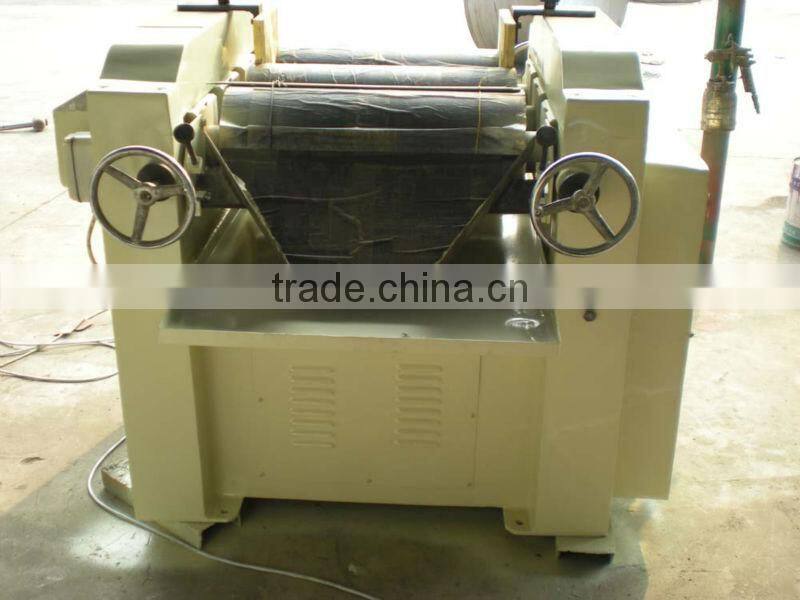

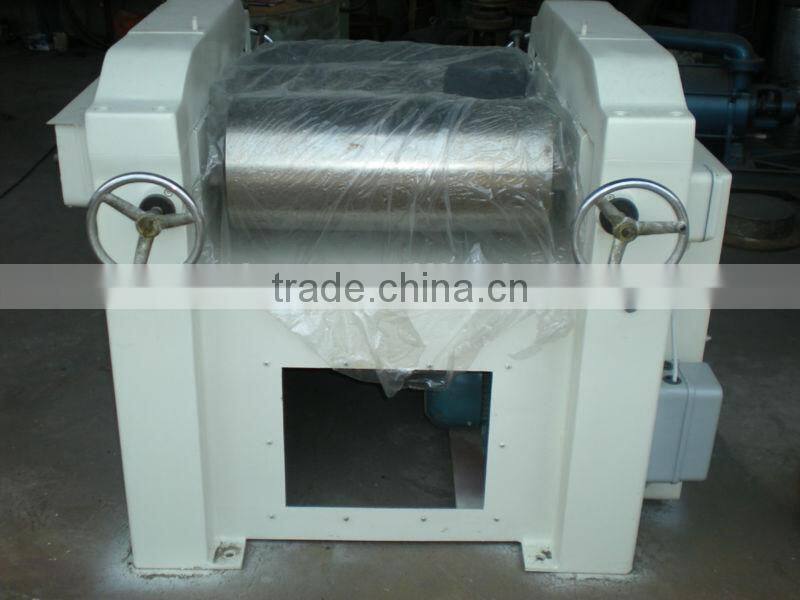

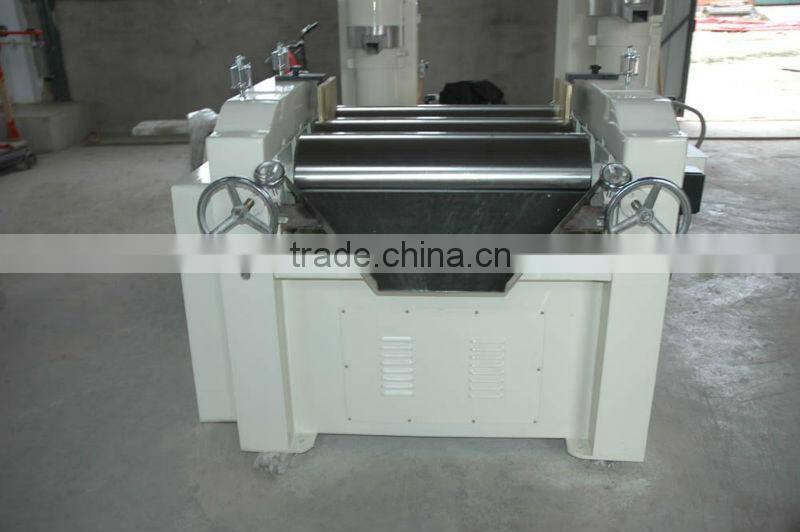

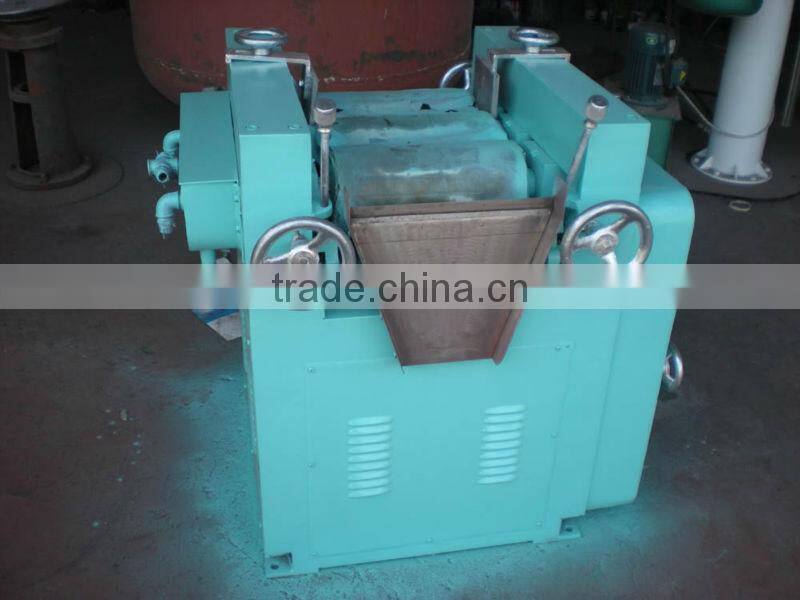

SM Series Paint Triple Roller Milling Machine photo-1
US$ 1,500 - 12,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
YUANDA
Model Number:
YD-SM
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name YUANDA
Model Number YD-SM

Specifications

SM Series Triple Roller Mill,can be widely used to process paste material such as pigment ,paint,printing ink,color,lipstick....





SM Series Paint Tripler Roller Milling Machine







Application:



Triple Roller Mill is ideal grinding and dispersing equipment to process high viscosity material.It can be mainly used in Paint,Printing-ink,Colour Paste,Plastic Paste,Cosmetic,Soap,Ceramics,Rubberetc.











Function: :Grinding ,Dispersing,Emulsifying,Colormatch,makes the material highly homogeneously mixed in it.







Model:from Lab model to Mass Production, S65 (Lab Application),S150 & S260 (Small production);S315 & S405 (Mass Production)







Remark: roller lenth& hardness of the roller can be adjusted according to clinet’s requirement.









TYPE
ITEM

S65



S150



S260



SM405



Roller Diameter (mm)

65

150

260

405

Roll Length (mm)

125

300

695

810

Roller speed ratio (Slow,Medium,Fast)

≈1:3:9

≈1:2.4:4.98

≈1:2.5:6.25

≈1:2.87:8.1

Roller Speed

Slow rollr/min

32

25.3

19.1

12.2

Medium rollr/min

89

63.25

54.5

40

Fast roll r/min

250

152

155.3

116

Roller speed ratio(before,middle,after)

7.8:2.8:1

6:2.5:1

8.13:2.85:1

9:3:1

Motor

Model

YL8024

Y100-4

Y160L-6

Y180L-6

Power kw

0.75

2.2

7.5

15

Speed    r.p.m

1400

1420

970

970

Capacity  (Reference)(kg/h)

1-5

8-15

18

38

Total Weight (kg)

80

600

2300

5218

Overall dimension (L × W × H) mm

440×420×400

820×800×920

1645×1350×1100

1980×1848×1300
