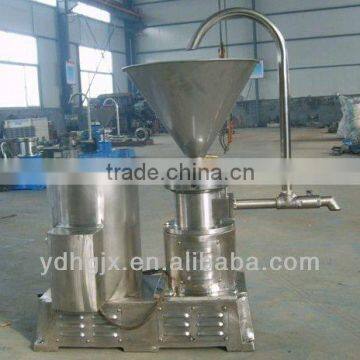

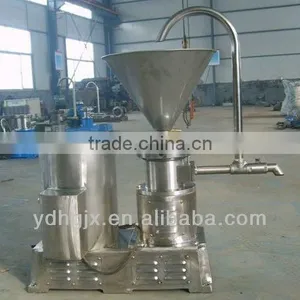

Colloid Mill for paint,bitumen,printing ink
- Qingdao
You May Like
Product Details
| Condition | New | Type | Grinder | |
| Product Type | Paint | Place of Origin | Shandong, China | |
| Brand Name | yuanda | Model Number | YD-JM | |
| Voltage | 220/380/415 V | Power(W) | 2.2-15 KW | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1,Colloid Mill for paint,bitumen,printing ink2,material:stainless steel/carbon steel
3,capacity:10-500 kgs/hour...
Colloid Mill for Paint,Bitumen,Ink
1. Main material can be Stainless steel or Semi-stainless steel.
2. With Scale Ruler adjust to precise production, adjustable fineness.
Water Cooling available.
3. Its working principles: Through high speed relative motion of Rotor and Stator, make the material get strong Shearing force, Friction and High mode Vibration. Effictively Crush, Emulsify, Homogeneity material to reach refined product.
4. Application: Food Industry, such as Peanut Butter, Soybean Paste, Jam Paste, Cream,Sesame/Tahini Paste, Gingli Paste, Galic Paste, Chili Sauce, Almond Butter, Cacao Paste, etc. Chemical Industry, such as Paint, Lubricant, Elestex. Daily Life products, such as Cosmetic, Toothpaste, etc.
5. Lab scale to Mass production.
Below is main CONFIGURATION for ur ref:
| Model | JM-50 | JM-85 | JM-130 | JM-240 |
| Capacity(kgs/hour) | 30-100 | 100-150 | 150-300 | 300-500 |
| Motor power(kw) | 1.5 | 5.5/7.5 | 7.5/11 | 18.5 |
| Voltage | 240V/380V/415V(3 Phase) | |||
| Frequency | 50HZ/60HZ | |||
| Speed(rpm/min) | 3000±100 | |||
| Material | Stainless Steel(The part that contact material) | |||
| Carbon steel(Machine base besides above parts) | ||||
| Processing finess (um) | 2-60 | |||
| Weight(kg) | 68 | 200 | 280 | 400 |
If any item make you interest,pls feel free to contact me for more detail,s
Awaiting your soon feedback,
Best Regards,
Jolin,
Laizhou Yuanda Chemical Industry Machinrey Factory,
Tel:0086-532-80983779
