Specifications
1.alkyd resin equipment2.stainless steel resin reactor, heating/cooling reactor
3.customize

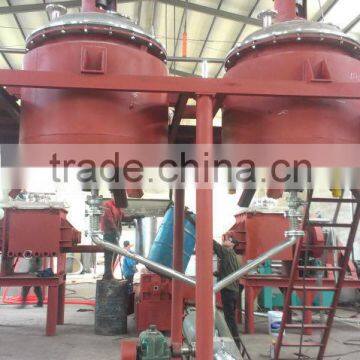

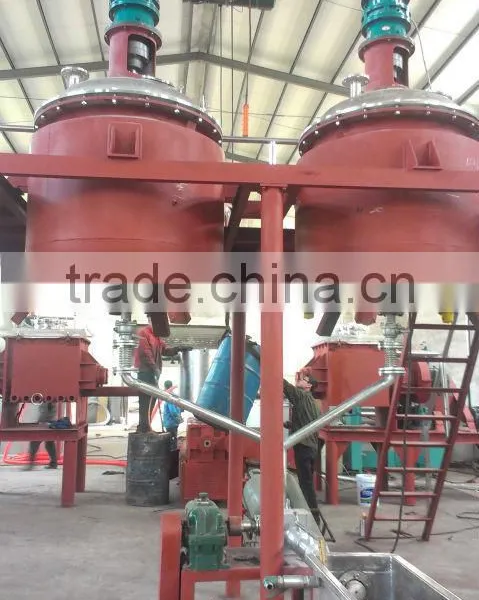

5000l Alkyd resin equipment
we have specialised in this kind of machine for many years.and have export to Saudi Aribia,Egypt,india etc Middle East countries ,and Philippines ,vietnam some Southeast Asia countries,the reasonable design and price ,enjoy good reputation in the international, as follows is the relevant information about the complete production line ,it's output is 10 ton,we have the design from 1 ton to 60 ton or more,if you have any detial requirment ,feel free to contact me ,we will send the suitable information to you.
Below is details of our 5Tons/day alkyd resin making plant:
A.5000L reactor
1.Inner material and thickness: 304 stainless steel plate, 10mm
2.outer material and thickness: carbon steel,8mm ,Plasma type mixer
3.electric motor: 11kw,4# cycloidal reducer 85 R.P.M.. .
chanical seal
B,1.vertical condencer: 5 square meter
diameter:280*1000,one elbow
2.horizontal condenser: 20square meter
§50 internal dish tube×8 laps(304 stainless steel)
C,one elbow+ one vocuum pump
D,Oil-water separator: 304 stainless 300L
E, buffer tank 500L
carbon steel Q235
F,Circulating pump
G,10000L dilute kettle
1.inner material and thickness:304 stainless steel,10mm
2.outer material and thickness: carbon steel,8mm ,Plasma type mixer
3. .electric motor: 15kw, 5# cycloidal reducer 85 R.P.M
H,boiler 100000 calories
any interest or questions, welcome contact us for more details.
Thanks &. Best Regards,
Anna Miller /Manager Mobile: +86-13012946572
Laizhou Yuanda Chemical Industry Machinery Factory ( Solid Factory )
