Specifications
1.polyester resin production line2.capacity from pilot to commmercial production
3.customize &. guide install

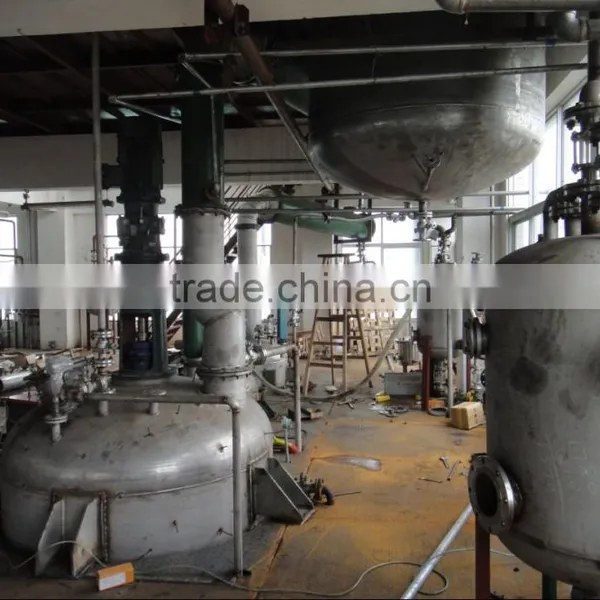

Stirred Tank Reactor for Polyester resin
--- Customize
1) Material can be 304 Stainless steel/316 Stainless steel or Carbon steel.
2) Blades with different shapes such as:Paddle Form,Frame Form,Scrapper Form etc.
3) Motor with Gear reducer;
4) Heating way mainly:Steam Heating,Thermal Oil Heating,Electric heating etc.
5) It can be widly used in Liquid Resin,Rubber,Pesticide,Glue,Dye,Medicine,Food Industry etc.
Here different Capacity os provded from 50L-20,000 L.Welcome all customers come to inqure!
| Capacity | 500L | 1000 L | 2000 L |
| Motor Power | 4/5.5 kw | 5.5 /7.5 kw | 7.5 /11kw |
| Inner shell material | 304 stainless steel | ||
| Jacket material | Carbon steel | ||
| Inner plate thickness | 5 mm | 6 mm | 8 mm |
| Jacket platethickness | 5 mm | 6 mm | 6 mm |
| Heating way | Steam Heating | ||
| Inner Diameter | 900 mm | 1200 mm | 1400 mm |
| Outer dimeter | 1100 mm | 1400 mm | 1600 mm |
| Speed | 65 RPM(with Cycloidal Gear reducer) | ||
| Stiring way | Paddle type | ||
| Inner dish coil(SS304) | §32 Cooling coil*6 circle | §32 Cooling coil*8 circle | §42 internal dish tube×6 laps |
| Seal type | Mechanical seal | ||
| Price Validity | 30 days | ||
| Payment Term | T/T 40% as downpayment,T/T 60% before delivery | ||
| Delivery Time | 30days after receipt of downpayment | ||
| Gurantee | 12 Months | ||
Lab Type Components:
1.50L Electric Heating Reactor 1 Set
2.100L Dilute Kettle 1 Set
Material of 304 Stainless steel
The complete production process:
1. put the material to the reactor kettle,start heating ,when the temperature reach about 100 degrees,it will produce gases,and the gas will into the separation column.
2. after part be cooling by the separation column, the rest gas into horizontal condenser,then condenser will cooling the gas ,after cooling into the catchment device.
3. part of material and water in the catchment device, separate material to reactor kettle,and exclude the water.(the process may be last about fifteen to twenty hours)
4. during the reaction process,in order to speed up, can extracting vacuum,when reach the time sampling, assay viscosity,if complify the requiment then cooling.
when the temperature reach 130 degrees,hit the raw materials to dilute kettle,and put material to dilute kettle, diluting , cooling ,then make the prodction you need.
Here we produce this polyester resin production line from 50L lab small plant to 10tons mass production lines,
we have already successfully sent our engineers to help with installation in Saudi Arabia, Thailand, Iran, etc,
If any interest, pls contact:
Ms. Anna Miller/ Sales Manager
