Complete Unsaturated Polyester Resin Production Plant
- QINGDAO
- T/T
You May Like
-
Stainless Reactor/Unsaturated Polyester Resin Equipment
-
Unsaturated Polyester Resin Reactor
-
Stainless Steel Unsaturated Polyester Resin Reactor With Coil Heating
-
Special Equipment Unsaturated Polyester Resin Production Line
-
Stainless Steel Unsaturated Polyester Resin Equipment
-
Unsaturated Polyester Resin Equipment/chemical Mixing Reactor
Product Details
| Condition | New | Mixer Type | Agitator | |
| Product Type | Other, resin,adhesive | Application | Liquid | |
| Additional Capabilities | Other, mixing,heating | Place of Origin | Shandong, China | |
| Brand Name | YD | Model Number | YD-FY-OO2 | |
| Max. Loading Capacity | 30000L | Voltage | 220V/380V/415V/440V | |
| Power(W) | 0.75-37kw | Dimension(L*W*H) | Can choose | |
| Certification | ISO9001 | Warranty | 12months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Unsaturated polyester resin equipment

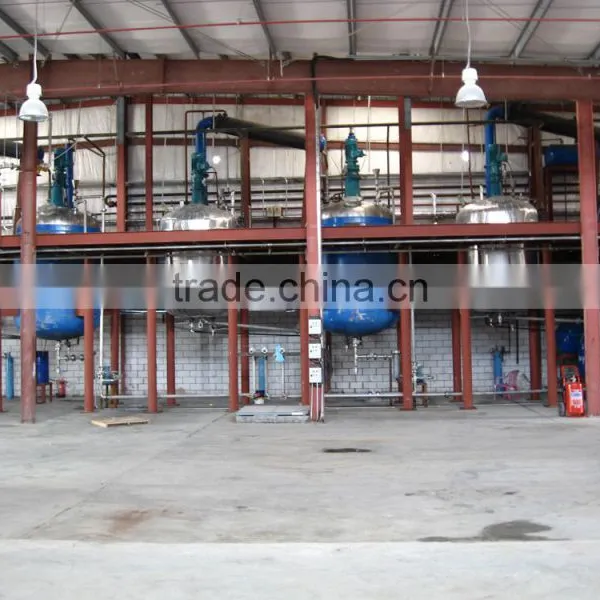

The factory production of unsaturated polyester resin equipment, by the vertical condenser, horizontal condenser, reaction kettle, water container, fractionating column of five parts.This set of equipment design is reasonable, the craft is advanced, is the ideal unsaturated resin production line.We can also according to customer's technical requirements, special processing production.
Technical parameters
| Reactor L | Filler volume | Vertical condenser area | Horizontal condenser area | Water storage device L |
| 50 | 0.002 | 0.1 | 0.29-0.5 | 8 |
| 100 | 0.005 | 0.19 | 0.58-1 | 30 |
| 300 | 0.01 | 0.22 | 1.49-2 | 53 |
| 500 | 0.015 | 0.38 | 2.08-4 | 70 |
| 1000 | 0.025 | 0.62 | 3.17-8 | 140 |
| 2000 | 0.042 | 1.12 | 5-12 | 245 |
| 3000 | 0.064 | 1.53 | 6-16 | 280 |
| 4000 | 0.098 | 2.07 | 8-18 | 320 |
| 5000 | 0.138 | 2.49 | 10-20 | 400 |
1. Installation and commissioning issue: We will send 1-2 technicians to assist with machine installation and commissioning, customer pays for their tickets, hotel and diet.
2. Warranty time:12 months from date of commissioning completion, but no more than 18 months from date of delivery.
3. Supply full English documents: including general installation drawings, pit design drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.
4. Exported experience to many countries, such as The USA, Russia, UK, Ukraine, Australia, Malaysia, UAE, Egypt, Mexico, Brasil, etc.
Advantages
1. Professional senior enginners to find the best solutions for you;
2. 15 years' production experience
3. Timely after-sale service, if any problem occurs, we would reply to you within 8 working hours;
4. Timely delivery,
5. Our experienced workers for site installation and commission
Laizhou Yuanda Chemical Machinery Factory, to create professional high-quality chemical machinery, plastic equipment, hardware accessories, resin equipment, master batch equipment and chemical equipment and so on. The plant is located in the beautiful Bohai Bay, the junction of Yantai, Qingdao, Weifang City, Laizhou. Here convenient transportation and strategic location, is an ideal place for business in the office.
The factory is a research and development, manufacturing and sales, after-sales service for the integrated enterprise. Number of years in mechanical design and development, experienced professional and technical management personnel. In a reasonable structure, durable, easy operation and maintenance, etc., to meet the different requirements of new and existing customers of products sold throughout the country trusted by the user. It has been rated municipal advanced enterprise, ministerial quality standards units, premium credit business.
Under the leadership of director Liu Xiaobin, establish and improve the production, sales and after-sale service of complete quality assurance system, equipped with a lean staff, lifting the user's worries.
Liu Xiaobin director with the staff welcomed all the friends patrons, and is willing to cooperate in good faith, to create the 21st century glory.
