wood glue /PVAC /PVA/White glue/liquid glue/paste making machie
--- Customize
----------------------------Instructions:
1). The chemical stainless steel pressure vessel

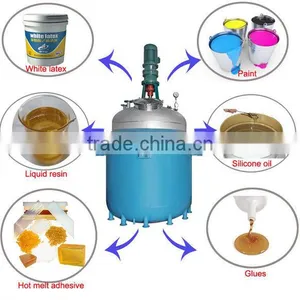

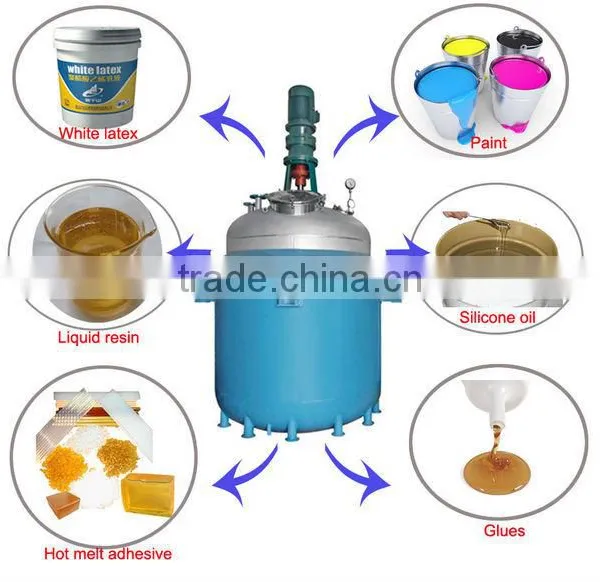

2). Widely used in making resins, adhesives, paints, cosmetics, pharmaceuticals and other chemical productions.
3). Mechanical seal.
4). Inverter for frequency control.
5). Jacketed type, outer-pipe type, outer-inner-pipe type.
6). Heated by oil, water, steam or electric.
7). Made of stainless steel.
8). Consists of body, gears, mixing devices, heating devices, cooling devices, seal composition.
9). Equipped with distillation column, condenser, water separator, collecting cans, filters ect.
10). Supply complete production line, as well as productin technology
---------------------------- Apply to:
1). unsaturated resins, alkyd resins, acrylic resins, polyurethane resins and other complete sets of production equipment.
2). lotion, white latex, PU glue, adhesive sets of production equipment.
3). waste silica gel pyrolysis, recycling equipment.
4). paint sets of production equipment.
5). complete sets of all kinds of fine chemical production equipment
Lab stainless steel pyrolysis chemical reactor Type Components:
1. 50L Electric Heating Reactor 1 Set
2. 100L Dilute Kettle 1 Set
3. Material of 304 Stainless steel
Below is main configuration of our glue making machine/reaction still for ur ref:
| Capacity | 50L | 100L | 200L | 500L | 1000L | 2000L | 3000L | 4000L | 5000L | 10000L |
| Motor Power | 1.1 kw | 1.5 kw | 2.2 kw | 3 kw | 4/5.5 kw | 5.5/7.5kw | 7.5 /11 kw | 11 kw | 11/15 kw | 15/18.5 kw |
| Inner Material | 304 Stainless steel | |||||||||
| Outer Material | Carbon steel | |||||||||
| Heating way | Electric heating | Steam heating/Thermal Oil heating | ||||||||
| Speed | 65 RPM (with Gear reducer) | |||||||||
| Sealing way | Mechanical Seal | |||||||||
| Stirring way | Paddle type | |||||||||

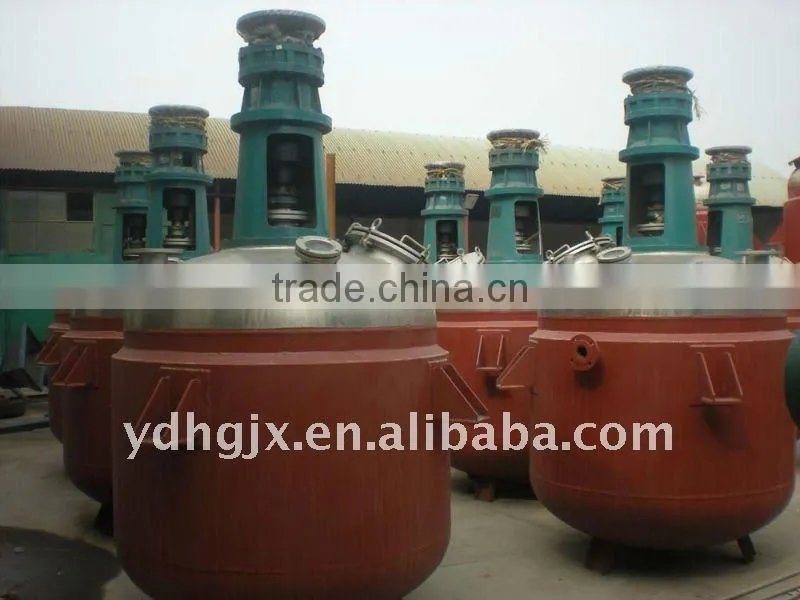

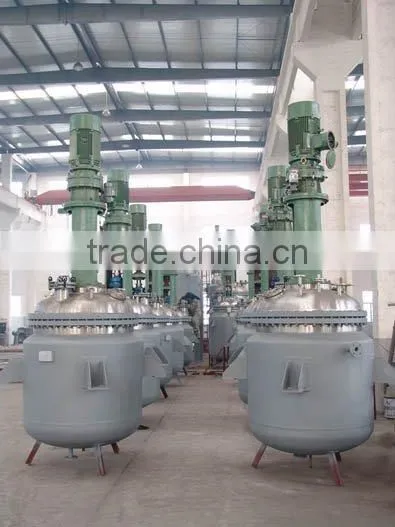

---------------------------- Pictures of liquid glue making machine:

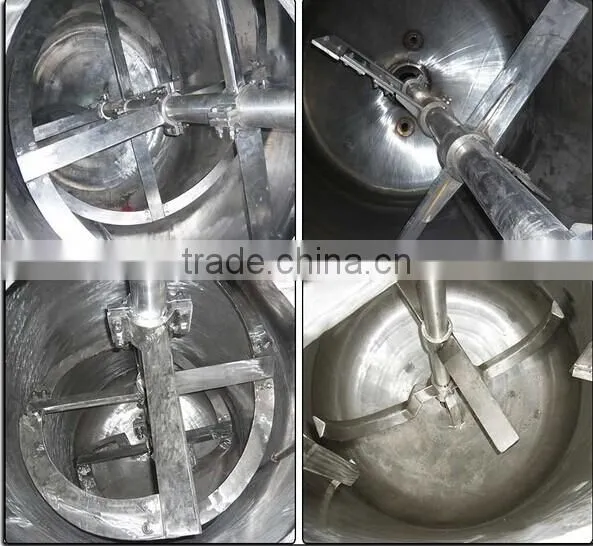

Paddle

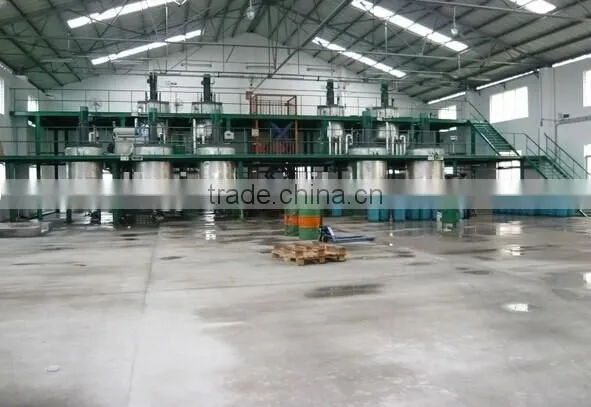

Liquid glue Production line
other machine list
grinding machine,mixing machine,reactor,SMC machine
resin complete production line,coating production line,floral foam production line,adhesive production line.
Here we produce this polyester resin/liquid glue making machines from 50L lab small plant to 10tons mass production lines,
we have already successfully sent our engineers to help with installation in Saudi Arabia, Thailand, Iran, etc,
If any interest, pls contact:
Miss. Anna Miller/ Sales Manager
Laizhou Yuanda Chemical Industry Machinery Factory (Solid Factory)
