Horizontal Ribbon Mixer
- 500 Unit / Units per Month
- Qingdao
You May Like
Product Details
Mixer Type | Ribbon | Application | Powder | |
Place of Origin | Shandong, China | Brand Name | YUANDA | |
Model Number | YD-HH-002 |
Product Description
Specifications
Horizontal Ribbon Mixer,is ideal equipment to proceed powder,liquid-powder material such as dry powder,fodder,putty...

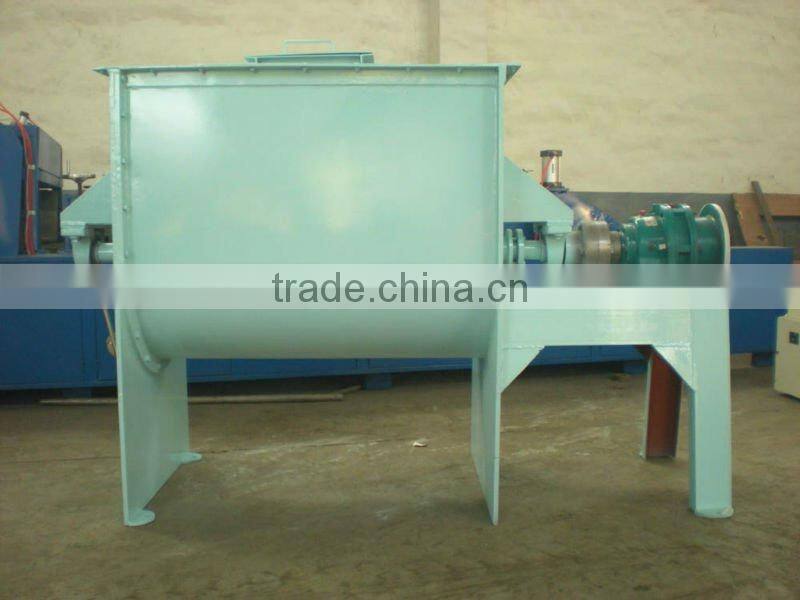

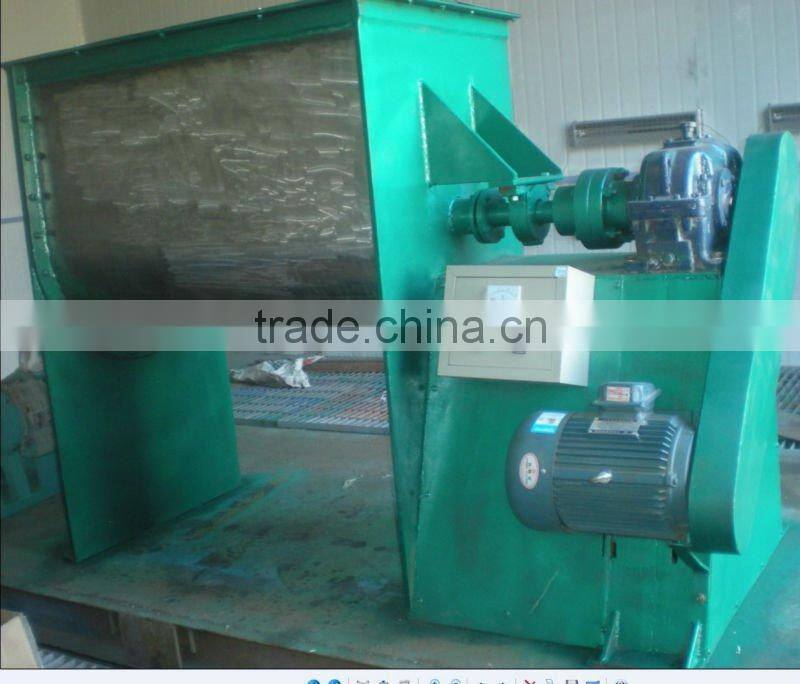

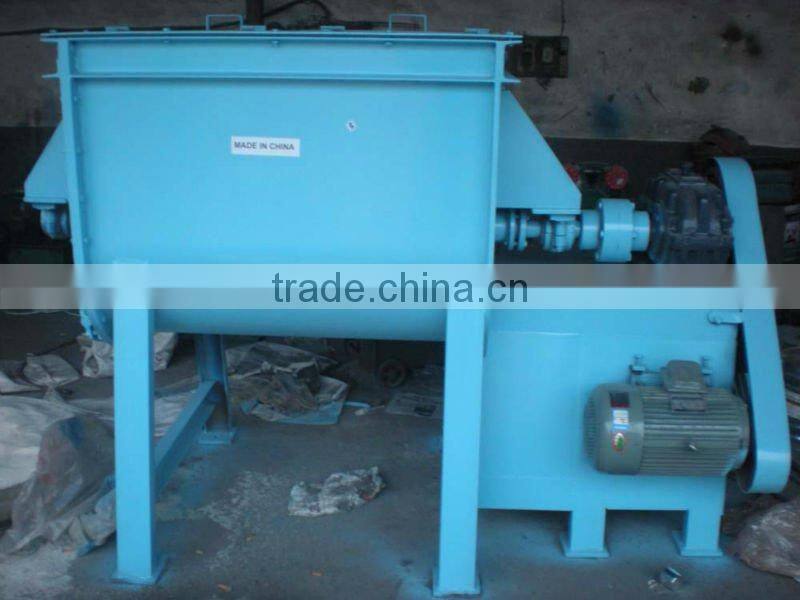

Horizontal Ribbon Mixer
Scope of application:
WHJ Horizontal Mixing Machine a,can be widly used to mix Chemical,Medicine,compound fertilizer,dye,colour,pigment,cenment, silica sand,powder milk,fodder,feed additive industry,mainly to mix Powder-powder,Powder-liquid material.
Working priciple:
WHJ Horizontal Ribbon Mixing Machine is idael mixer to deal with material with high efficiency and fast speed,under the driving of the ribbon,make the internal and external screw mix material in wide range.Inner ribbon stir the material to both sides,external ribbon make the material from both sides to centr,.mix the material back-and-forth.;other material under the driving of the ribbon screw,move to outer dimeter along the axle. Thus form convection cycle.According to above movement,high efficiency and speedly mix the material in short time.
Structure Feature:

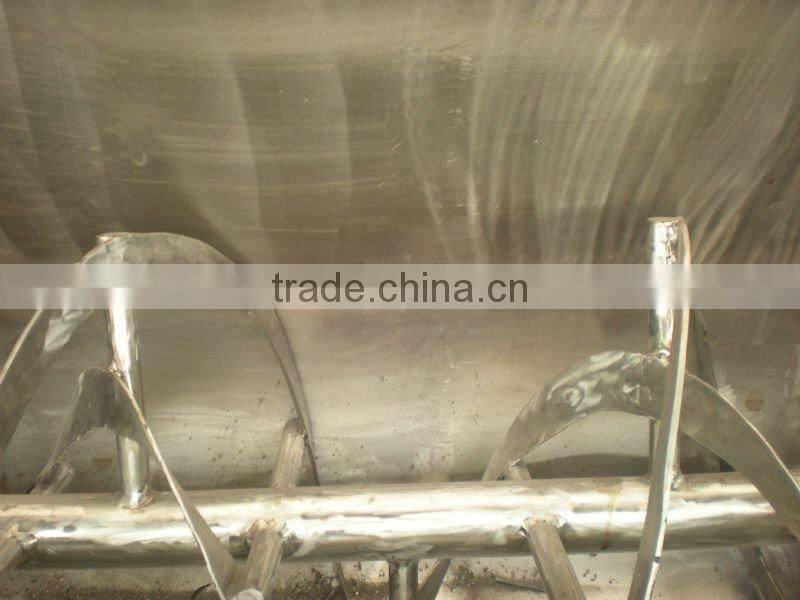

It is horiontal tank body with “U” shape tank,internal and external ribbon screw with special structure,stable operation,realiable quality,low noise,long using lifetime,convenient installation and maintain.Its high mixing speed and mixing uniformity,specially apply to mix Powder-powder,Powder-liquid mate
Material:SUS304,SS316L;Carbon steel
Capacity:50-20000 Ltr
Below is some some data for ur ref:
Model | WHJ100 | WHJ 250 | WHJ 500 | WHJ1000 | WHJ 2000 |
Capacity( kgs/batch) | 80-100 | 180-250 | 400-500 | 800-1000 | 1800-2000 |
Material | Stainless Steel/Carbon steel | ||||
Motor power | 2.2 kw | 4 kw | 7.5 kw | 11 kw | 15 kw |
Voltage | 380V/220V(3 Phase) | ||||
Frequency | 50HZ/60HZ | ||||
Speed | 35 rpm/min(with Gear reducer) | ||||
Plate thickness | 4 mm | 5 mm | 6 mm | 7 mm | |
Mixing Uniformity | ≥96% |
If any item make you interest,pls feel free to contact me,
Awaiting your soon feedback,
Best Regards,
Jolin,
Laizhou Yuanda Chemical Industry Machinery Factory,
Tel:0086-532-80983779
Mobile:0086-15216429668
