1). Specially equipment for chemicals mixing and reacting.
2). Widely used inmaking resins, adhesives, paints, cosmetics, pharmaceuticalsand other chemical
production
3). Mechanical seal.
4). Inverter for frequency control.
5). Jacketed type, outer-pipe type, outer-inner-pipe type.
6). Heated by oil, water, steam or electric.
7). Three-layers paddle style, made of stainless steel.
8). Consists of body, gears, mixing devices, heating devices, cooling devices, seal composition.
9). Equipped with distillation column, condenser, water separator, collecting cans, filters ect.
10). Supply complete production line, as well as producing technology
Technical Parameters
Reaction kettle agitator tank for resin adhesive model |
Nominal capacity L |
Actual capacity L |
Heating powerKW*strip |
Oil clip of capacityL |
Inner pot size Dmm |
Jacket size D1mm |
Bearing screw holes center D2mm |
Stirring speed |
50L |
50 |
78 |
2*4 |
96 |
Ø400 |
Ø600 |
Ø828 |
85 |
100L |
100 |
127 |
2*6 |
127 |
Ø500 |
Ø700 |
Ø928 |
85 |
300L |
300 |
327 |
4*6 |
218 |
Ø800 |
Ø1000 |
Ø1148 |
85 |
500L |
500 |
509 |
4*9 |
269 |
Ø900 |
Ø1100 |
Ø1252 |
85 |
1000L |
1000 |
1017 |
4*12 |
400 |
Ø1200 |
Ø1400 |
Ø1588 |
85 |
2000L |
2000 |
2154 |
4*15 |
850 |
Ø1400 |
Ø1600 |
Ø1840 |
85 |
3000L |
3000 |
3201 |
5*15 |
1015 |
Ø1600 |
Ø1750 |
Ø2040 |
85 |
4000L |
4000 |
4020 |
5*15 |
1226 |
Ø1600 |
Ø1750 |
Ø2070 |
85 |
5000L |
5000 |
5170 |
5*18 |
1400 |
Ø1800 |
Ø2000 |
Ø2320 |
85 |
The compositions of Ex Jacketed Glass Reactor:
A. motor B. reducer C. pivot rack D. shaft seal E. manhole F. charging port G. flange H. jacket or coil I. cylinder J.paddle K. discharging port etc.

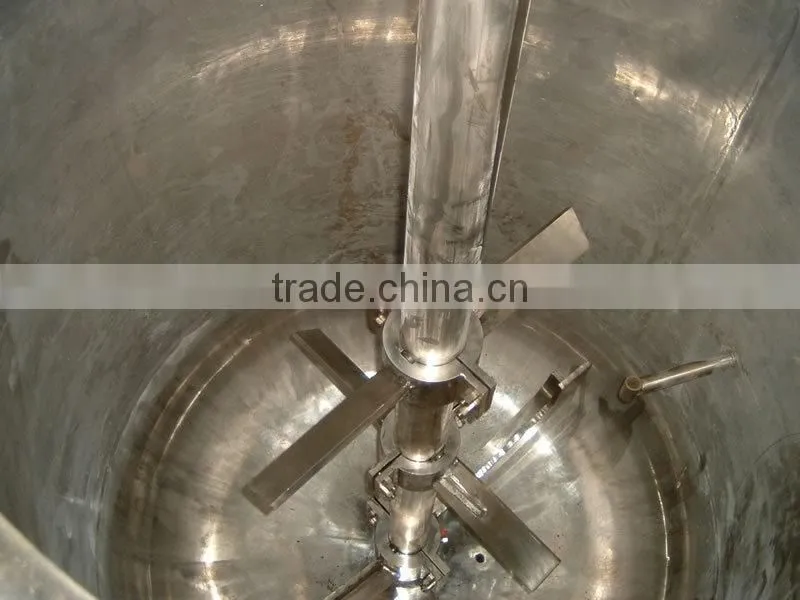

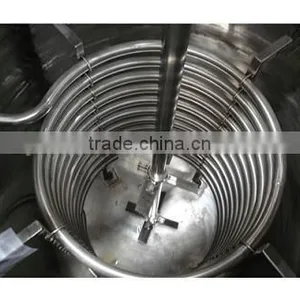

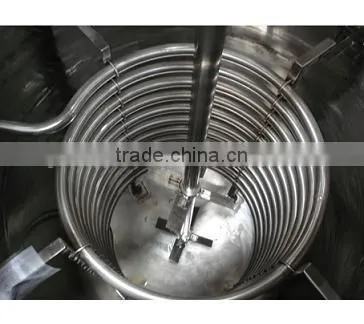

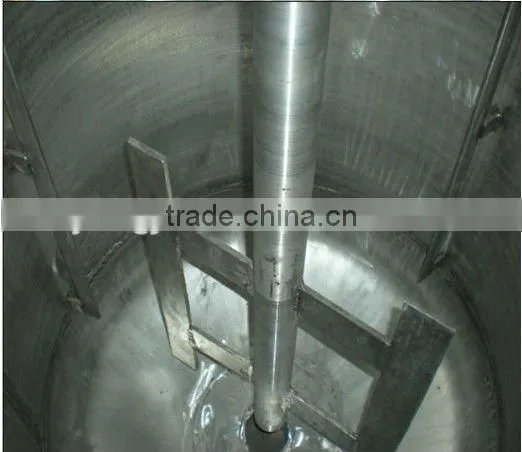

Internal structure
Used In The Production:
1). unsaturated resins, alkyd resins, acrylic resins, polyurethane resins and other complete sets of production equipment.
2). lotion, white latex, PU glue, adhesive sets of production equipment.
3). waste silica gel pyrolysis, recycling equipment.
4). paint sets of production equipment.
5). complete sets of all kinds of fine chemical production equipment.
Our Customers
After-sale service:
Generally, for simple machines, we supply service online or by email, if during the warranty period(one year),we supply the replaceable parts for free, if out of the date, we will charge the cost as real price.
For complete production line, we will send engineer to help install and solve problem to customers factory.
We always at your service, welcome you contact with us any time.
Q 1: Do you have after-sale service?
A : yes, we have perfect after-sale service
Q 2: Have you exported to reactor?
A: Yes, our products have exported to USA,AUSTRALIA, SINGAPORE,INDONESIA,MALAYSIA,BRAZIL,CHILE,PERU,MIDDLE EAST,RUSSIA,POLAND and so on.
Q 3: Where is your factory?
A: Xisungezhuang Village, Shahe Town, Laizhou, Shandong, China (Mainland)
The chemical and industry machine we can provide like:
SMC production line, BMC production line, resin production line, coating production line, adhesive production line, floral foam production line.
Reactor, Z-Arm mixer, dispersing machine, horizontal mixer, conical mixer, colloid mill, three roller mill, ball mill, sand mill.
