Specifications
1:Reactor2:Material:SS/CS
3:Application:Alkyd Resin,Polyester resin,Hot glue,Adhesive,Dye etc
4:Capacity:50L-10,000 L

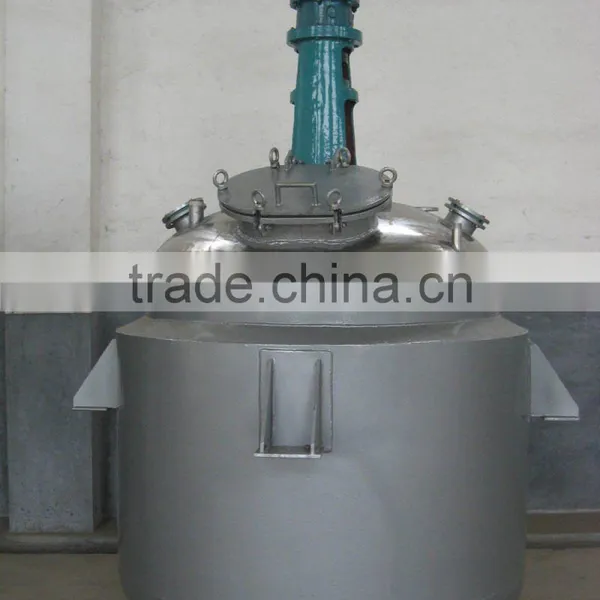

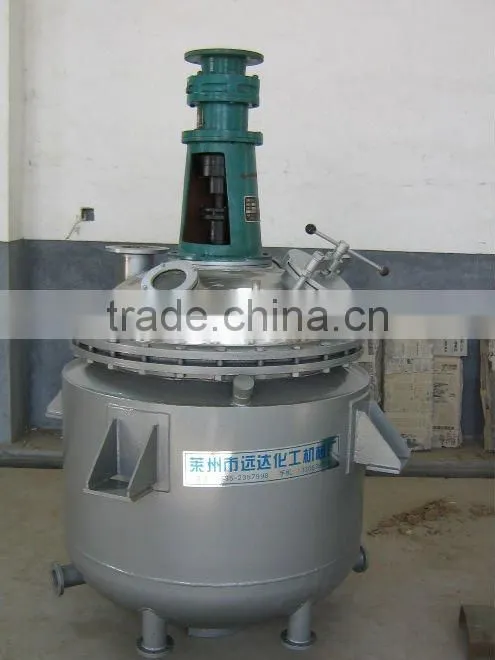

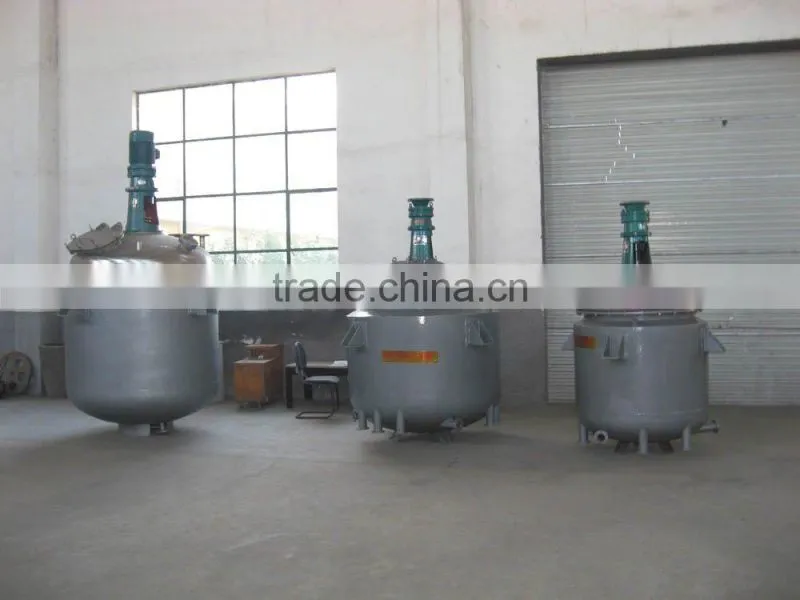

Reactor,material can be 304 Stainless steel/316 Stainless steel or Carbon steel.Blades with different shapes such as:Paddle Form,Frame Form,Scrapper Form etc.Motor with Gear reducer;Heating way mainly:Steam Heating,Thermal Oil Heating,Electric heating etc.
It can be widly used in Liquid Resin,Rubber,Pesticide,Glue,Dye,Medicine,Food Industry etc.
Here different Capacity os provded from 50L-10,000 L.Welcome all customers come to inqure!
Below is General Information for your reference:
Capacity
50 L
300L
500L
1000 L
2000 L
3000 L
Motor power (with Gear Reducer)
0.75 kw
1.5
3
4
5.5
5.5
Material
304 Stainless steel(Inner)
Carbon steel(Outer)
Iner thickness
4
5
6
6
Outer thickness
4
5
6
8
Heating way
Electric heating
Electric heaing/Thermal Oil Heating
Electric heating power
2kw*3piece
4 kw*6 piece
4 kw*9 piece
4 kw*12 Peces
4 kw*15 Piees
5kw*15 pieces
Inner diameter
400 mm
800
900
1200
1400
1600
Outer diameter
600 mm
1000
1100
1400
1600
1750
Speed
65 rpm
Stirring way
Paddle type
Sealing type
Mechanical seal
