Specifications
1.mini Sigma extrusion machine Kneader2.high viscous z blade mixing machine
3.mini capacity from 2L-50L
4.CE
mini Sigma extrusion machine Kneader
small-lot production / lab
1. application:
kneading machine can kneading various viscosity BMC,CMC it also can be used in
chemical, plastic, rubber, printing ink, carbon, medicine and food industries.
5. Specifications: (for your reference.)
2L
NO |
ITEM |
SPECIFICATION |
1 |
Capacity |
2L kneader |
2 |
Electric power |
Based on your factory electric |
3 |
Material |
All are stainless steel material |
4 |
Motor power |
0.75ith ZSY type reducer |
5 |
Jacket |
Heating jacket |
6. |
Lid of chamber |
Stainless steel 304 |
7 |
Balde design |
Blade in Z shape and clearence for cleaning |
8. |
Blade speed |
Quicker 33,rpm lower 23,rpm |
9. |
Clearance of two blade |
5mm |
10 |
Support |
Bench mountable |
11 |
Discharge |
Manual tilt discharge |
12 |
Shaft seal |
PTFE |
13 |
Control cabinet |
It will be Attached with the machine , with stop/start button an emergency stop button , also with digital temperature indicator |
14 |
Delivery time |
30days after received the deposite |
15 |
Warranty |
One year onece shipped to you |
50L
NO |
ITEM |
SPECIFICATION |
1 |
Capacity |
50L sigma mixer |
2 |
Chamber |
Stainless steel with the blade |
3 |
Material |
Body carbon steel and chamber SS 304 |
4 |
Motor power |
11KW with ZSY reduction box |
5 |
Jacket |
Jacket for heating |
6. |
Heating power |
4KW |
6. |
Lid of chamber |
Silicon rubber sealed ,and an valve with clips can be open and closed with sight glass |
7 |
Balde design |
Blade in Z shape and clearence for cleaning |
8. |
Blade speed |
Quicker 45, lower 23. can be adjusted |
9. |
Clearance of blade |
5mm |
10 |
Vaccum |
Needed insde ,general degree -0.094Mpa |
11 |
Discharge |
Screw extruder discharge with extruder 7.5KW power |
12 |
Vaccum pump |
1.1KW power ,cycling by oil |
13 |
Control cabinet |
Attached with the machine , with stop/start button an emergency stop button , also with digital temperature indicator |
14 |
Delivery time |
35days after received the deposite |
15 |
Warranty |
One year onece shipped to you |
16 |
Document attached |
Operating and maintain manuals in english version, |

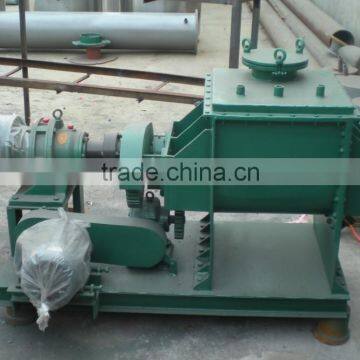

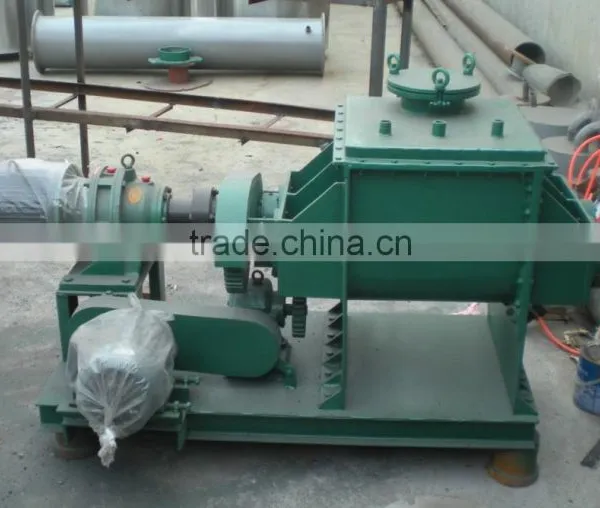

6. Pictures of machine
Euro CE Certified
If any interest, pls contact:
