Specifications
sigma mixerscrew extruder/hydraulic tilt discharge
vacuum supported
With heating jacket
stainless steel
: We are yuanda chemical machinery factory and specialised in producing chemcial macinery such as the Unsaturated polyester resin equipment SMC SHEET MACHINE kneader machine ,grinding machine,experiencial machine,hot melt glue machines and other chemcial machines and we have dealed with many years in the world market and enjoy a good reputations in the Eurpopean countries and north America markets and our producing technologys have invited many foreign advanced technologys especially in UK
This is the details of the sigma mixer machine:

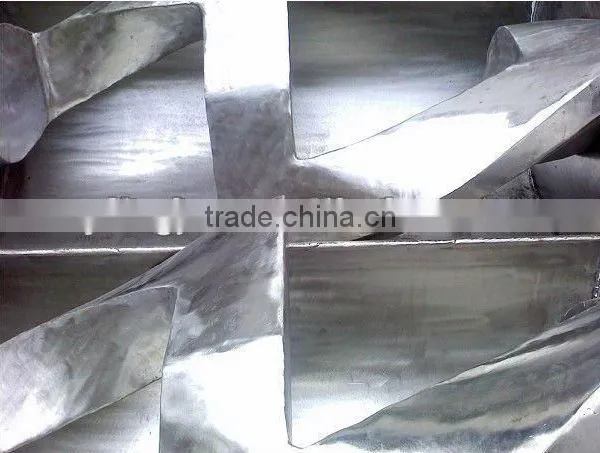

this series kneader can knead all kinds of CMC with different viscous and it always used in checmials,plastics,rubbers,ink,carbon element,medicines,food and other areas,and the blade is made by the stainless steel,and it can ensure the purity and the quality of the products.this machine adopts "Z"type dubble mixing,and can help the material react quikly and uniform,
I have make a data excel ,and you can chose it :
| Modle | Capacity | Stirring speed | Main motor power | Steam heating pressure | Electric heating | jacket | Dimension(mm) | Weight |
| NH-500L | 500L | 37,21(rpm) | 15,/18.5Kw | 0.3Mpa | 16.2Kw | With colling jacket | 3000*1000*1500 | 3000kg |
| NH-300 | 300L | 37,21(rpm) | 7.5, /11KW | 0.3Mpa | 6Kw | With colling jacket | 1800*800*1400 | 1600kg |
| NH-100 | 100L | 35,22(rpm) | 4/ 5.5 | 0.3Mpaa | 4Kw | With colling jacket | 1645*775*1540 | 1250kg |
| NH-40 | 40L | 45,23(rpm) | 2.2 | 0.3Mpa | 4Kw | With colling jacket | 1170*1100*480 | 560kg |
| NH-1000 | 1000L | 35,25(rpm) | 20/30/37/45 | 0.3Mpa | 25Kw | With colling jacket | 3450*1300*1600 | 4500kg |
| NH-1500 | 1500L | 30,16(rpm) | 22/30/37 | 0.3Mpa | 32.4Kw | With colling jacket | 3600*1420*14800 | 5800kg |
| 2000L | 2000L | 45,30(rpm) | 45Kw | 0.3Mpa | Use steam heating | With colling jacket | 3900*1600*2100 | 6500kg |
| NH-5 | 5L | 33,23(rpm) | 0.75Kw | 03Mpa | 1Kw | With colling jacket | 650*400*705 | 300kg |
Dear Sir or Madam,
If you have any interests,please feel free to contact :
Miss. April Young
MOBILE:0086 18354206103
Laizhou Yuanda Chemical Industry Machinery Factory(solid factory)
