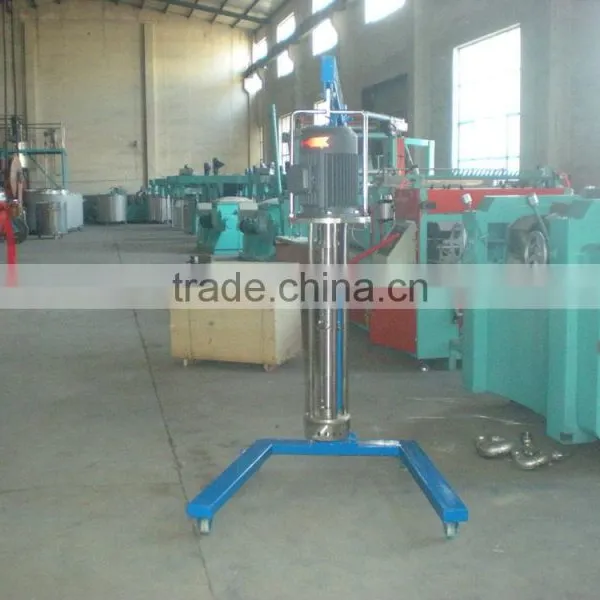

Food Emulsifier Machine (with Mobile Lift)
- 150 Set / Sets per Month
- QINGDAO
- T/T
Product Details
Condition: | New | Mixer Type: | Homogenizer | Product Type: | Shampoo |
Application: | Liquid with Suspended Solids | Additional Capabilities: | Milling | Place of Origin: | Shandong, China |
Brand Name: | YD | Model Number: | YD | Max. Loading Capacity: | 20000L |
Voltage: | 220V/380v/415V/440V | Power(W): | 0.30-75KW | Dimension(L*W*H): | 1800*1150*2050MM |
Certification: | CE ISO | Warranty: | 1 Years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Features:
- Batch high shear emulsifier effectively,quickly and evenly disperse a phase or phases to another consecutive phase,usually,these phases are dissolvable to each other.
- The rotor revolves quickly and strong force is produced through high tangent speed and high frequency mechanical effect,therefore,the material in the narrow slotamong stator and rotor receives strong forces from mechanical and liquid shearing,centrifugal force,pressing,liquid fraction,clashing,tearing and rush water.
- The dissolvable solid,liquid and gas material is then instantly dispersed and emulsified evenly and finely with better production procedures and appropriate addictives and finally products with stable high quality are made
Working process
- The rotor revolves in high speed produces centrifugal force,which suctions the material from upper and lower feeding area axially to the operation chamber.
- The strong centrifugal force throws the material axially to the narrow slot between stator and rotor.The material then receives centrifugal press,clash and other forces,which firstly disperse and emulsify the material.
- The outer terminal of the rotor revolved in high speed produces a line speed more than 15ms and even up to 40ms,which produces strong mechanical and liquid shearing,liquid abrasion,clashing and tearing which fully disperse,emulsify,homogen,and break the material and jet from the stator slot.
- As materials jet in radial in high speed , they change their flow direction with resistance from themselves and vessel walls.The upperand lower axial suction force then leads to strong upper and lower rushing flows.After many circulations,the material is finally disper sed and emulsified evenly.
Advance we have:
- Experienced stainless steel sanitary vessels supplier.
- Professional design team and sales department for your service.
- Alibaba golden supplier, factory recognized by “ISO9001” Quality Management System etc.
Benefit you get:
- Stable quality——Coming from good materials and technic
- Lower price——Not cheapest but the lowest at the same quality
- Good service——Satisfactory service before and after sale
- Delivery time——25-35 working days for mass production
The chemical and industry machine we can provide like:
SMC production line, BMC production line, resin production line, coating production line, adhesive production line, floral foam production line.
Reactor, Z-Arm mixer, dispersing machine, horizontal mixer, conical mixer, colloid mill, three roller mill, ball mill, sand mill.
