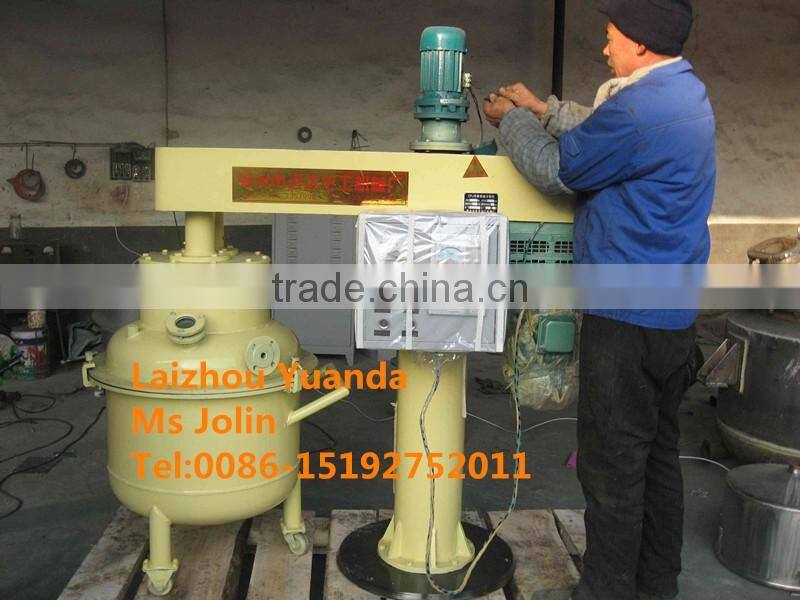

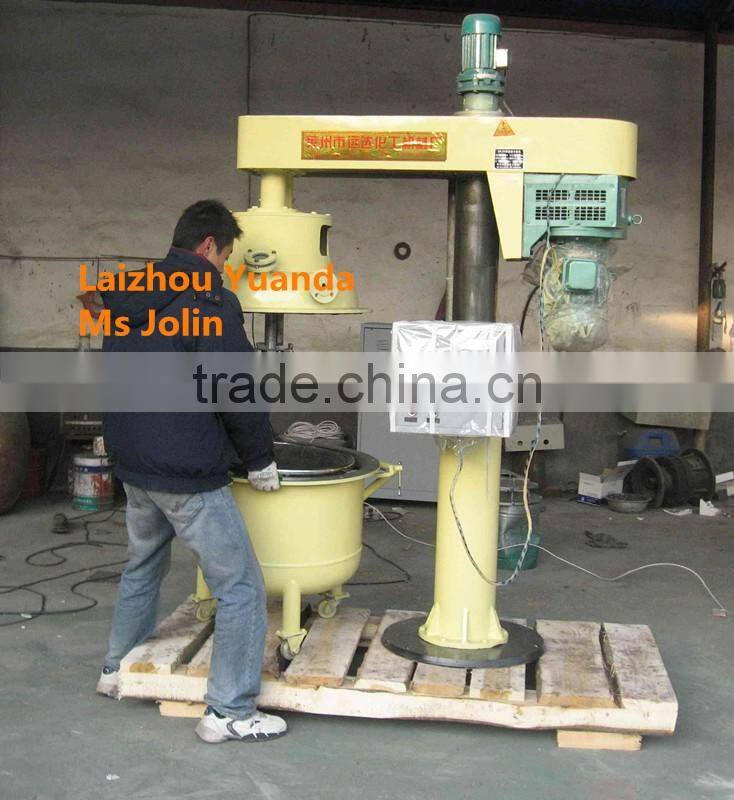

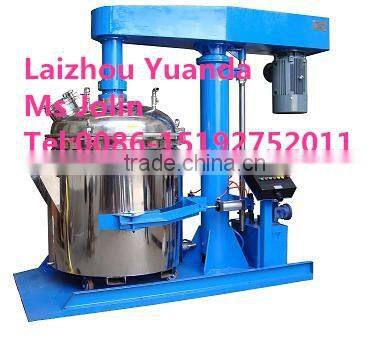

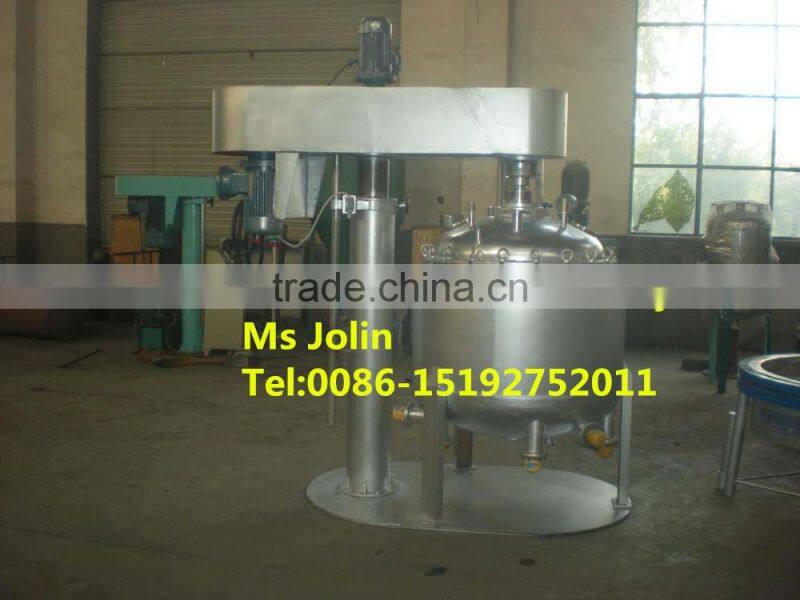

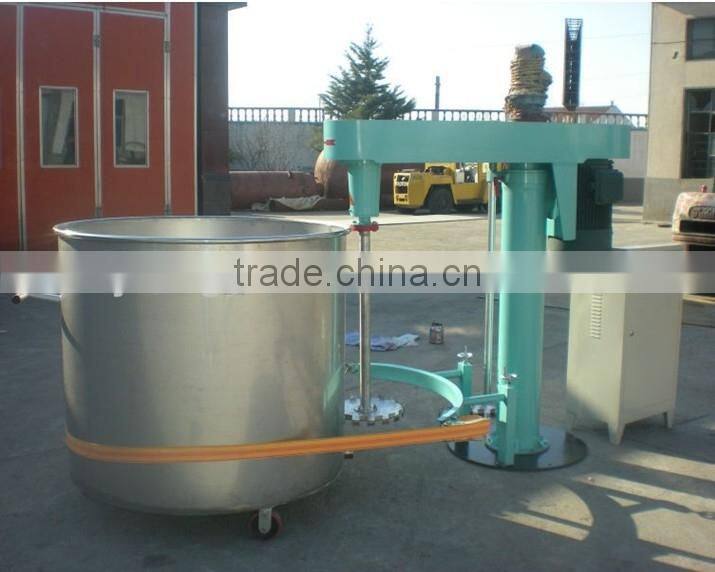

Mechanical Lifting/Hydraulic Lifting Vacuum High Speed Dispersing Tank

Name: Mechanical Lifting/Hydraulic Lifting Vacuum High Speed Dispersing Tank
Brand: yuanda
SKU: 144031532
Availability: InStock

Laizhou Yuanda Chemical Industry Machinery Factory

US$ 1,100 - 18,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Mixer Type:

Agitator

Product Type:

Paint

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Mixer Type Agitator

Product Type Paint

Application Liquid

Additional Capabilities Milling

Place of Origin Shandong, China

Brand Name yuanda

Model Number YD-FS

Max. Loading Capacity 5000 LTR

Voltage 220/380/415 V

Power(W) 1.1-75 W

Dimension(L*W*H) as modle

Certification CE marked

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

Mechanical Lifting/Hydraulic Lifting Vacuum High Speed Dispersing Tank

1,application: paint ,ink, pigment, resin, glue, adhesive, dye, cosmetic, etc.

2,capacity: 2L-20000L lab scale to large capacity.

3,lifting method; hydraulic Lifting & mechanical Lifting

4,CE certification.

5,Mixing pot can be provided together with the disperser.

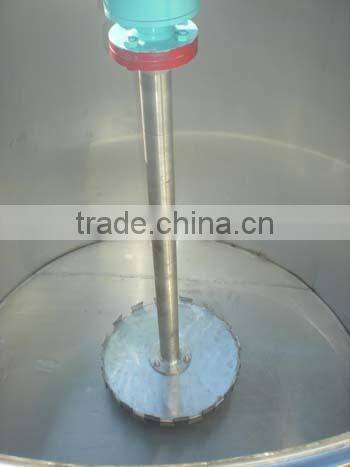

6,agitator type:frame,anchor,paddle,etc.

7,double shaft type is available.

8, The Mixing Tank can be jacket with heating or cooling functions.

Below is main CONFIGURATION of High Speed Disperser for ur ref:

Motor power	5.5 KW	7.5 KW	15KW	22 KW	30 KW	37KW	45KW	75KW
Lifting type	Mechanical Lifting
Lifting motor power	0.5 kw	0.75 kw	1.1 kw	1.5 kw	1.5 kw	1.5 kw	2.2 kw	2.2 kw
Material	Stainless steel(dispersing shaft and head)
Material	Carbon steel(Machine body besides dispersing shaft and head)
Speed (rpm)	0-1250
Dispersing head diameter	180mm	200mm	280 mm	300 mm	320 mm	360 mm	400 mm	450 mm
Turning angle	360°C
