Help CenterHigh Quality Mgo Board 1220mm*2440mm*10mm
Related Products
Specifications
mgo gupsum board in chinahigh quality
1220mm*2440mm*3-25mm

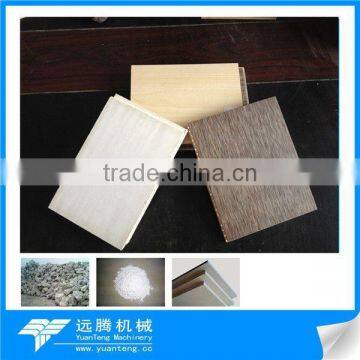

Magnesium oxide boards (mgo boards )
Composition:
It is made of magnesium oxide, magnesium chloride, fiberglass mesh, perlite, saw dust, etc.
Main features :
1. fireproof:
It reaches the standard of GB8624, CLASS A, British standard 476: part7:1997, and part 4:1970 class one surface spread of flame, and non-combustible class
2. waterproof:
It can keep its shape and character after soaking in water for a few days.
3. Soundproof and heat preservation
4. No asbestos
5. Environmental protection:
It is totally 100% green boards
6. Easy to install:
It can be treated in the way of sawing, planning, drilling, nailing and cutting etc.
Test results
Test item |
Technical requirement |
Test results |
Results |
||
Density (t/m3) |
|
1.05 |
Qualified |
||
Bending strength(Mpa) |
≥10 |
16.0 |
Qualified |
||
|
Impact strength (KJ/m2) |
≥2.5 |
10 |
Qualified |
||
Moisture absorption |
No moisture |
No moisture |
Qualified |
||
Water content (%) |
≤8 |
3.7 |
Qualified |
||
Contraction rate when heated (%) |
≤0.3 |
0.1 |
Qualified |
||
Expansion when put into water (%) |
≤0.6 |
0.23 |
Qualified |
||
Crisp coefficient |
≥0.7 |
1.3 |
Qualified |
||
Warp when heated (‰) |
≤3 |
0.12 |
Qualified |
||
Put out of nails |
e<6 |
6<e<10 |
e >10 |
35 |
Qualified |
≥25 |
≥20 |
≥15 |
|||
Specifications:
1220X2440, 1200x2500/2600/3000, 900X1800, 900X2400 (mm) etc.
Thickness: 3-40(mm)
Note: Other sizes can be ordered according to customer’s requests.
Main usage:
Magnesium oxide board have been used primarily as fireproof materials for walls and ceilings in office buildings, apartment complexes, residential constructions, hotels, theatres, restaurants, railway stations, airports, scientific research institutions, schools, hospitals, and stadiums. Some patterned products have been used as decorative boards.
It also can be used as an interlayer for building, movable partitions, sound-absorbing structures, sound insulation structures, heat insulation and preservation structures, sign boards, fireproof partition walls, low fencing partitions, fireproof pipeline, fireproof doors, cornice baffle boards, public restroom dividers, baseboards, truck cabinets and billboards etc.
cabinets and billboards etc.
