Stone Crusher

Specifications

1.0 - Technical details
1.1 - CONSIDERATIONS:
DRAWINGS:
The BRIMAQ provide sufficient technical data and drawings for the perfect installation, operation and maintenance of equipment sold, not manufacturing drawings, calculations projects or any kind of information will be provided.
INSPECTION:
Inspectors appointed by V.Sas. have free access dependencies of BRIMAQ to perform inspection and testing during manufacturing.
1.2 - PAINTING, PACKAGING AND IDENTIFICATION:
PAINTING OF EQUIPMENT:
Painting of equipment will have the mediterranean blue color pattern with details in yellow case, or as customer's request.
PACKAGING:
Sensitive pieces of equipment such as: electric motors, joint lubrication, hydraulic drive unit will be protected when necessary in cardboard boxes or wooden boxes. Steel structures and construction of housing will have packaging.
IDENTIFICATION:
The machines have metal identification platelets. The disassembled components that follow, will be packed in cardboard or wooden box as needed and receive identification tags.
All tags will be placed in visible places, to allow easy handling.
1.3 - SCOPE OF SUPPLY:

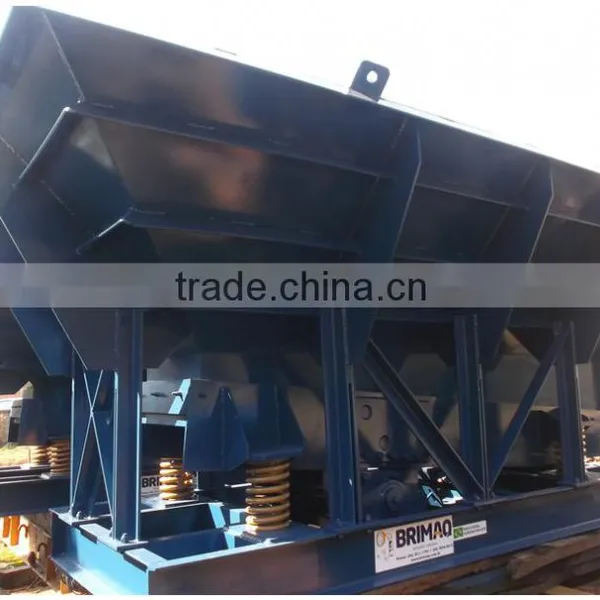

1 BR AV Vibrating Feeder Model 25 050 with qualifying grid, hopper and drive through pulleys with 05 hp motor.
Capacity: 30 to 120 t / h
Volume of hopper: 5 m³

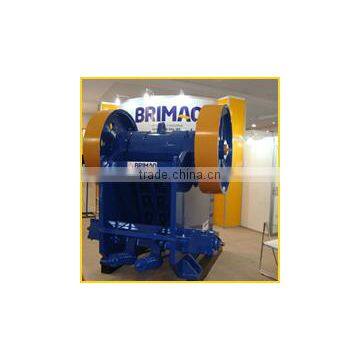

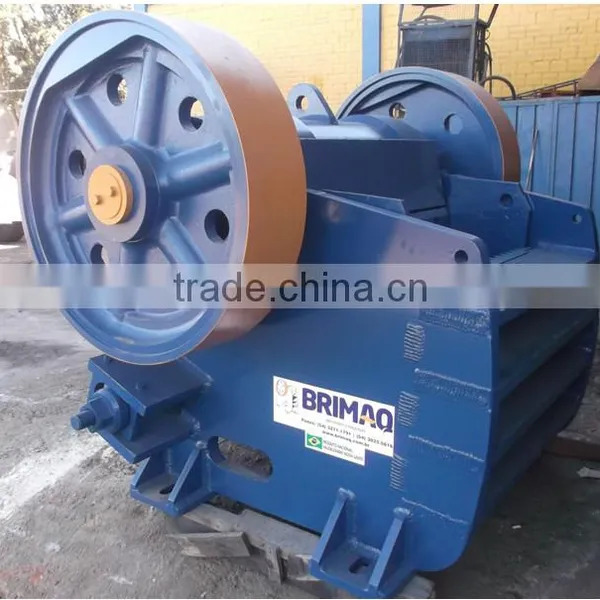

2 primary crusher model BR 50 with 30 engine.
Crushing capacity: 12-18 m³ / h as the opening of the equipment.
Engine: 30 hp
Weight: 4500 kg
3 secondary crusher model BR 90 with 26 engine.
Crushing capacity: 16-35 m³ / h as opening the equipment.
Engine: 40 hp
Weight: 6000 kg

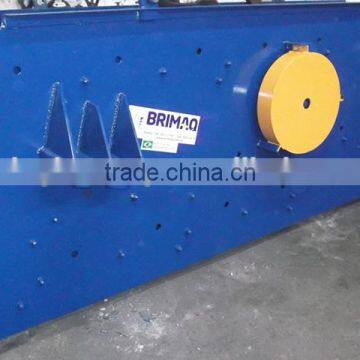

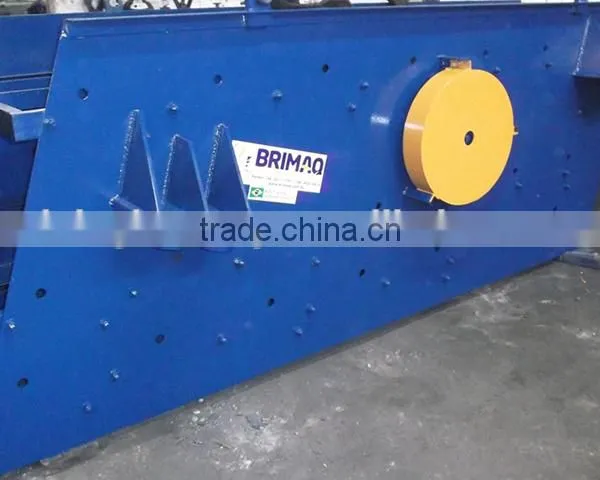

4 BR PV Vibrating screen model 30012-03 complete decks
Engine: 10 hp
Meshes: to combine

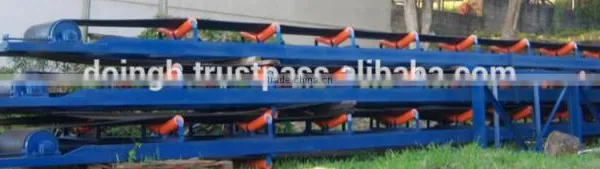

5. five (05) Conveyor belt complete model TCH 200 BR 20 "x15 lattice mts.
5 hp motor.
gearmotor 1:16
Easels 20 "
Roller load, impact and return.
Support feet.
Canvas Carrier 20 "X 2 1/8 X 1/16 Tarpaulins
Terminals drive with rubberized drums
Terminals return with turnbuckles in threaded bar 1 ".
1.4 - SUPPLY:
* Completely new and own manufacturing (NATIONAL PRODUCT) equipment.
The following items not belong to the scope of the aforementioned supply:
* Design and civil and / or electrical works;
* Bolts;
* Lighting;
* System grounding and lightning protection;
* Excavating;
* Lubricants;
* Pumps and compressors to supply water and air;
* Antipollution equipment;
* Paints for touch ups on the field;
* System dust suppression;
* Electrodes for welding in the field;
