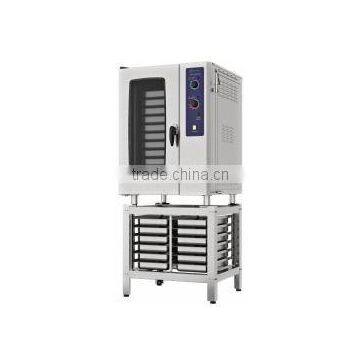

Convection Oven Wictory

FEATURES

The Oven Combination Programmable Wictory is manufactured in stainless steel high quality and has eight cooking modes in a single control panel.

This product has sonar system for the operator to have full control of the food to the desired function.

Equipment specially designed to satisfy all levels of cuisine, from the novice to celebrity chefs.

Easel and accompanying Basic Kit GN's.

TECHNICAL SPECIFICATIONS
  POWER
  electric
Capacity GN's 11 Gn's 1/1
No Meals approximately 550
Gas Supply Type - -
Voltage (V) 220V3 ~ ~ 380V3N
Current (A) 50 30
Installed capacity (kW ¹ or Kcal / h ²) 18.6
Power consumption (kW / h ¹ or kg / h ²) * 13
Pressure Water Inlet (kgf / cm²) 0.8 - 2kgf / cm²
Water Inlet connections 3/4 "BSP
Installation method Floor / Rack
Sewage Output Connections Ø 1 1/4 "
Frequency (Hz) 60
Power cord type Y
Class I
Degree of protection (IP) IP14
  EQUIPMENT DIMENSIONS
Height (mm) 1160
Width (mm) 850
Depth (mm) 860
Rack height (mm) 1905
  VOLUME CHAMBER NET (L)
Height (mm) 860
Width (mm) 350
Depth (mm) 650
Useful Volume (Litres) 196
  TOTAL VOLUME OF COOKING CAMERA (L)
Height (mm) 860
Width (mm) 550
Depth (mm) 650
Total Volume (Litres) 307
