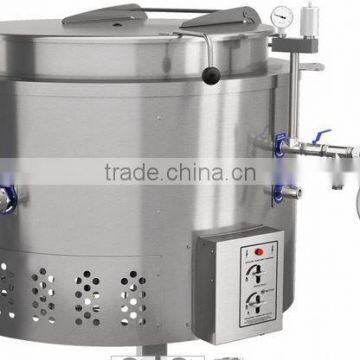

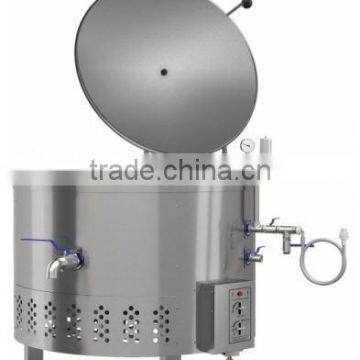

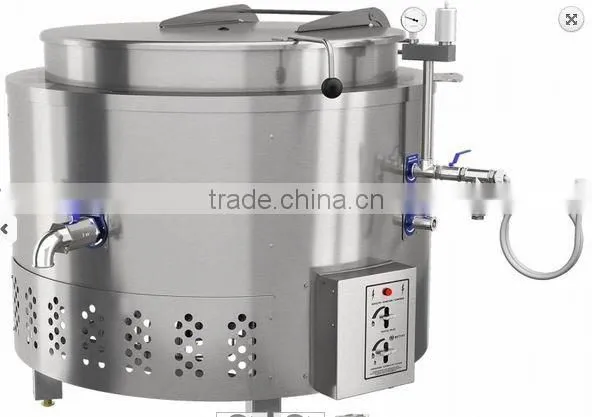

Cauldrons of Cooking WCL-500

TECHNICAL SPECIFICATIONS
  POWER
  Electrical gas
Capacity (L) 500
Quant. Food (rice, beans, meat) (kg) 80
Voltage (V) 220 ~ 220V3 ~ ~ 380V3N
Current (A) 0.045 50 30
Installed Power (W) 10 18
Installed capacity LPG (kcal / h) * 19550 -
GN installed power (kcal / h) * 15980 -
GLP Consumption (kg / h) * 1.7 -
NG consumption (m³ / h) * 1.95 -
Consumption (kW / h) * - 15
Installation Method Ground
Frequency (Hz) 50/60
Power cord type Y
Category vase V
MAWP (kgf / cm²) 0.8
Operating pressure (kgf / cm²) 0.5
Degree of protection (IP) IPX0
Class vase D
  EQUIPMENT DIMENSIONS
Height (mm) 1100
Width (mm) 1500
Depth (mm) 1800
  VOLUME OF STEAM TUBE NET (L)
Height (mm) 370
Diameter (mm) 1258
Useful Volume (Litres) 180
  TOTAL VOLUME OF COOKING CAMERA (L)
Height (mm) 465
Diameter (mm) 1180
Total Volume (Litres) 500
