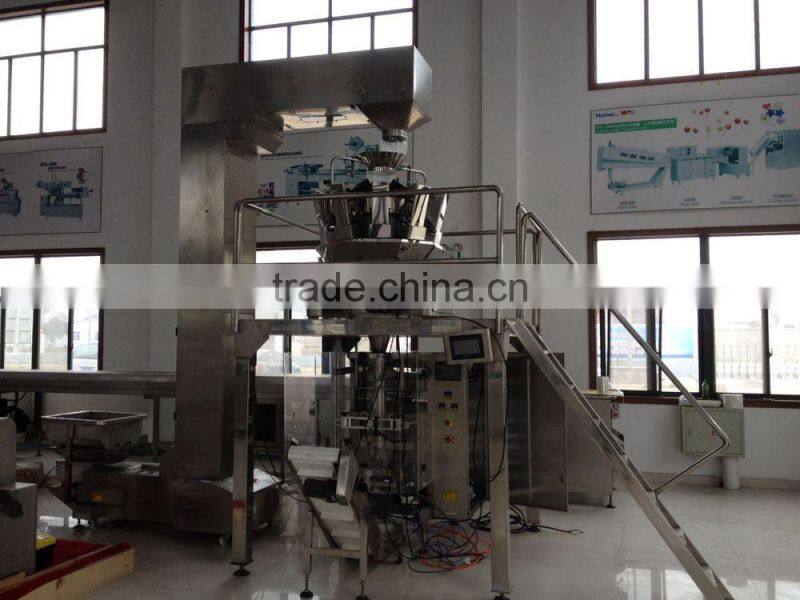

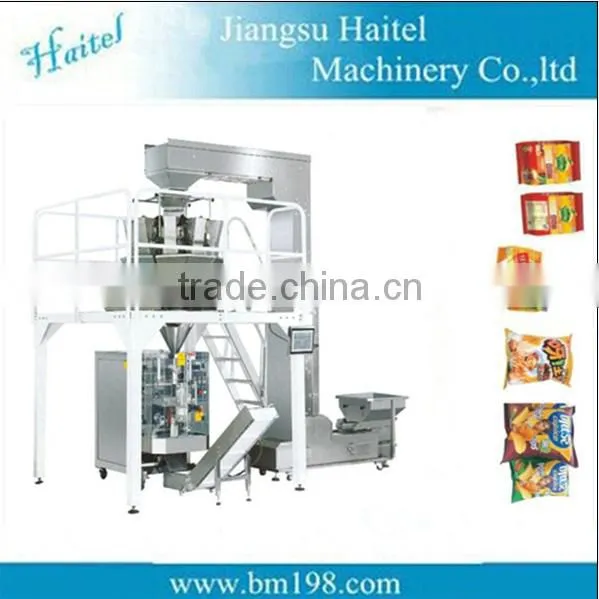

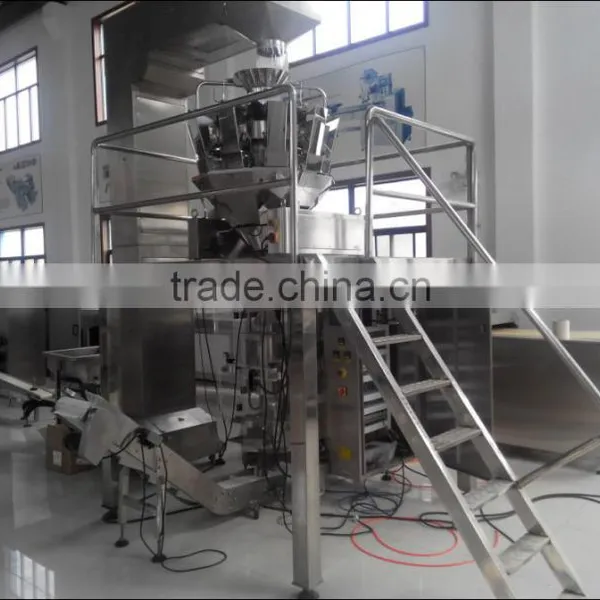

Automatic Weighing and Packing Machine

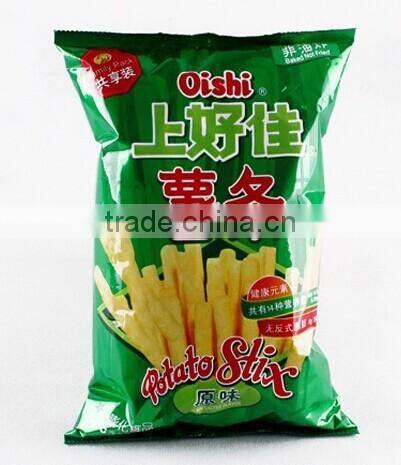

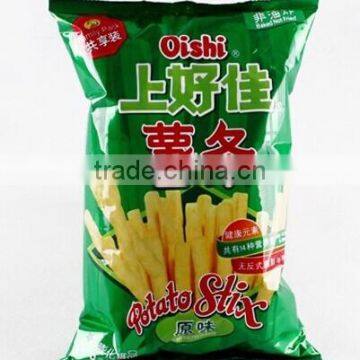

Samples:
Characteristics:
1. PLC control with stable, reliable biaxial highaccuracy output and color touch screen, bag-making, measuring, filling, printing, cutting, finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Film-pulling with vacuum double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
4. Double servo control, high precision orientation, size more nicety.
5. External film releasing mechanism; simpler and easier installation of packing film.
6. Adjustment of bag deviation just needed to be control the touch screen. Operation is very simple.
7. Close down type mechanism, defending powder into inside of machine.
8. Multihead weighter measuring, packing weight more precision, product cost more low.
Application:
Suitable for packing of several of granule, slice, stripe, such as candies, potato chips, shrimp chip, jelly, peanut, hardware, etc.
Main technical:
| Model | HTL-V420 | HTL-V520 | HTL-V680 |
| Bag length (mm) | 80-300 | 80-400 | 100-480 |
| Bag width (mm) | 50-200 | 80-250 | 180-320 |
| Max width of roll film (mm) | 420 | 520 | 680 |
| Packing speed (bags/min) | 5-60 | 5-50 | 5-50 |
| Measuring range (ml) | 150-1200 | 3000 (Max) | 6000 (Max) |
| Air consumption (MPa) | 0.65 | 0.65 | 0.65 |
| Gas consumption (m3/min) | 0.3 | 0.4 | 0.4 |
| Power voltage | 220V | 220V AC/50Hz | 220V AC/50Hz |
| Power (KW) | 2.2 | 4 | 5 |
| Dimension (L*W*H) (mm) | 1320*950*1360 | 1150*1795*1650 | 1780*1350*1950 |
| Weight (kg) | 540 | 600 | 900 |
Our company:
As a Sino-US company, Haitel Machinery Co., Ltd is a professional manufacturer for automatic packing, candy, chocolate, egg-roll, moon-cake and other food processing machinery. Specializing in confectionery processing equipment. Haitel has a professional team with strong technical and R&D knowledge to develop advanced food equipments to cope with market changes. Haitel has been accredited ISO9000 which has been strictly carried by management team to assure quality performance. Continuously technical innovation also has injected dynamic strength to company. With new products development, Haitel has gained many national patents to remain competitive, as well as rewarded “china most preferred packaging machinery”, “customer most satisfactory product” and “qualified product of national select quality” by CCMA. Today Haitel’s products can be found in many countries and regions around the world.
Our goal is to make quality product to meet client needs. We provide quality product with competitive price and service which has been our continuously efforts for now and future.
Certificate:
Pre-sale
Confirm machine type: Negotiate with clients to seclect the correct machine according to customers‘ requirment.
Quote and Sign firm contract: After confirm with customers with all details, such as payment terms,model, delivery time,send official quotation to clients.
After-sale
1,When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.
2,In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.
3.From the date of the Buyer receipt the machines, free warrant for 12 months.
Exhibitions:
Customers visited our company:
Contact:
It's our great honor to cooperate with you and offer our best service!!
