pouch packing machine for tea stick packing machine
- 15 Piece / Pieces per Month
- Shanghai
- T/T
- Maquillageplastic sealing heat shrink packaging machine Seal and shrink the film packaging machine
- Express deliverybox packing and paste sheet packing machine Box sealing and paste single package all-in-one machine
- Maquillagemembrane packing machine
- Bookseal the heat-shrink packaging machine Seal and shrink the film packaging machine
- Automatic Screw Counting Packing Machine
- Maquillagemembrane packing machine Gift packageseal and cut the packaging machine
Product Details
Condition: | New | Function: | Sealing, Wrapping | Application: | Chemical, Food, Other, Medical, Chemical, Food, Machinery & Hardware, Medical |
Packaging Type: | Bags, Film, Foil, Pouch, Stand-up Pouch | Packaging Material: | Plastic | Automatic Grade: | Automatic |
Driven Type: | Electric | Voltage: | 220V,50HZ | Power: | 3.35kw |
Place of Origin: | Jiangsu, China | Brand Name: | Haitel | Dimension(L*W*H): | 1200*850*1900 mm |
Certification: | CE/ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

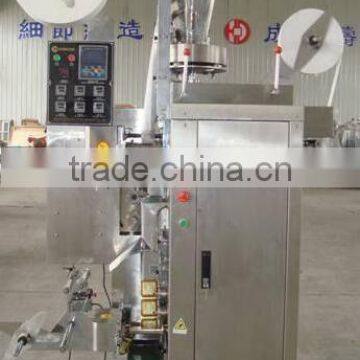

pouch packing machine for tea stick packing machine
Features:
The processes of bag making measuring, filling, sealing, cutting, counting and hot pressing code can be done automatically. Handling thread and tag would be a specific point of this machine, which would be a good convenient for customers while drinking tea.
1.All stainless steel cover meets to GMP standard.
2.Equipped with antipollution and dust proof device.
3.Adjustable measuring cup—adjust the measuring under the case of downtime.
4. The computer can adjust the length of the bag automatically without changing gears.
5.Photocell controller is easy to manipulate.
6.The tracking system with cursor of sending sign, guarantees the completed label design and customers may print their own products icon.
7.At the ends of cross sealed of inner and outer bags have oiling holes, regular oil guarantees that the machine operate lubricating, adequate lubrication can reduce the failure rate and improve the service life of the machine.
8.The operation facility is controlled by American intel computer, all function is displayed with digital screen.
9.Minimum sealing temperature variation employs PID temperature, the tolerance is controlled by± 2%
10.Sealing part: roller spend process is special designed and the effect of sealing is very well.
11. Equipped with easy open system.
12.The function of automatic counting is available for customers to pack
13.have gained the European CE certification
14.A manipulator in this machine is self-developed by our company, it first place the item in the inner bag, and then put the inner bag into the outer bag automatically, realize the inner and outer bag packaging at the same time. The manipulator not only improves the rate of bag making but also reduced the dimension of the outer bag which makes the bag sealing more
Applications:

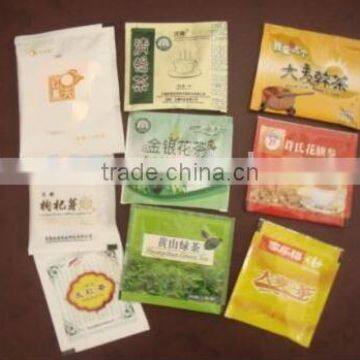

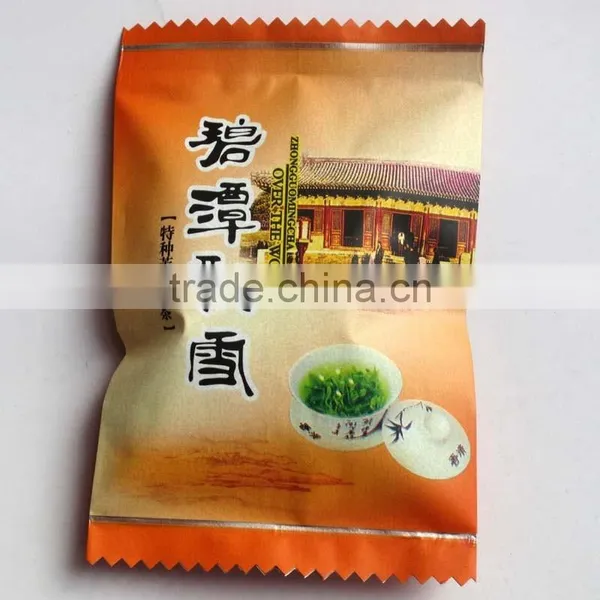

Tea Bag Packing Machine is a kind of machine used for packing tea seeds, medical, health-care and tea industries granular shaped ingredients. All of these items could be packed with both inner and outer envelops, and with thread and tag at the same time.
Main technical:
Bag size(Inner bag) | (L) 50-60mm/(W)30-80mm |
Bag size(Outer bag) | (L) 60-120mm/(W) 40-90mm |
Capacity | 20-40bags/min |
Power | 220V,50HZ,3.35KW |
Weight | 700KG |
Filling range | 2-12 ml |
Dimension(L*W*H) | 1200×850×1900 mm |
Ξwelcome to visit our factory Ξ
Our Company
As a Sino-US company, Haitel Machinery Co,.Ltd is aprofessional manufacturer for automatic packing, candy chocolate, egg-roll, cake and other food processing machinery.Specializing in confectionery processing equipment, Haitel has a professional team withe strong techincal and R & D knowledge to develop advanced food equipments to cope with market changes.
Large-scale workshop
Office
We have got lots of certificates related to our industry.
We attend many exhibitions every year and honored to have clients visit us !
Pre-sale
nfirm machine type: Negotiate with clients to seclect the correct machine according to customers’ requirment.
2.Quote and Sign firm contract: After confirm with customers with all details, such as payment terms, model, delivery time, send official quotation to clients.
After-sale
1.When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.
2.In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.
3.From the date of the buyer receive the machines, free warrant for 12 months
If you have any questions,pls feel free to contact me! We are looking forward to cooperate with you!
