Measurement analysis instruments coke revolving drum, coke mechanical strength analytical instruments
Coke crushing strength wear-resisting strength index detector/coke drum/ coke tumbler/ coke revolving drum/mikui drum/coke mechanical strength tester

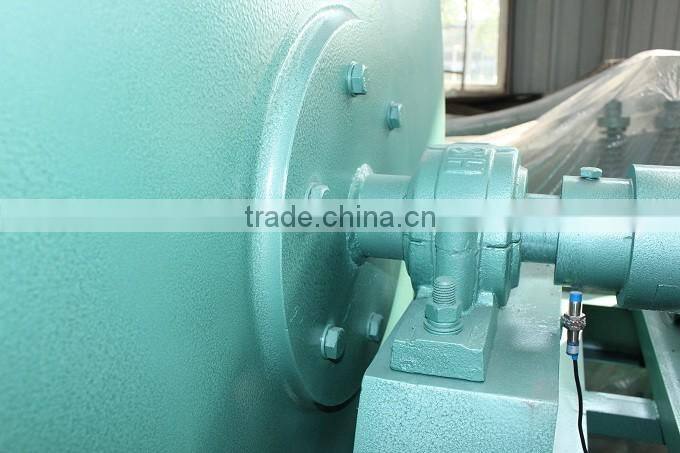

Drum Body | Sealed cylinder manufactured with the steel plate with the thickness of 8mm. There is no penetrating shaft. |
Diameter of the Drum Body | 1000±5mm |
Length of the Drum | 1000±5mm |
Rotation Speed of the Drum Body | 25 round/minute, the time for 100 turns is 4 min ±10s. |
Motor Power | 2.2KW |
Working Voltage | 380V |
Total Weight of the Machine | 1000KG |
Overall Dimension | 1850 mm×1280 mm×1700 mm(Length×Width×Height)
|
Material Lifting Plate | Weld four angle irons with the specification of 100mm×50mm×10mm (height X width X thickness) on the direction of the drum axis along with the inner wall of the revolving drum to divide the drum body into four parts with same area. |

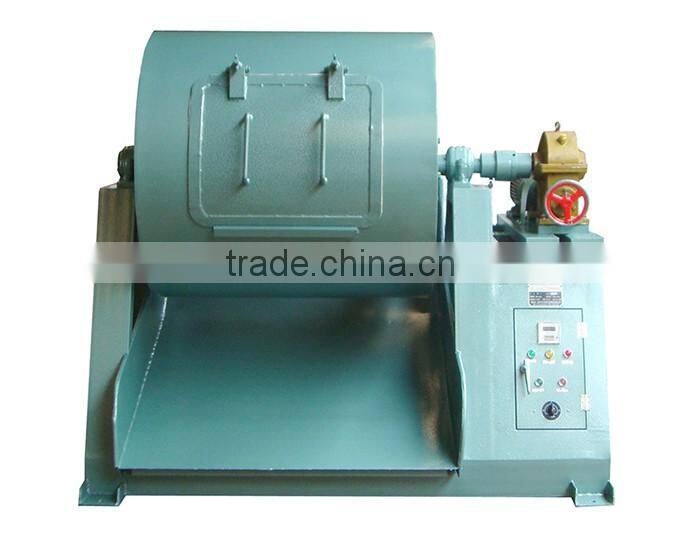

HXLM-98 Mechanical Strength Tester for Coke Revolving Drum is manufactured according to the technical requirements in Test Method for the Mechanical Strength of Metallurgical Coke with the standard No. of GB/T2006-2008.
The coke would be lifted up by the material lifting plate in the revolving drum and then fall onto the steel plate. During such process, the coke would collide and rub with each other under the mechanical force, which would result in the broken of the coke along with the crack and wearing of the coke surface.

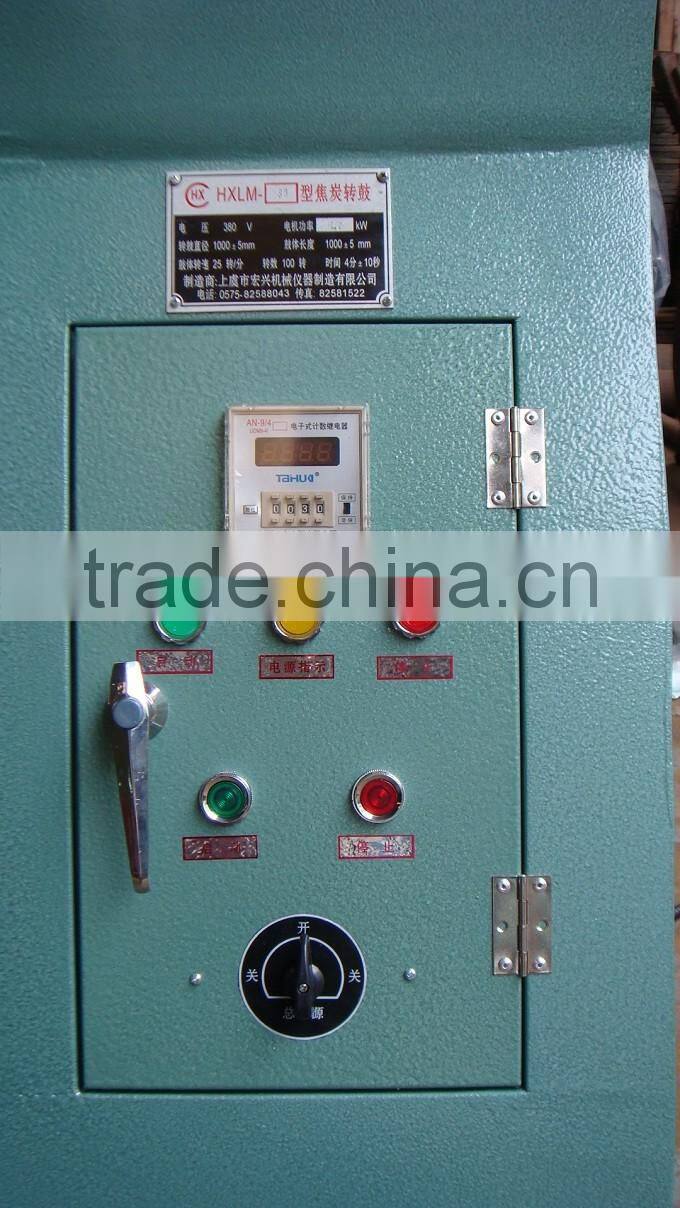

The instrument is mainly used to measure the crushing strength and abrasive resistance. It is a main machine used to measure the crushing strength (m40, m25) and wear resistance strength (m10) of metallurgical coke (GB/T2006-2008). The whole equipment has adopted integrated mechanical system. The rotating number of the revolving drum and the rotating time of the revolving drum could be counted and displayed automatically. It is a required testing instrument for the steel production of various coking plant.
Optional match
| |

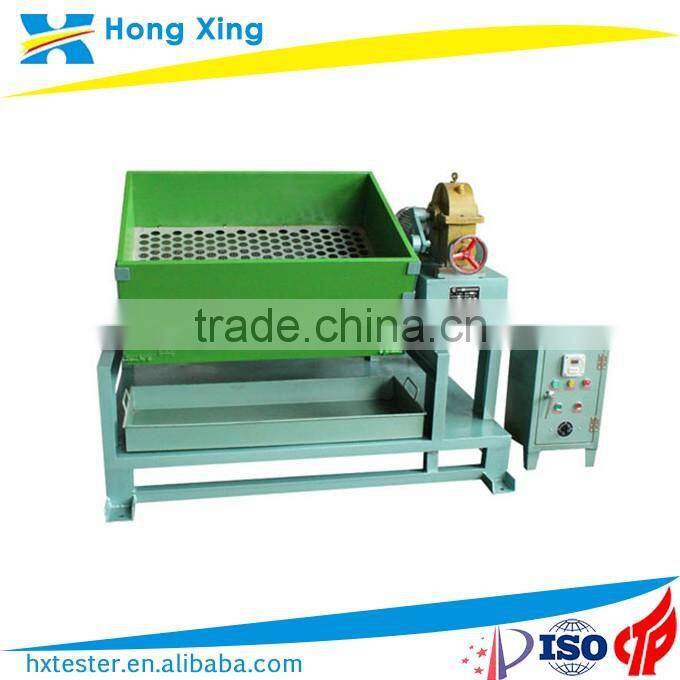

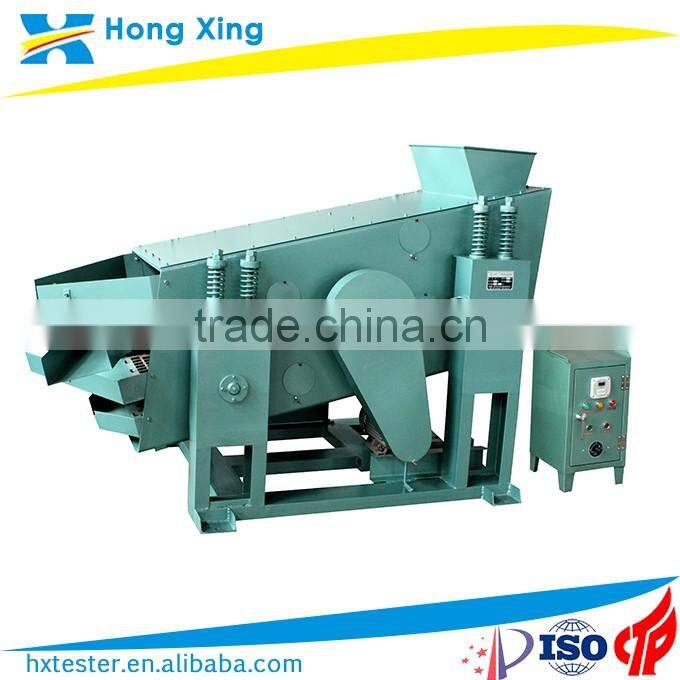

| HXAG - 2002 the former measuring into the drum sieve grouped into mechanical screen | HXAK - 98 drum after crushing strength and wear-resisting degree mechanical screen |
Similar Products
| | |
Our Catalogue
| Revolving drum | Pelletizer | Lime testing equipment | Drying Equipment |
| Crushing Equipment | Sampling and Sample Preparation Equipment | Sieving Equipment | Iron Ores Performance Testing Equipments |
| Coke, Coal, Carbon Testing Equipment | Steel Product Testing Equipment | Accessories |
If you have any interest in them, please contact us.
click here go to homepage
We have got ISO certificate for our main product to guarantee equipments quality, and we have a total of 34 national patents, including 5 invention patents, 28 utility model patents, 1 design patents
1.Shangyu Hongxing machinery equipment manufacturing Co.,Ltd,with more than 20 years history, we are one of the leading professional manufacturer of coal, coke, iron ore, steel testing equipment in China. We have got ISO certificate for our main product to guarantee equipments quality.
2.Our main products includes: iron ore testing equipment, coke testing equipment, steel testing equipment, drying equipment, crushing equipment , sampling and preparing equipment etc.
3.We have our own r&d team, according to the latest standards, through our own development software, realize the automation of equipment and computer control, to improve test efficiency and reduce human error.
4.Our advantages are providing professional testing process solution, complete set equipments and after-sale service for lab testing.
5.We are the iron ore and direct reduced iron standardization technical committee member units in China. Also, the national coal standardization technology committee member units in China.
6.main market is in Africa, southeast Asia, Asia, Middle East, etc.
We sincerely provide below services:
-Lab project processing consulting
-Do testing for coke, iron ore, steel processing in laboratory
-OEM is acceptable, Products can be customized according to customer requirements
-Help you to solve the problems during the equipment operation.
-Spare parts provided
-Dispatching engineer overseas guidance for equipments installation, testing equipments, training workers.
