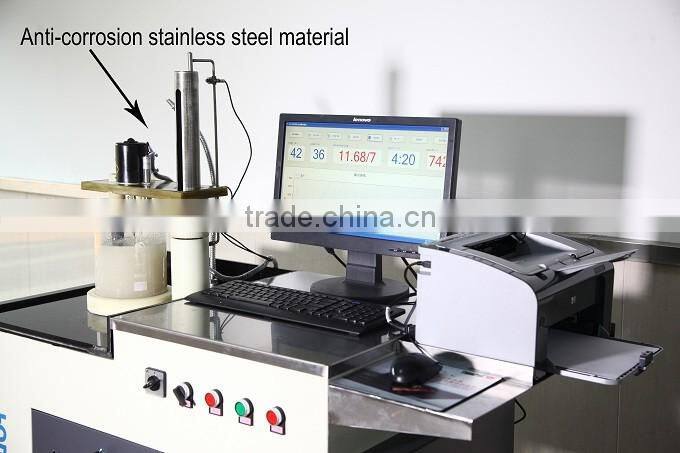

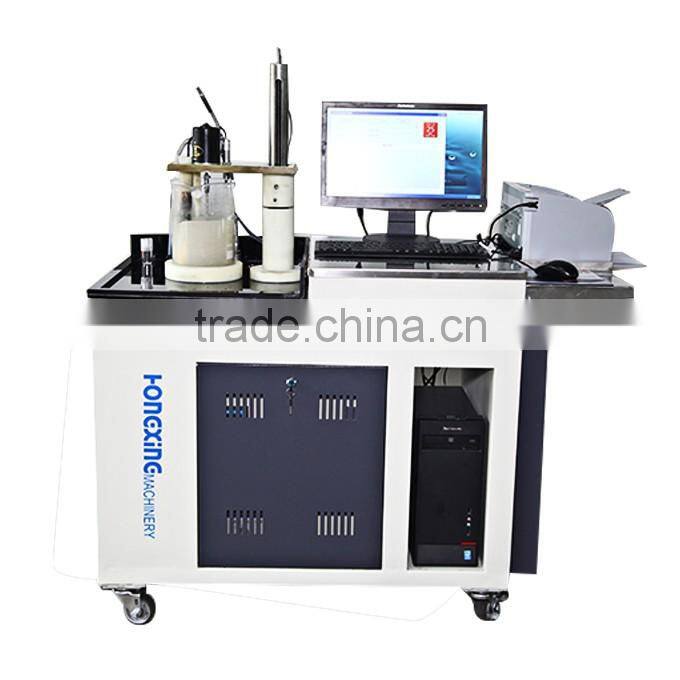

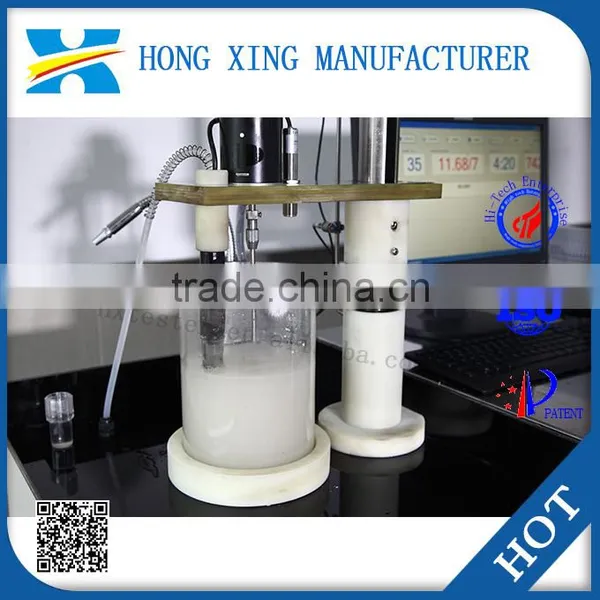

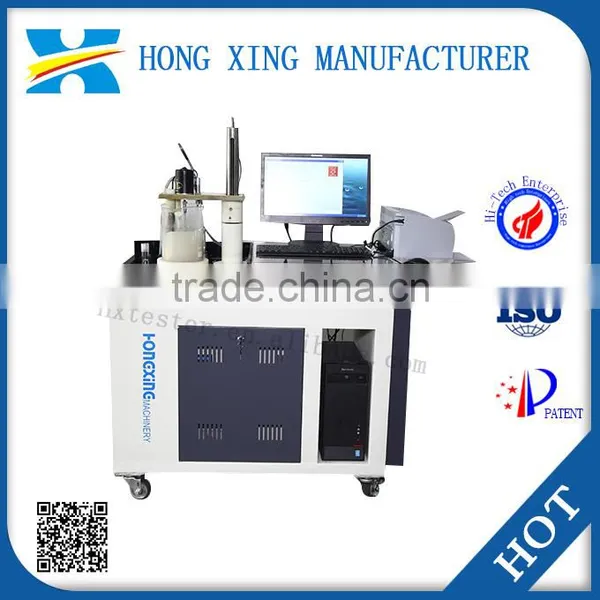

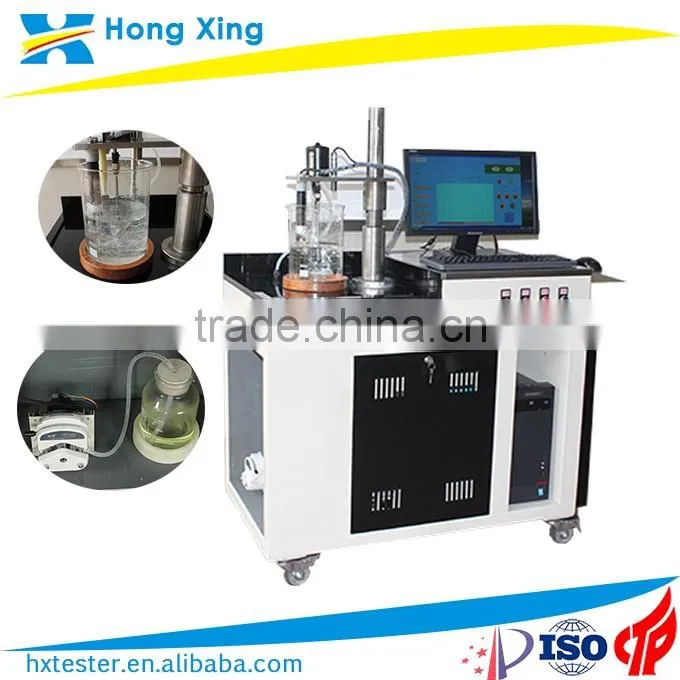

HXSH-1 500 w chemistry laboratory equipment

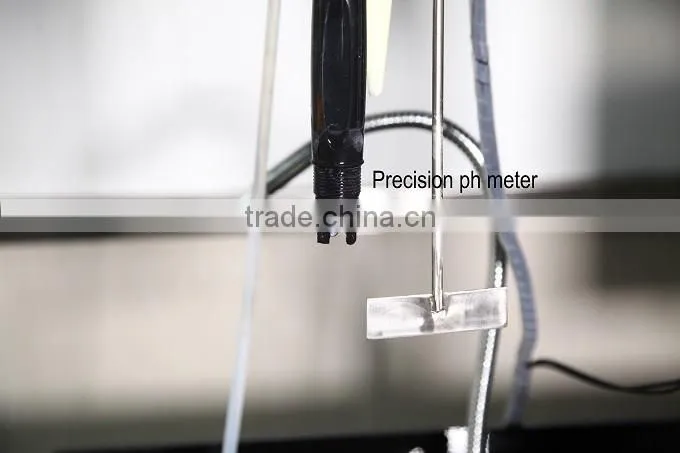

PH value detector | 0-14.00 PH, resolution 0.01 PH |
measuring accuracy | 0.5 mL |
mixer speed | 250-300 r/min |
Stirrer rod | diameter 6 x - 250mm |
Mixing blade | 0.5 x 10 x 60 mm, four fluorine material |
power | 500 w |
working voltage | AC220V+- 10%,50+- 5% |
Work environment | Work environment 5 ℃≤environment temperature≤40 ℃humidity≤85%, without a strong magnetic field, no violent vibration |
with constant temperature water | 42 ℃ |
Beaker water temperature | constant temperature device:42 ℃ + / - 1 ℃ |
This product had applied for national patent and meets the standard: YB/T105-2014(method of physical testing for metallurgical lime),our company participate in the drafting this standard.
Scan to view the video
Advantages:
1 | Using a combination of computer and PLC, samples after completion of loading, the automatic control test mode, test system and automatic testing ph value, according to the size of the ph value is controlled by PLC automatic metering pump to adjust the titration of acid, fully automated test process control, and automatic calculation value activity, after the test, automatic stop. |
2 | Dynamic display system by motion state, dynamic display the running state of PLC and the upper machine |
3 | Can network monitoring experiment process |
4 | parameter calibration can be modified |
5 | Can print historical data query |

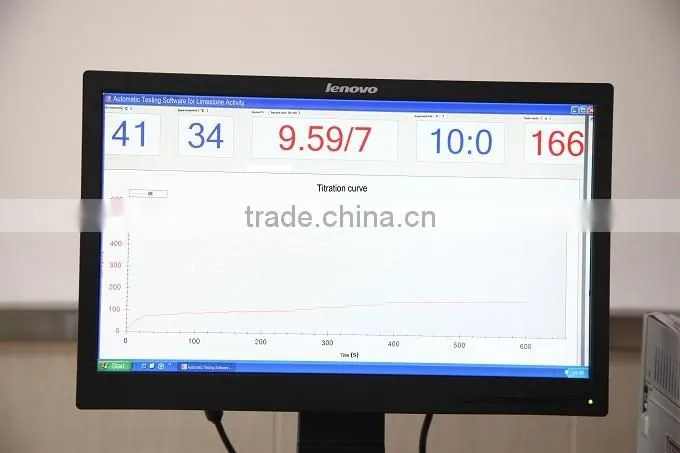

6 | statistical analysis of experimental results, automatically draw the curve |
7 | Testing process is convenient, accurate testing data values |
Similar Products
| | |
Our Catalogue
| Revolving drum | Pelletizer | Lime testing equipment | Drying Equipment |
| Crushing Equipment | Sampling and Sample Preparation Equipment | Sieving Equipment | Iron Ores Performance Testing Equipments |
| Coke, Coal, Carbon Testing Equipment | Steel Product Testing Equipment | Accessories |
If you have any interest in them, please contact us.
click here go to homepage

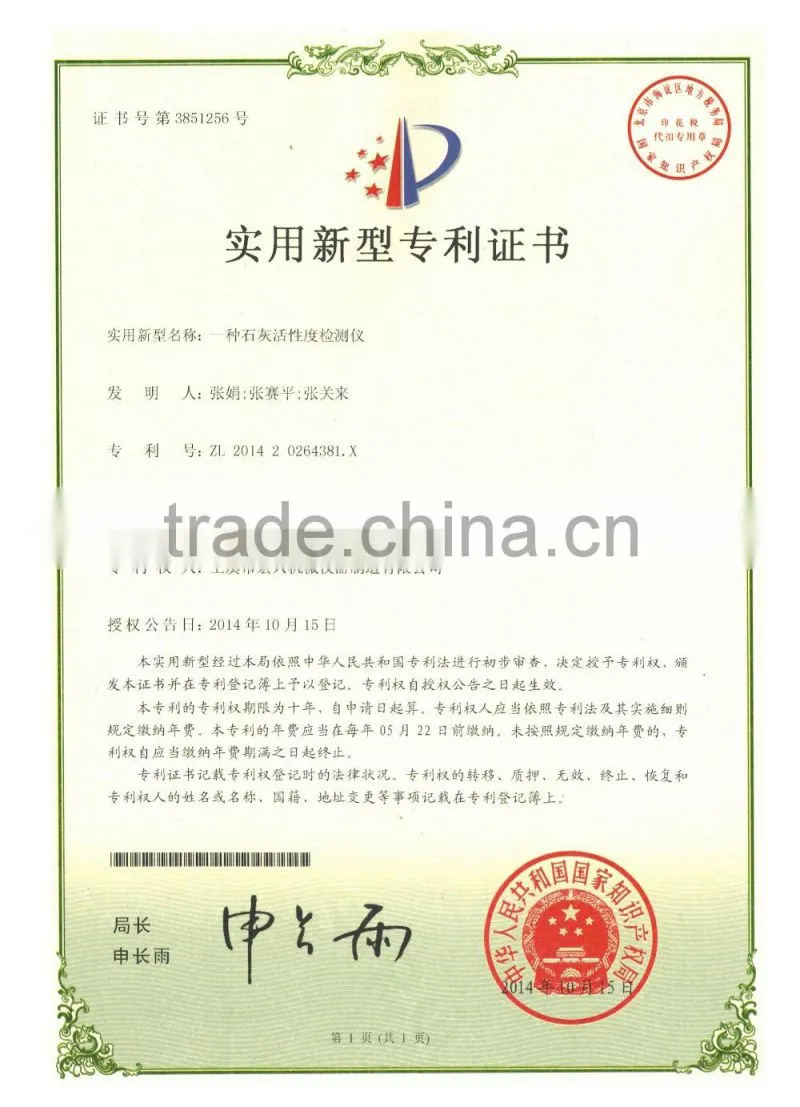

Patent: ZL201420264381X
We have got ISO certificate for our main product to guarantee equipments quality, and we have a total of 34 national patents, including 5 invention patents, 28 utility model patents, 1 design patents
Part of our customers:
Dongying huatai chemical group co., LTD
Lianyungang new iron and steel co., LTD
Fushun new steel co., LTD
1.Shangyu Hongxing machinery equipment manufacturing Co.,Ltd,with more than 20 years history, we are one of the leading professional manufacturer of coal, coke, iron ore, steel testing equipment in China. We have got ISO certificate for our main product to guarantee equipments quality.
2.Our main products includes: iron ore testing equipment, coke testing equipment, steel testing equipment, drying equipment, crushing equipment , sampling and preparing equipment etc.
3.We have our own r&d team, according to the latest standards, through our own development software, realize the automation of equipment and computer control, to improve test efficiency and reduce human error.
4.Our advantages are providing professional testing process solution, complete set equipments and after-sale service for lab testing.
5.We are the iron ore and direct reduced iron standardization technical committee member units in China. Also, the national coal standardization technology committee member units in China.
6.main market is in Africa, southeast Asia, Asia, Middle East, etc.
Q1.what is the test principle and the reactivity?
Test principle: firstly, hydrate a certain amount of lime and at the same time, with a certain concentration of hydrochloric acid neutralize calcium hydroxide which produced during the lime hydration process. From the beginning to the end, always in a state of agitation speed, the water temperature is keep 40+-1℃ and keep in the process of neutralization equivalent points. Accurate records the consumption of hydrochloric acid when at 10minutes
The reactivity: the number recorded is called lime reactivity.
Q2.What is the importance of lime reactivity?
Lime quality had a great influence on steelmaking process, and its performance is good or bad, directly related to the smelting time, smelting speed, the quality of the steel, steel scrap ratio and heat energy utilization coefficient and other indexes. In the metallurgical industry, refers to the activity of lime degrees it reactions with other substances in the slag. With lime in the slag melting rate. Thus test the characteristics of quick lime is one of the important projects of metallurgical experiments.
Q3.What the advantages of this product compare to manual measurement ?
The manual measurement widely used at present domestic lime activity, the standardization, including of human factors is more, lead to the determination results is not accurate, efficiency is low. And contact with acid fog, there will be a certain risk, this product can be a very good one to solve the above problems.
Q4.What is the practical significance of the lime reactivity ?
Steelmaking practice shows that active lime can improve 80% efficiency of dephosphorization and desulphurization, shortening time of smelting and at the same time within 3-5 min can completely reaction with acid in the liquid steel, and general lime reaction time must be at least 6-10 min. Also, furnace life can be extent by more than 40%, moreover, furnace burden of consumption also reduce 5-8 kg/t steel, with 10 million t calculate, save $15 million a year, the production efficiency is improved significantly.
We sincerely provide below services:
-Lab project processing consulting
-Do testing for coke, iron ore, steel processing in laboratory
-OEM is acceptable, Products can be customized according to customer requirements
-Help you to solve the problems during the equipment operation.
-Spare parts provided
-Dispatching engineer overseas guidance for equipments installation, testing equipments, training workers.
